Electromagnetic Anechoic Box /Shield Box Taurus Series MY1515

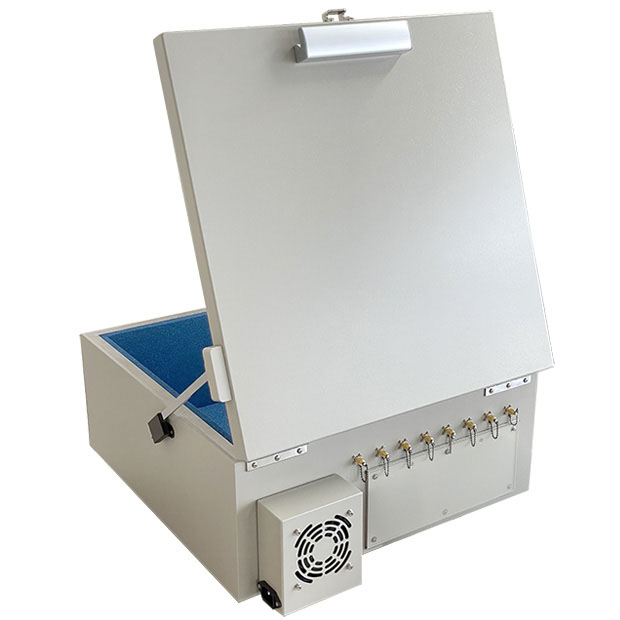

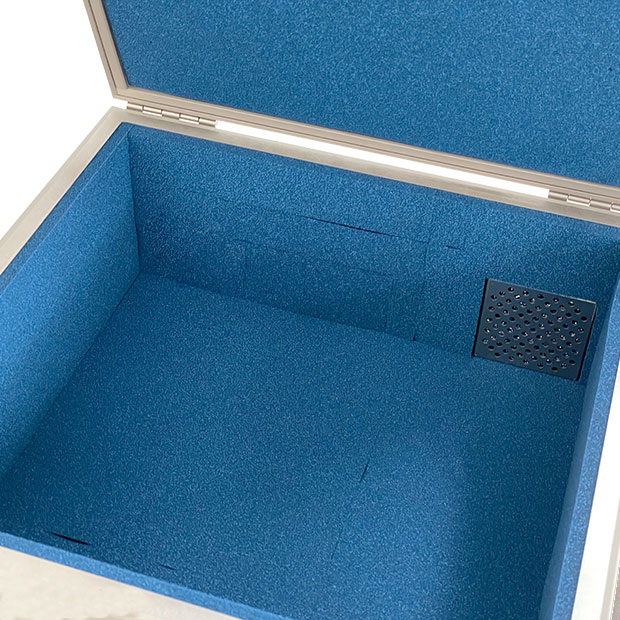

Exhaust fan/air intake mounted type. The heat rise inside the anechoic chamber is suppressed, providing an ideal test environment for long hours of continuous operation, such as aging tests.
Specification
| Model | MY1515 |
|---|---|
| Outside Dimensions | 465(W)×214(H)×465(D)mm |
| Inside Dimensions | 400(W)×150(H)×400(D)mm |
| Weight | 10kg |
| Shielding Characteristics(typ) | more than 70dB@2 .4GHz |
| Reflection Loss | more than 20dB（MYA-75:≧2.4GHz） |

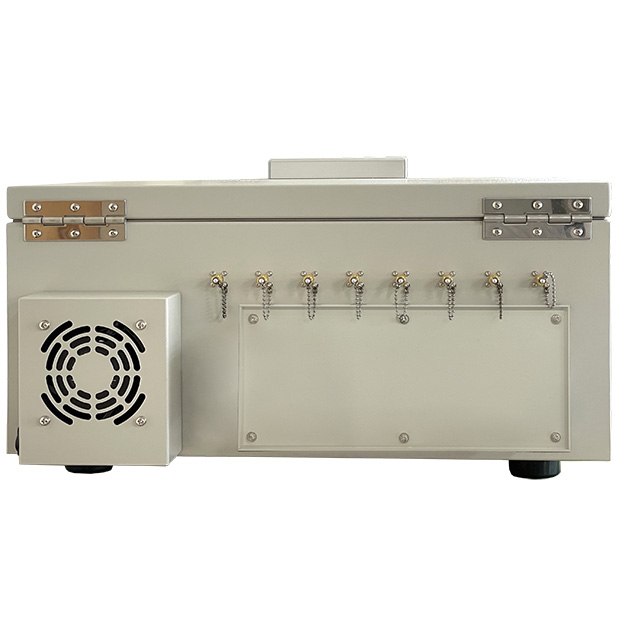

| AC Fan | 0.56m³/min(the maximum force of the wind) |
| Connectors | 8 pcs of SMA（back） |

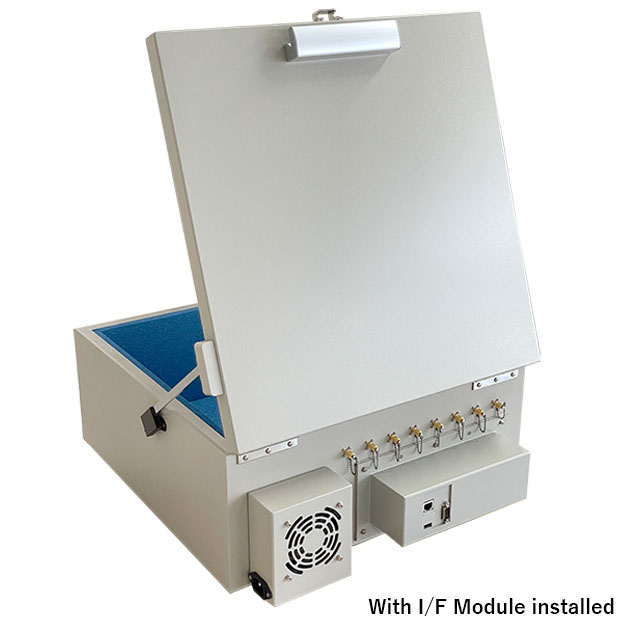

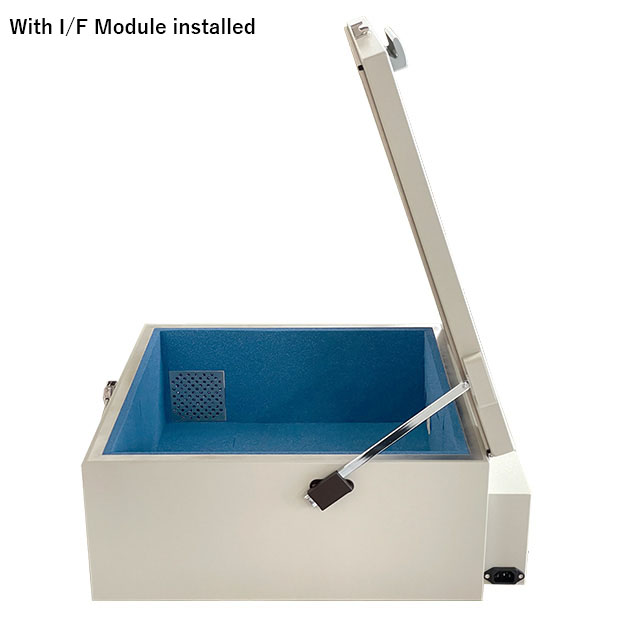

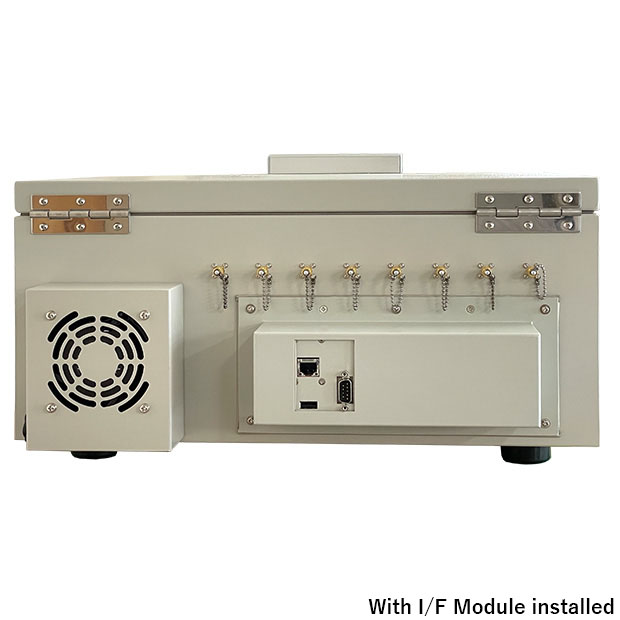

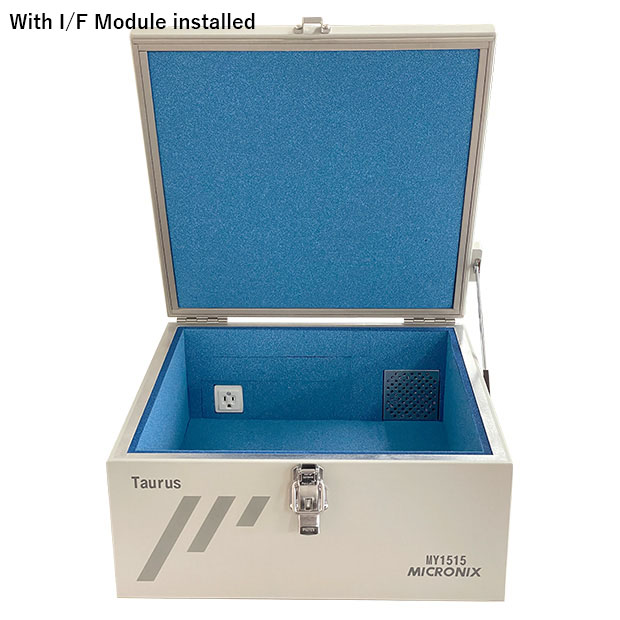

| I/F Module installation capacity | 1 module（back） |
| Option | I/F Module |
※Dimensions exclude protrusions, etc. Weights do not include IF modules. Dimensions and weight are approximate.
