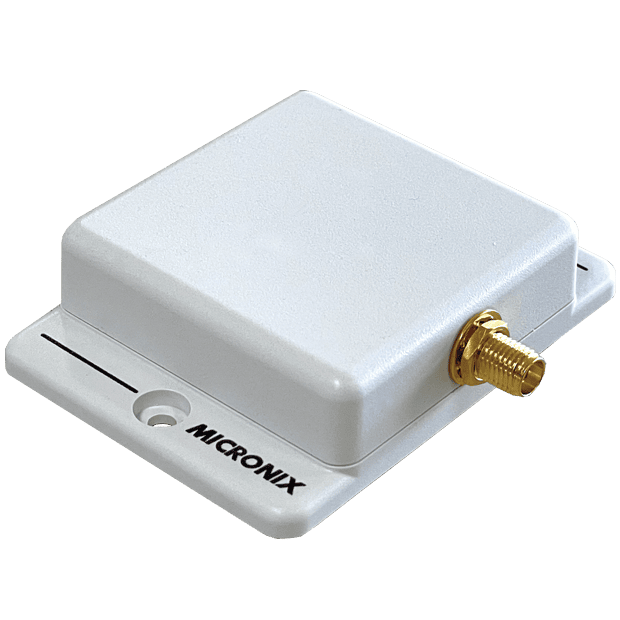

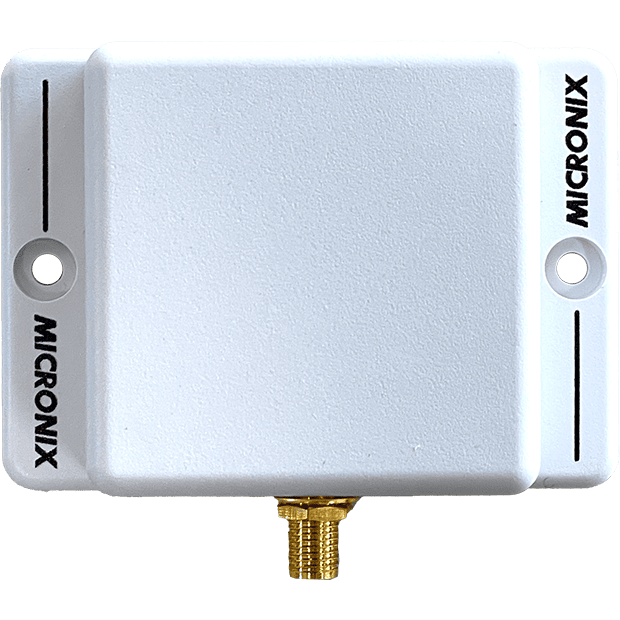

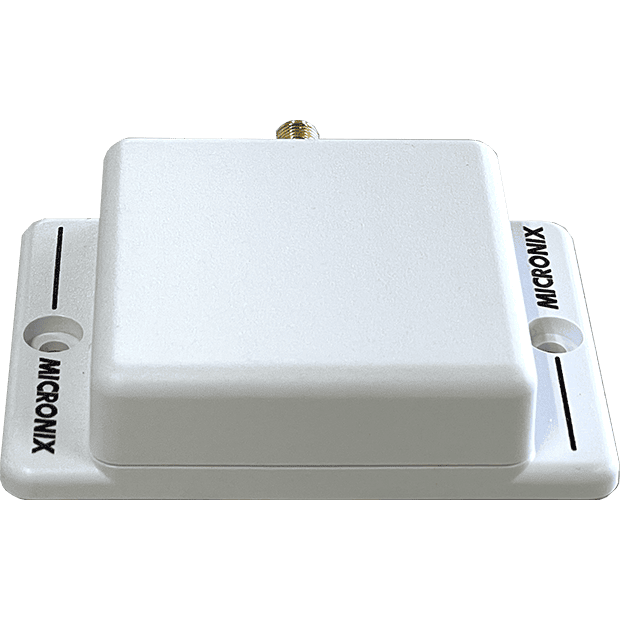

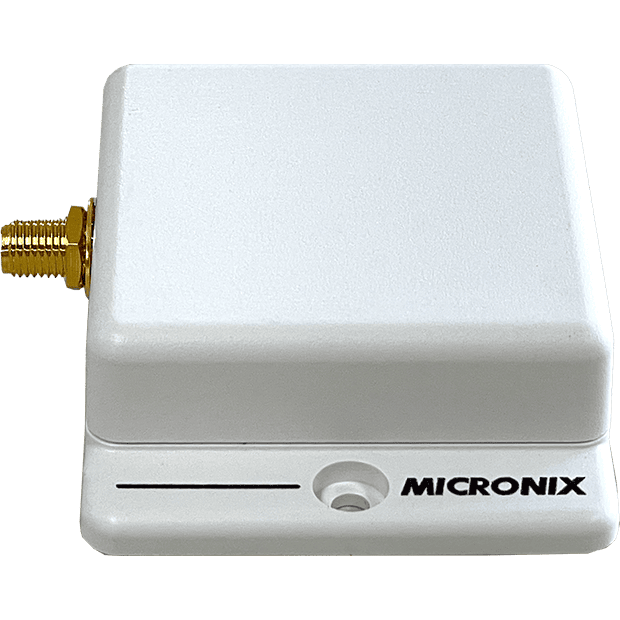

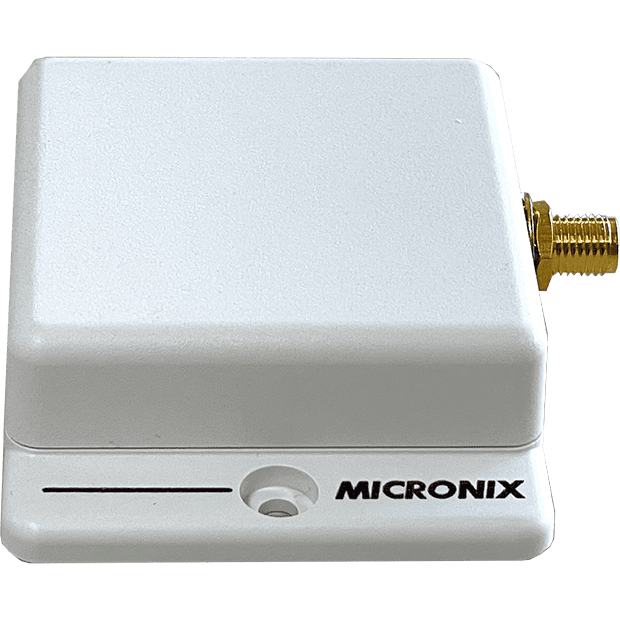

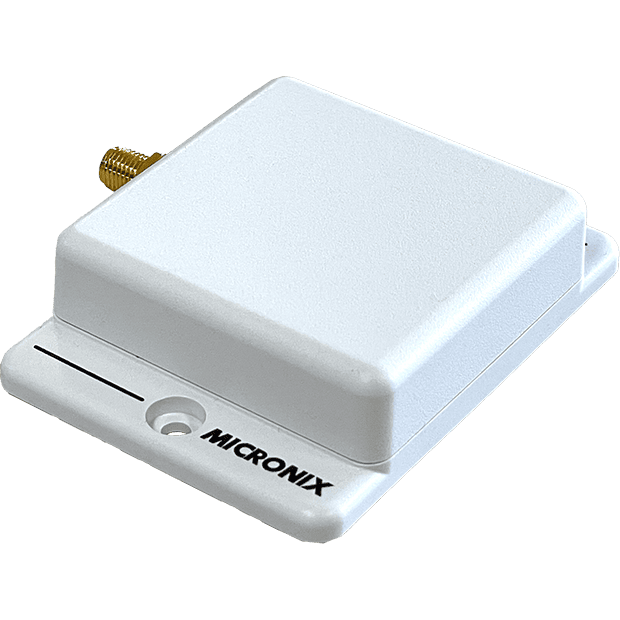

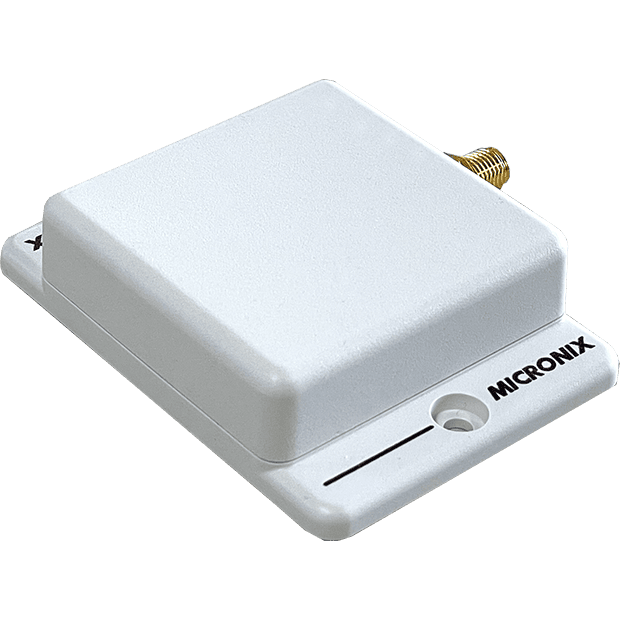

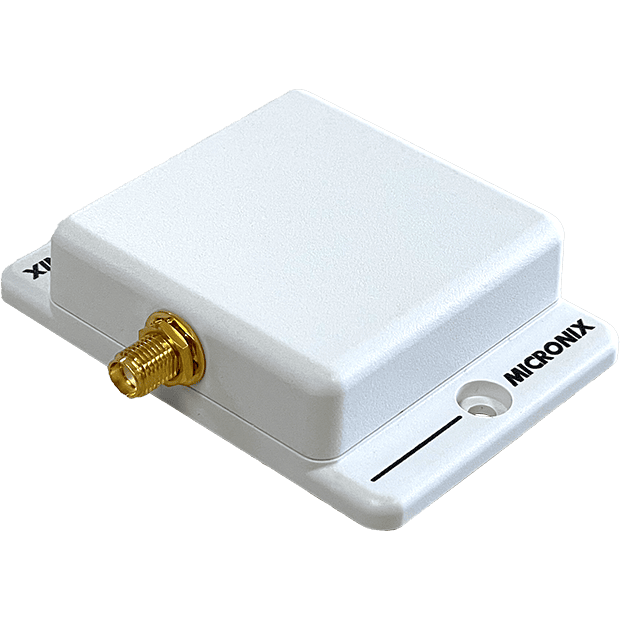

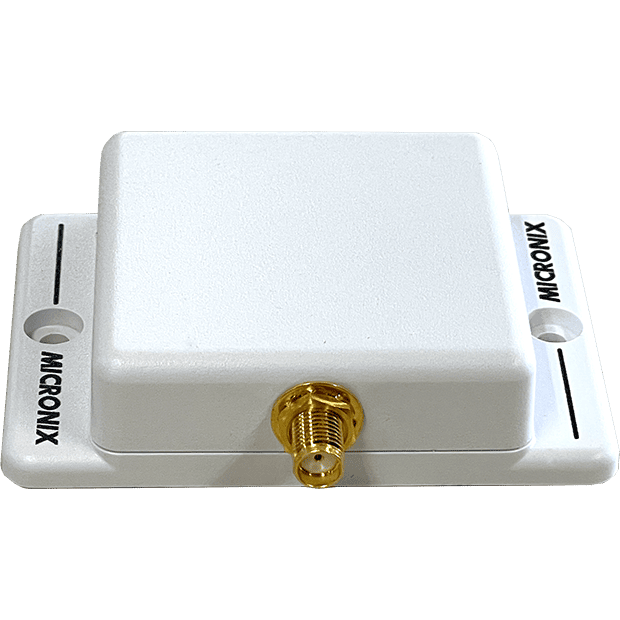

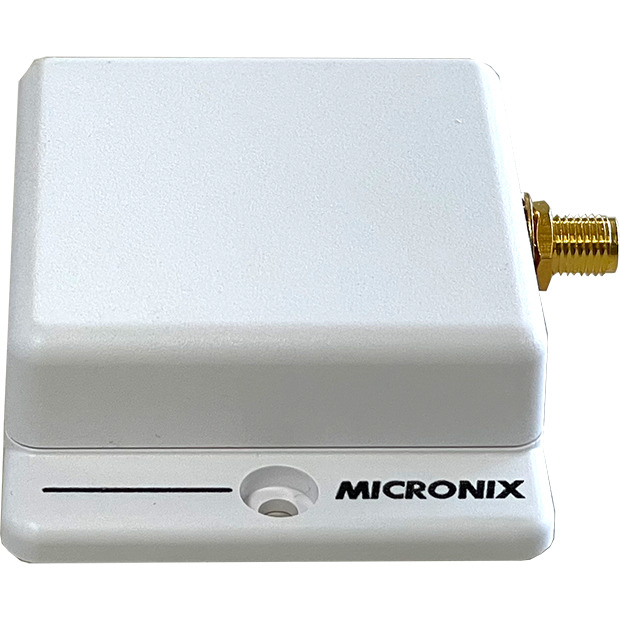

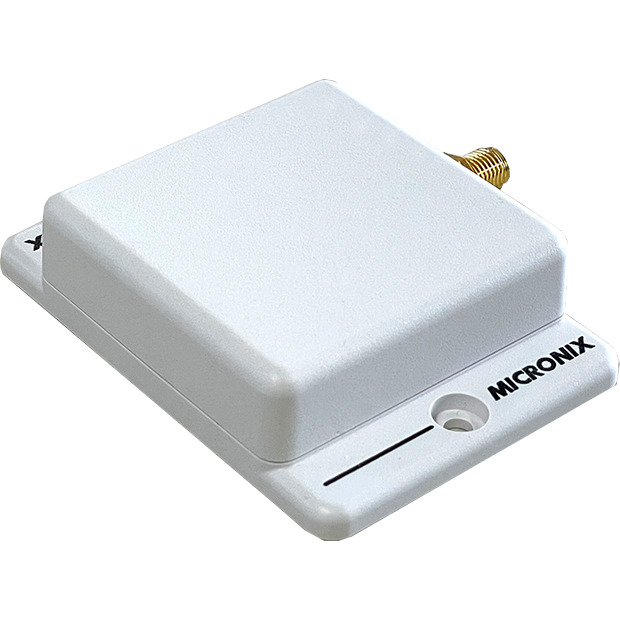

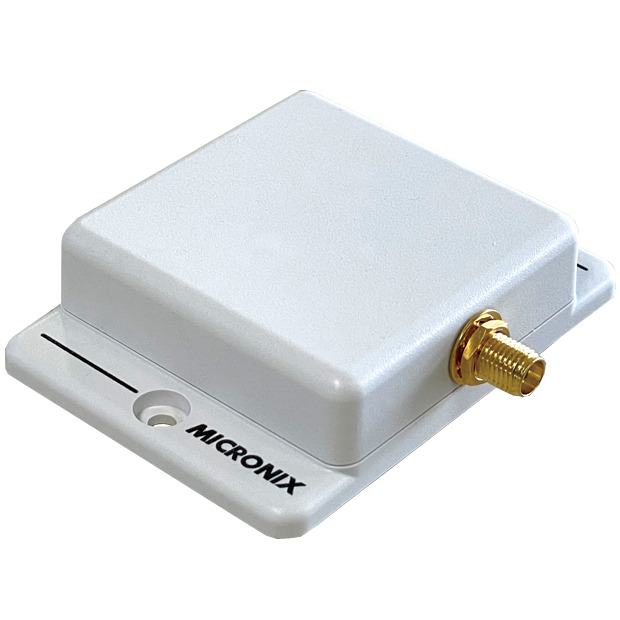

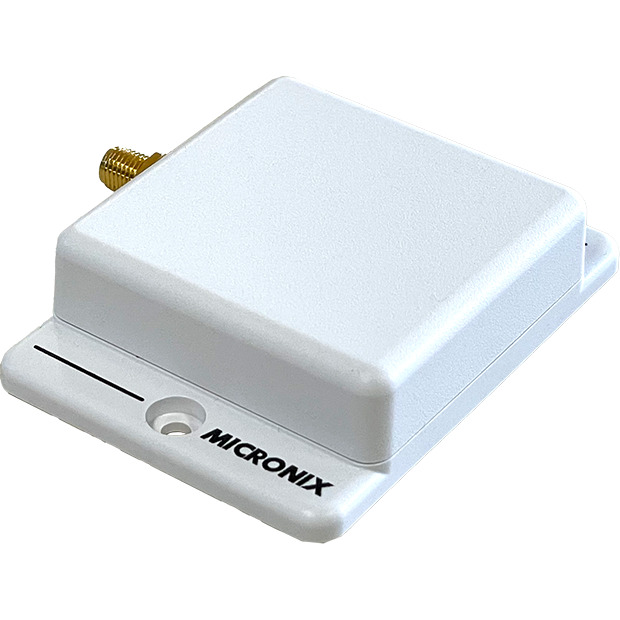

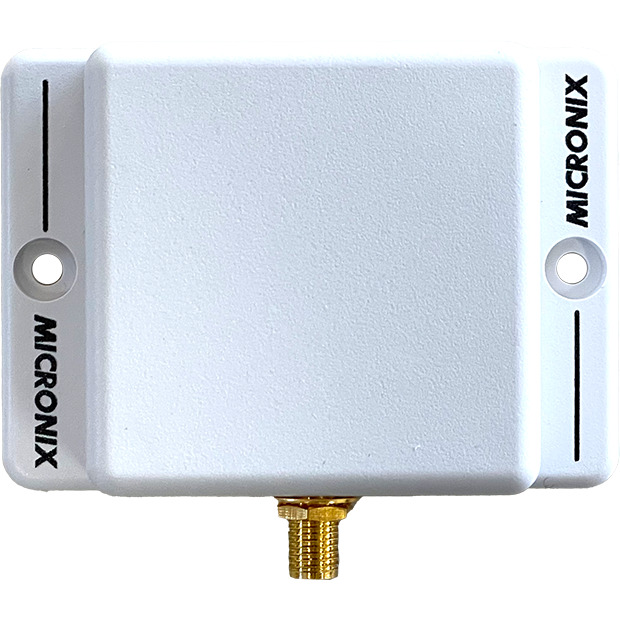

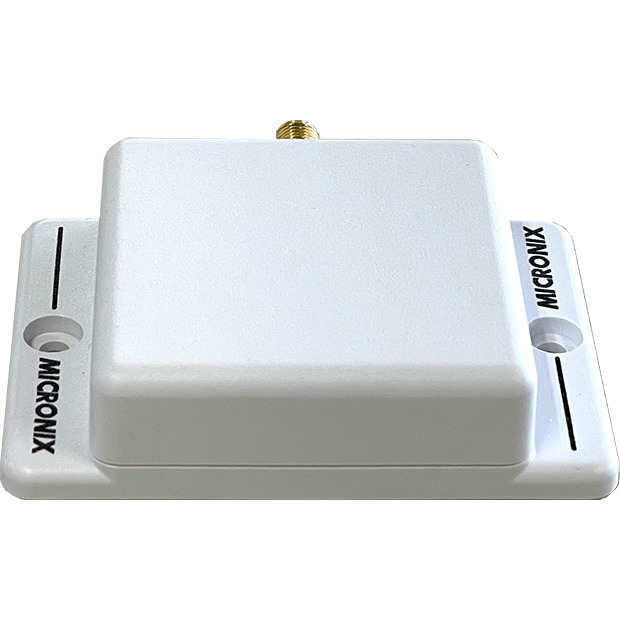

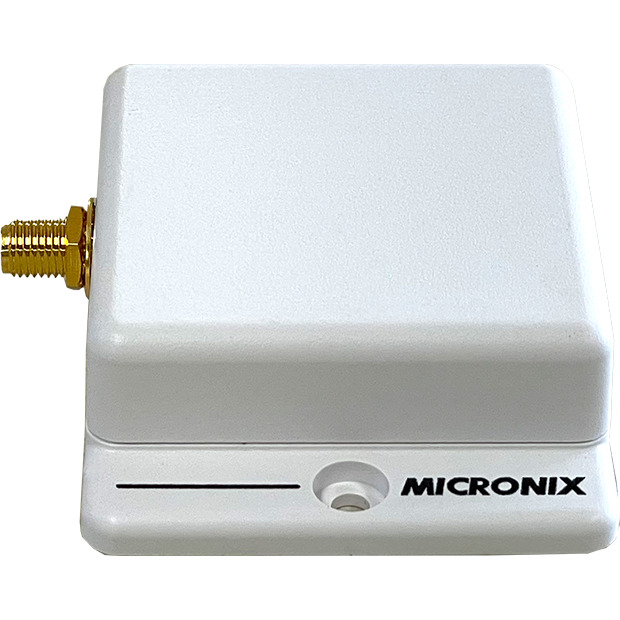

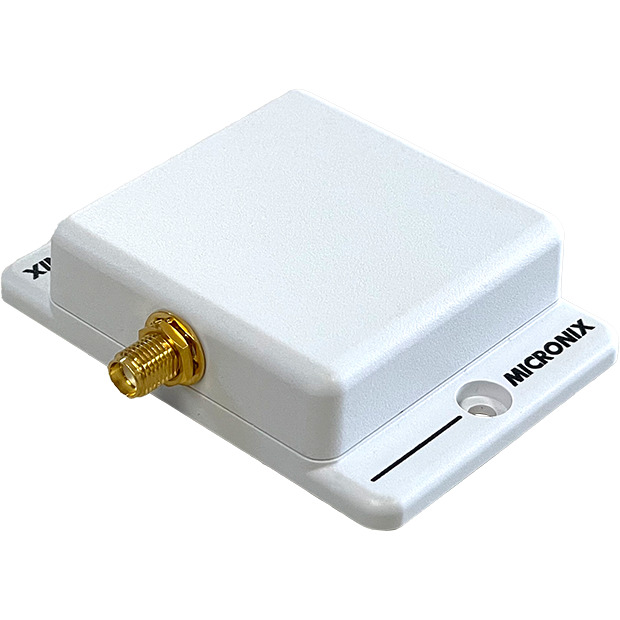

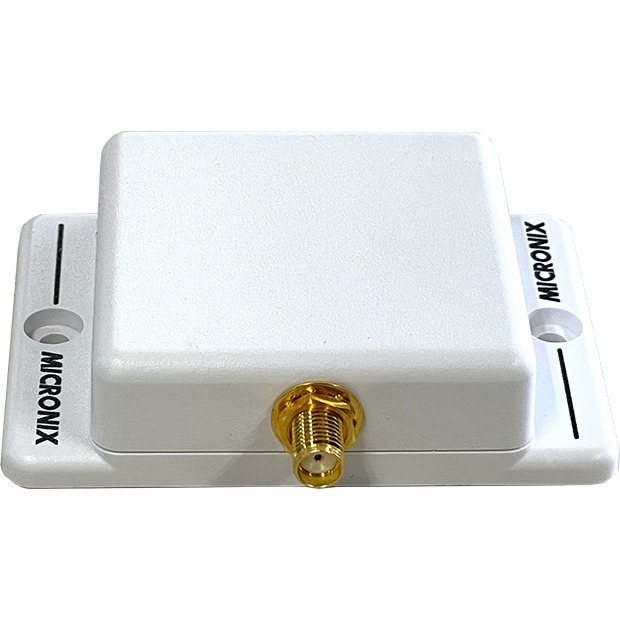

Antenna Coupler MAN201
■A compact, wideband antenna coupler covering 300MHz to 9.5GHz.
■Can be integrated into a desktop-sized anechoic box.
■When performing RF inspections of wireless devices (DUTs), it simplifies DUT positioning, which ensures high measurement repeatability.
Specification
| Frequency range | 0.3 to 9.5GHz |
|---|---|
| Max. Input Power | 5W |
| Impedance | 50Ω |
| VSWR | ≦ 2.0（Return loss ≦ -10dB) |
| Connector | SMA-J |
| Dimensions | 50.4×70.4×17[mm]（Dimensions exclude protrusions） |
| Weight | ≦ 60g |
| Storage temperature and humidity | ・Temperature：-10～50℃ ・Humidity：≦ 70% RH |
Application
- 4G/5G mobile communication systems
- ISM band (2.4GHz): Wi-Fi, Bluetooth, etc.
- ISM band (5.8GHz): Wi-Fi, DSRC (ETC), etc.
- Sub-gigahertz (920MHz): LPWA, SigFox, LoRaWAN, etc.
- GPS, GNSS, etc.
- Low-power radio (specific low-power radio): TPMS, keyless entry, etc.
Performance data (Return loss)
Jig for Antenna Coupler MAN201 (Optional)
We offer dedicated jigs that can be installed in our anechoic boxes (the 7 models listed below).
Large Jig・MAN201-JIGL
Applicable Anechoic Boxes：MY1515・MY1520・MY2520・MY3720

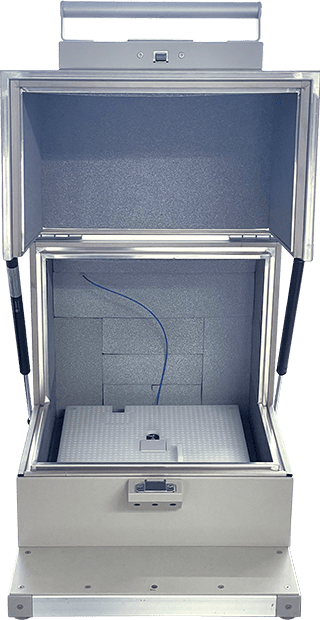

【MY2520】
You can choose from three locations ○ for the antenna coupler.
Additionally, since the jig can be rotated by 90 degrees, there are a total of nine possible positions for the antenna coupler.
Image when a 14-inch tablet is placed.
Target anechoic box
Electromagnetic Anechoic Box /Shield Box Taurus Series MY1515
Type equipping with exhaust fan and intake.
Exhaust fan/air intake mounted type. The heat rise inside the anechoic chamber is suppressed, providing an ideal test environment for long hours of continuous operation, such as aging tests.
Electromagnetic Anechoic Box /Shield Box Taurus Series MY1520
Medium size : The most general and universal type.
The front opening makes it very easy to work with.
Electromagnetic Anechoic Box /Shield Box Production line type MY2520
It is just the size that fits the A4 size product. Support a wide range of applications and reduce equipment costs.
Electromagnetic Anechoic Box /Shield Box Hand-in type MY3720
Suitable for weak electric field resistance test, out-of-service test or digital forensics for smart phone, tablet terminal or mobile PC .
Small Jig・MAN201-JIGS
Applicable Anechoic Boxes：MY1510・MY2510・MY3710

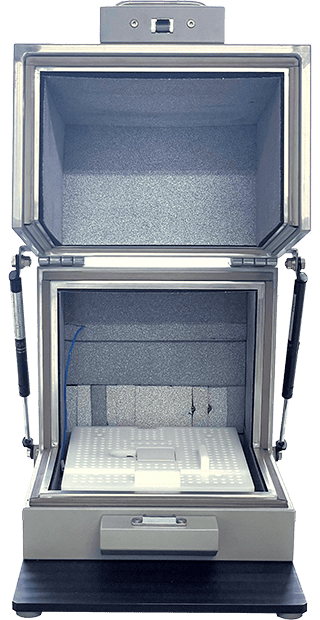

【MY2510】
You can choose from ｔwo locations ○ for the antenna coupler.
Additionally, since the jig can be rotated by 90 degrees, there are a total of ｆive possible positions for the antenna coupler.
Image with a smartphone placed
Target anechoic box
Electromagnetic Anechoic Box /Shield Box Taurus Series MY1510
Small size : Portable and light weight type.
Low price, Light weight, Short delivery.
High quality and reliability the testing and measuring instruments manufacturer offers.
Electromagnetic Anechoic Box /Shield Box Production line type MY2510
Compact electromagnetic anechoic box for production linessuch as radio equipment, terminal and module.
Electromagnetic Anechoic Box /Shield Box Hand-in type MY3710
Suitable for evaluation of devices such as cellular phone, smart-phone, tablet terminal and portable game machine with wireless communication function.
Jig Set Contents
- Floor Plate x 1 (with support post)
- Guide Block x 2
- Coaxial Cable x
- Hex Wrench x 2 types
Please feel free to contact us.
If you want to verify 5G, customize a radio wave shield box, or need product repair, please do not hesitate to contact us about any small matter.
