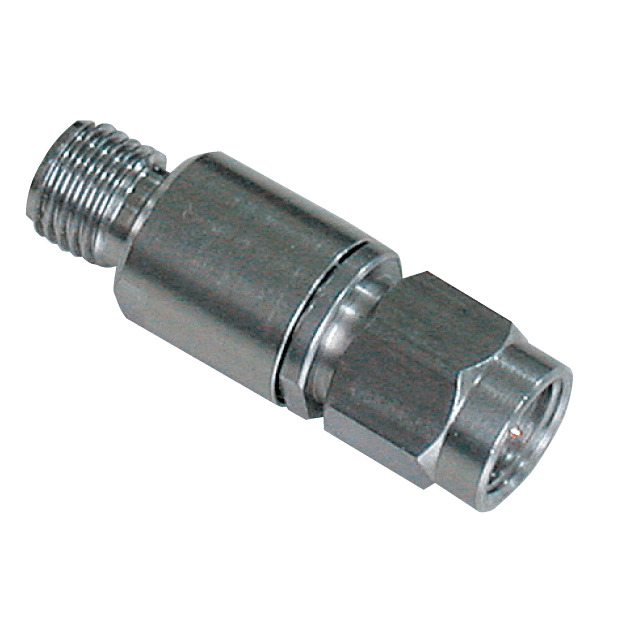

Coaxial Attenuator MG-XXdB
Product Description
*Connectors, Impedance:SMA(P)/SMA(J), 50Ω
| Model | Attenuation error | VSWR | Rated power | |
|---|---|---|---|---|
| DC to 12.4GHz | 12.4GHz to 18GHz | |||
| MG-1dB, 2dB, 3dB, 4dB | <±0.5dB | <±1dB | <1.15@DC to 4GHz <1.2@4 to 12.4GHz <1.3@12.4 to 18GHz | 1W |
| MG-5dB, 6dB, 7dB, 8dB | <±0.7dB | <±1.2dB | ||
| MG-9dB, 10dB, 12dB, 13dB | <±1.0dB | <±1.25dB | ||
| MG-14dB, 15dB, 20dB | <±1.2dB | <±1.3dB | ||
| MG-30dB | <±1.2dB@DC to 8GHz | <1.2@DC to 8GHz | ||
