Electromagnetic Anechoic Box /Shield Box Taurus Series I/F Module

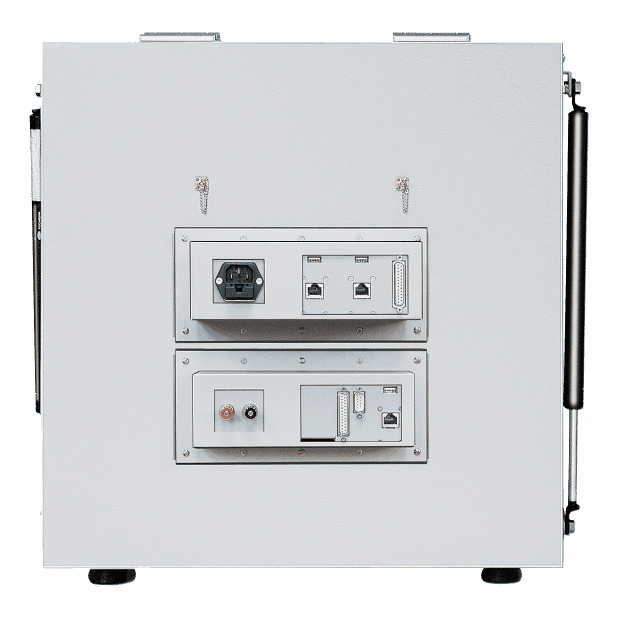

The I/F module is a module on which AC supply, DC supply, LAN, USB, SMA, BNC, N, D-sub or through pipe connectors are mounted. The I/F modules can be selected according to the intended use.

Download catalog

1. Specification
1.1. For Taurus, MY2500 and MY3700 series (except MY1525)
1.2. Available for only MY1525
2. Product Gallery

Specification

The I/F module is a module on which AC supply, DC supply, LAN, USB, SMA, BNC, N, D-sub or through pipe connectors are mounted.
The I/F modules can be selected according to the intended use.

For Taurus, MY2500 and MY3700 series (except MY1525)

Option	Mounted Connectors

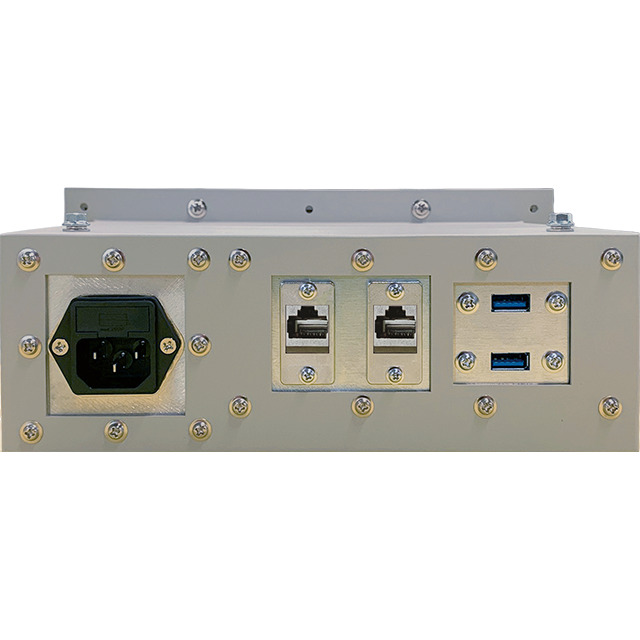

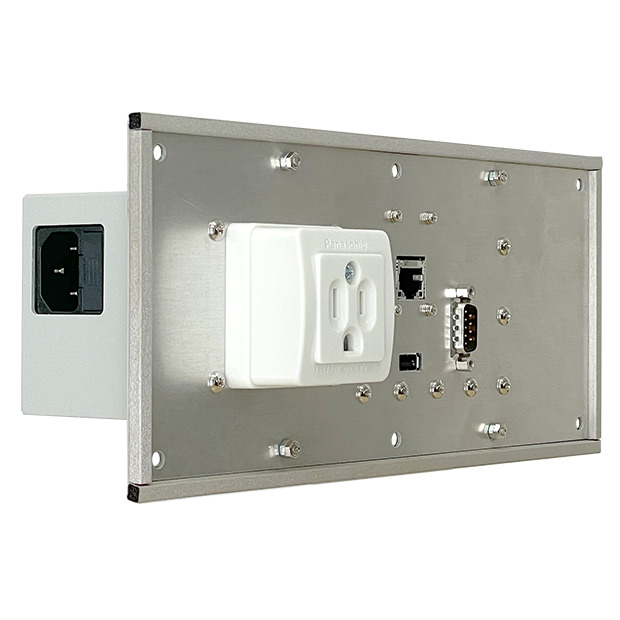

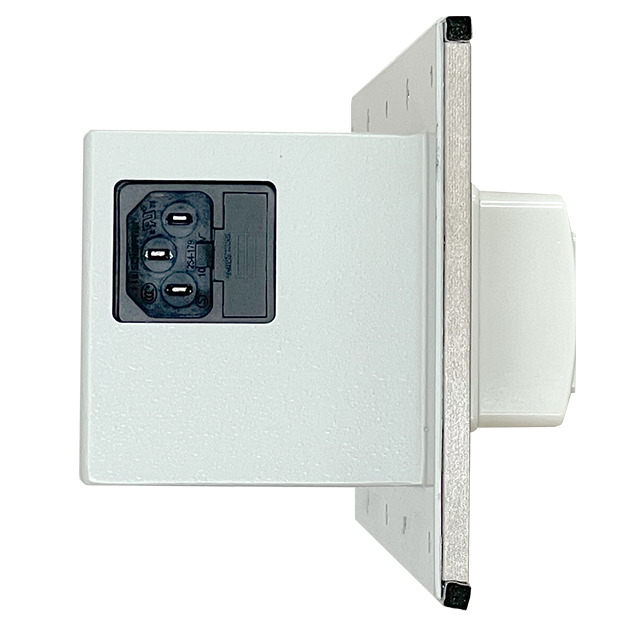

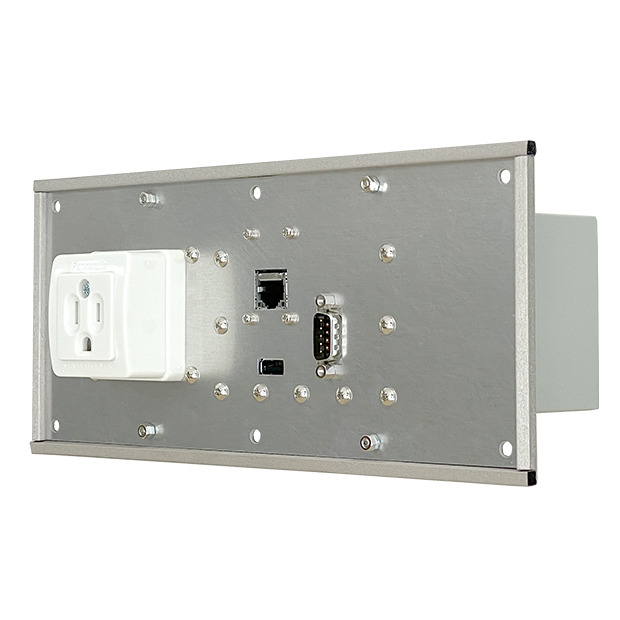

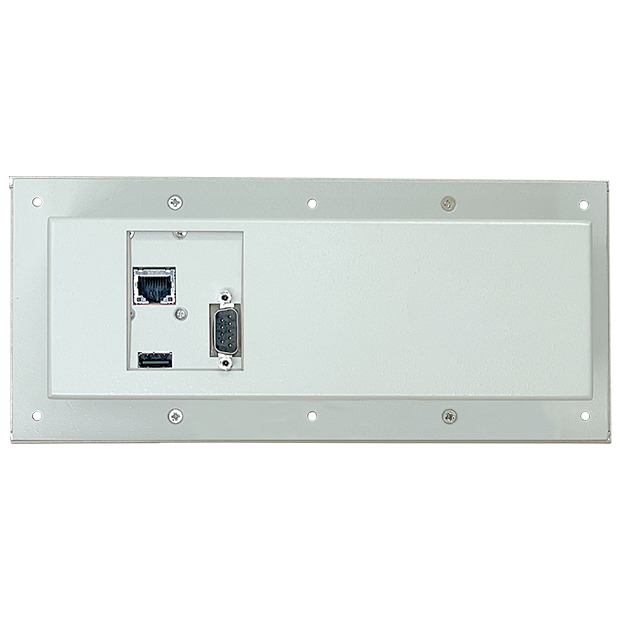

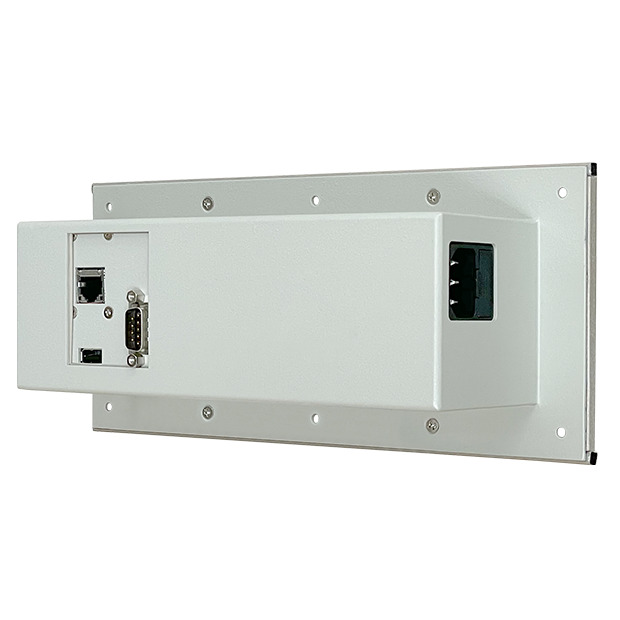

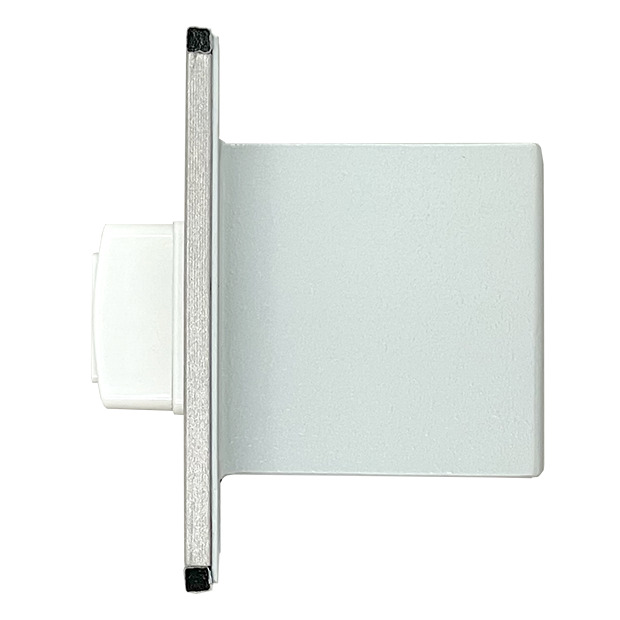

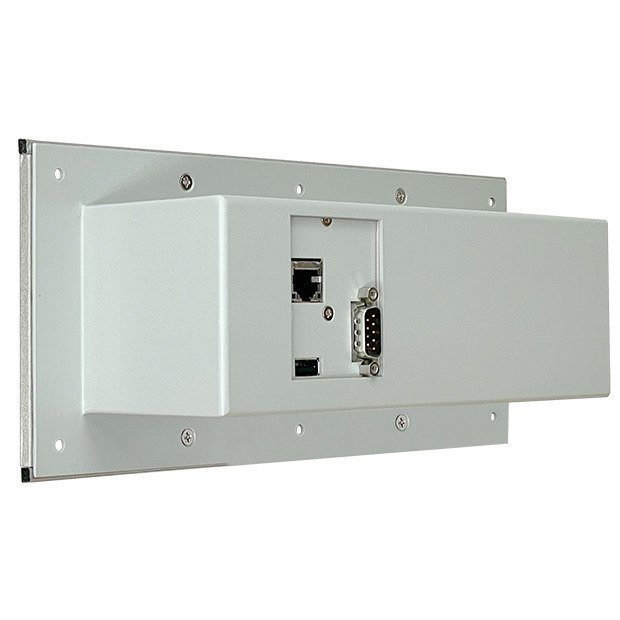

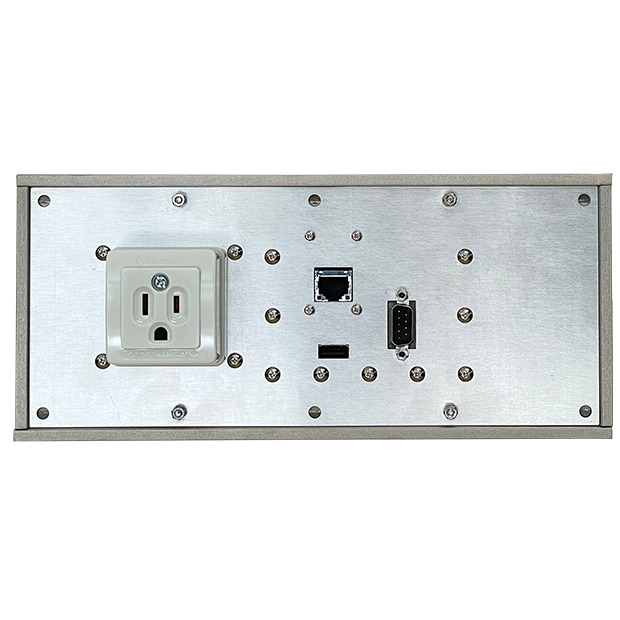

IFM1	AC(1pc)、LAN ^※1 (1pc)、USB^※3(1pc)、D-sub9^※5(1pc)

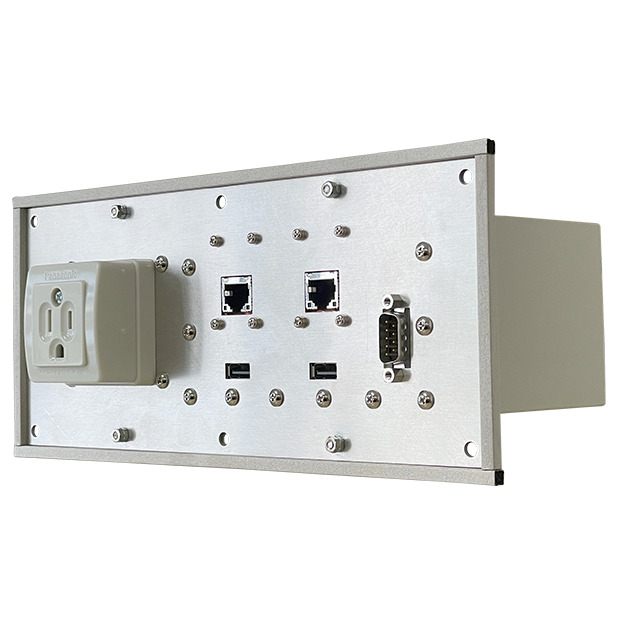

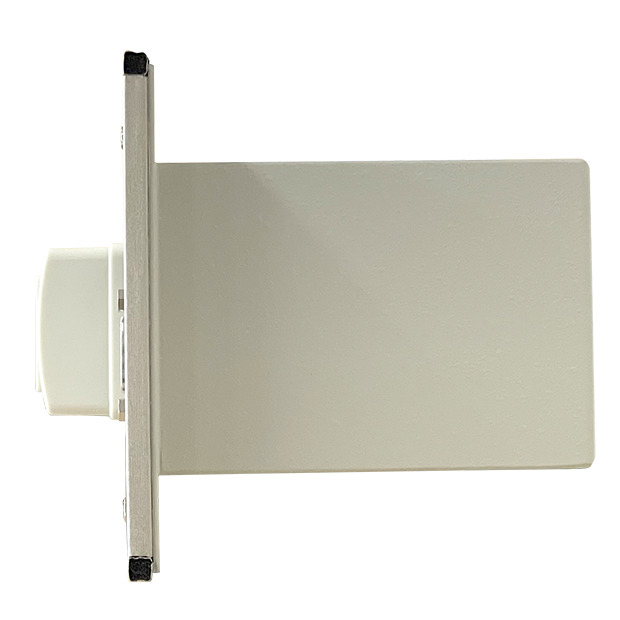

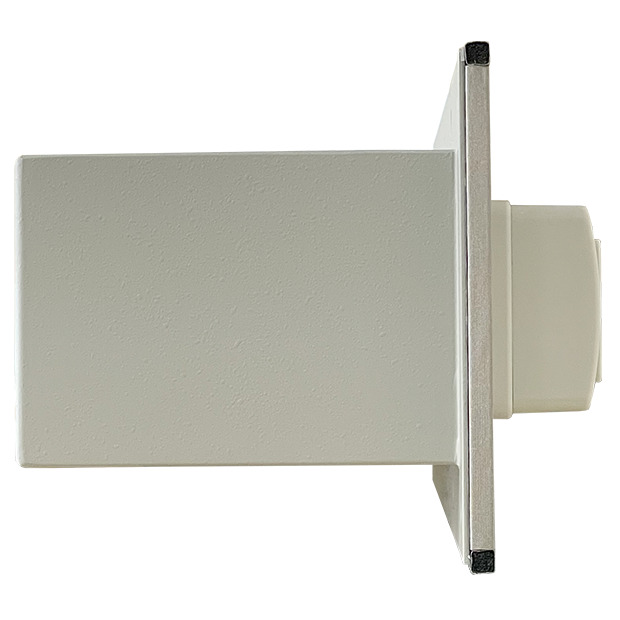

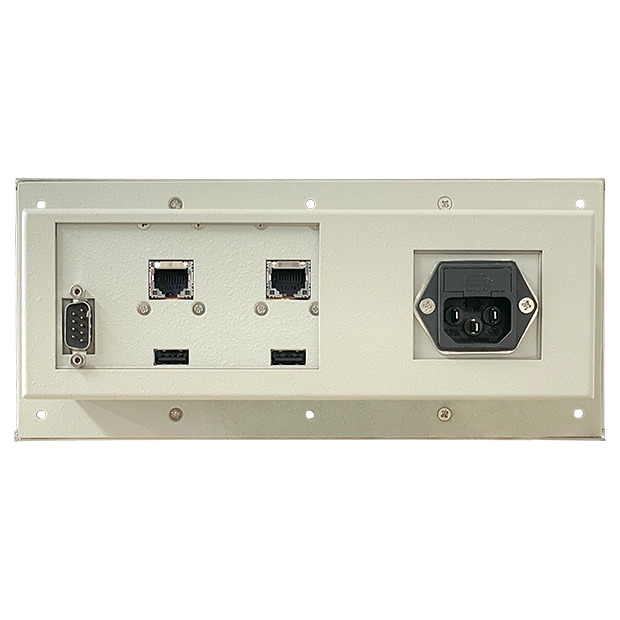

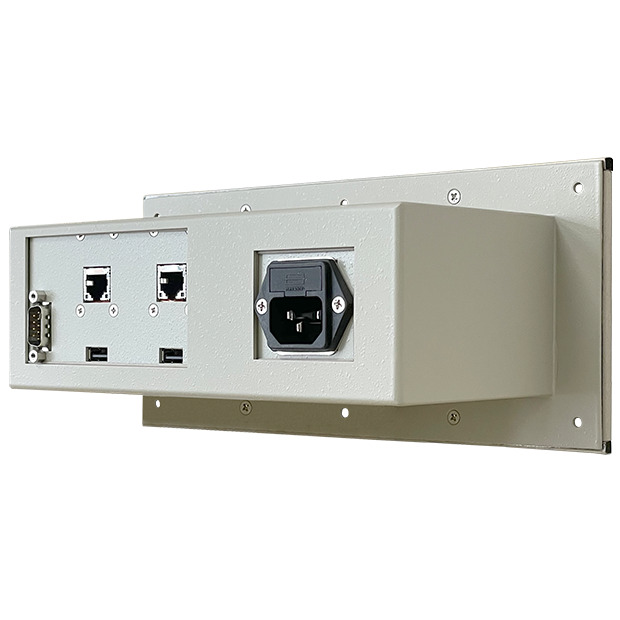

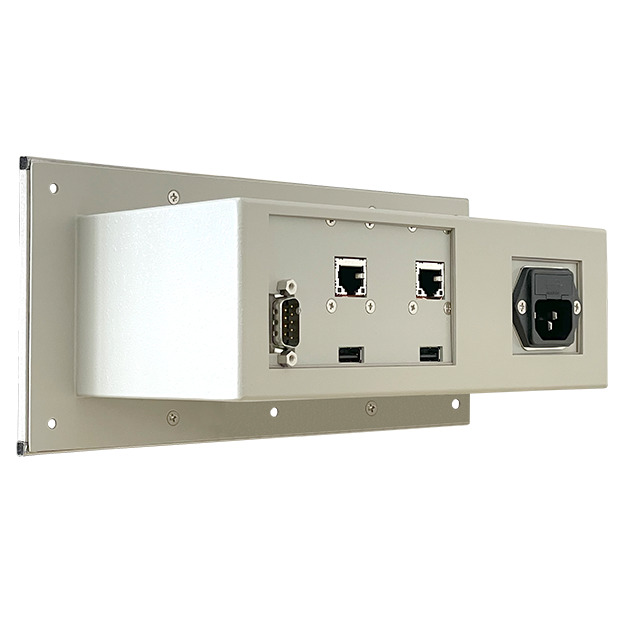

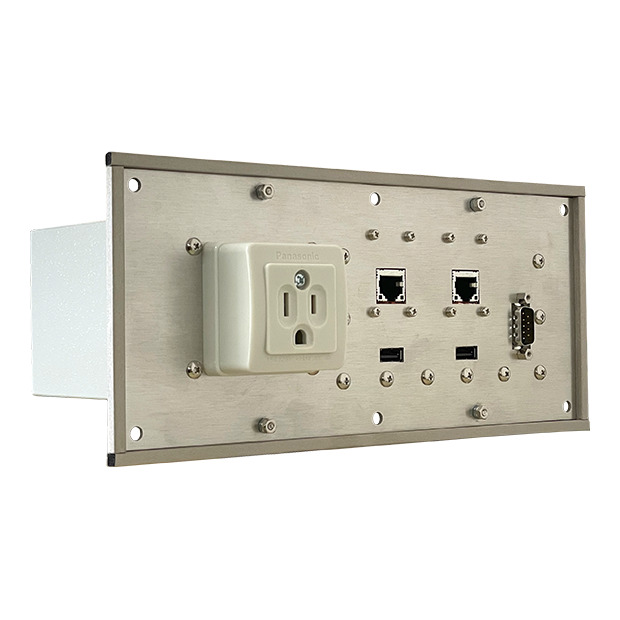

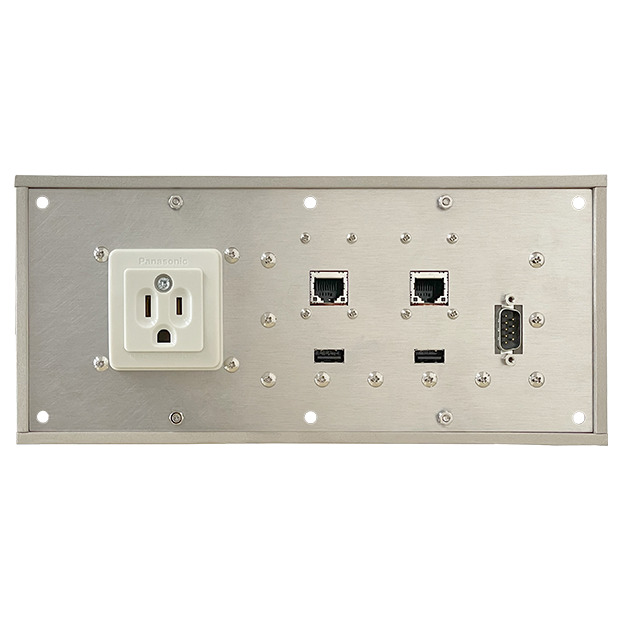

IFM2	AC(1pc)、LAN^※1(2pcs)、USB^※3(2pcs)、D-sub9^※5(1pc)

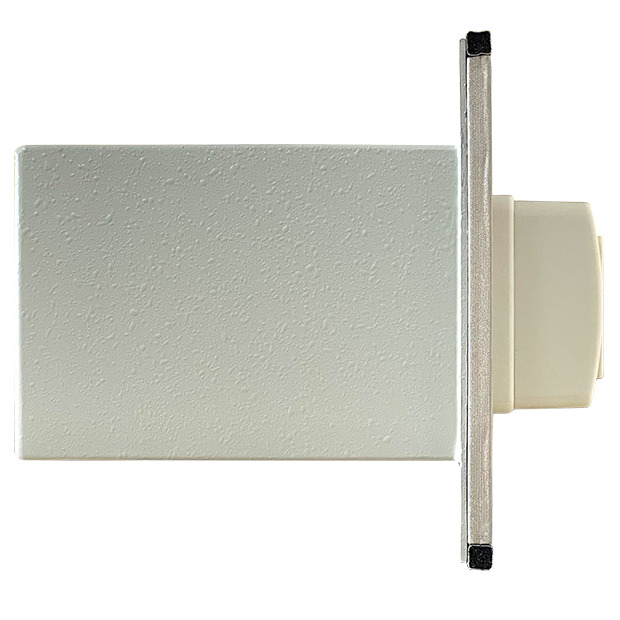

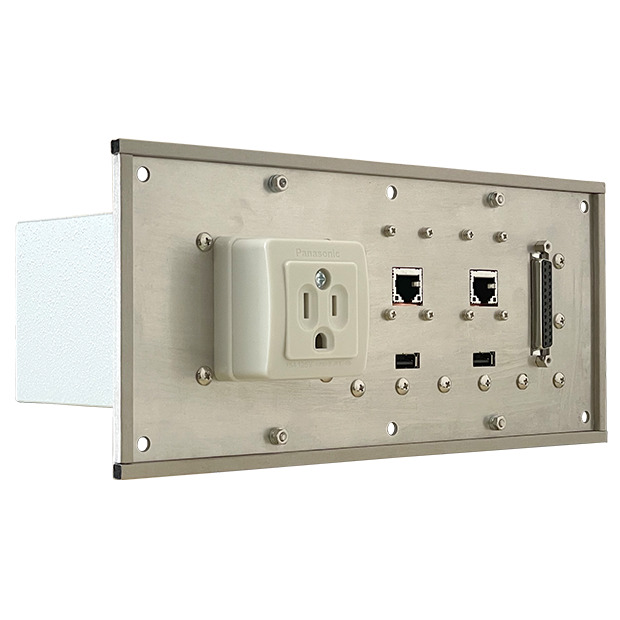

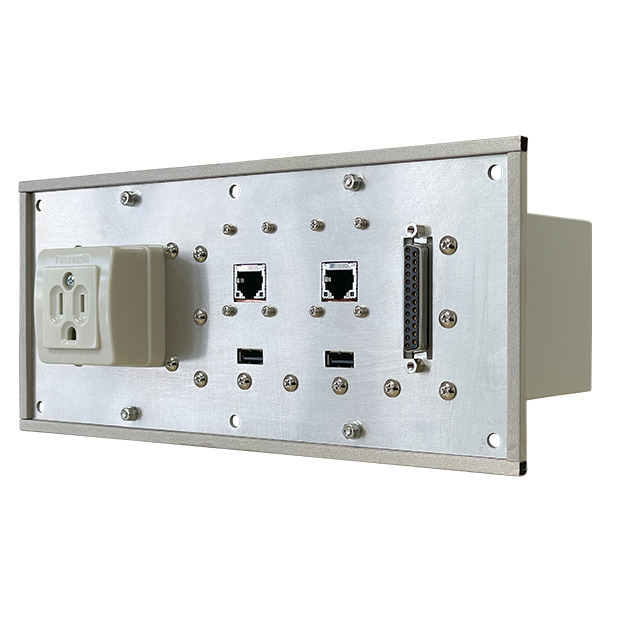

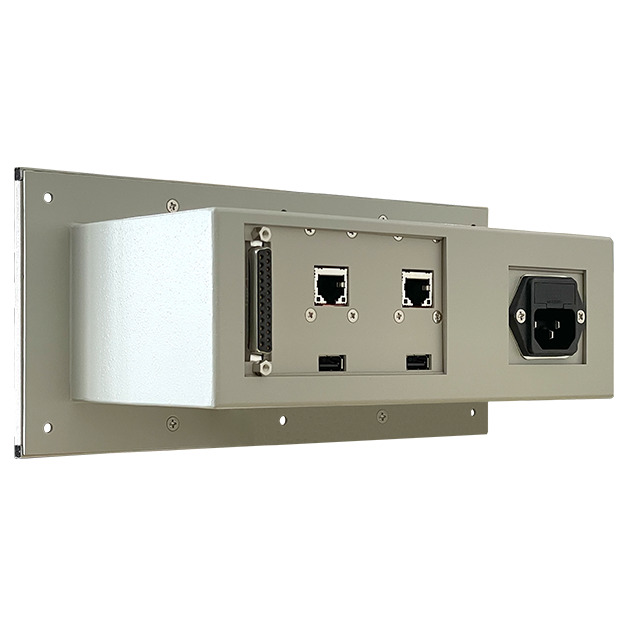

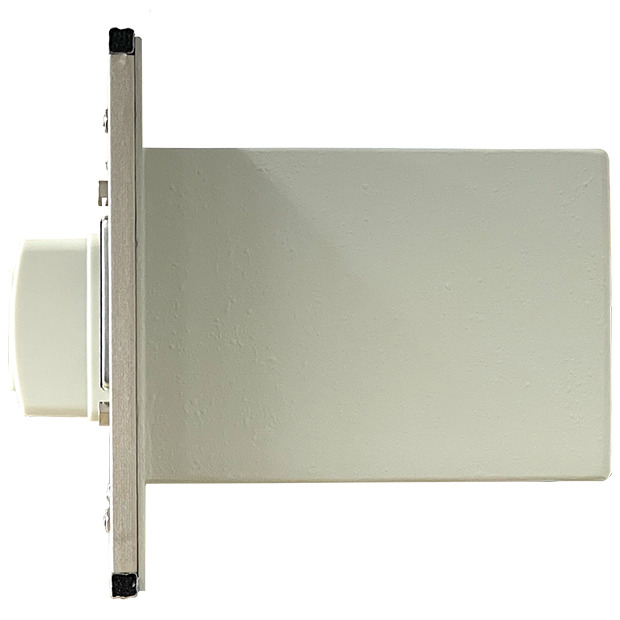

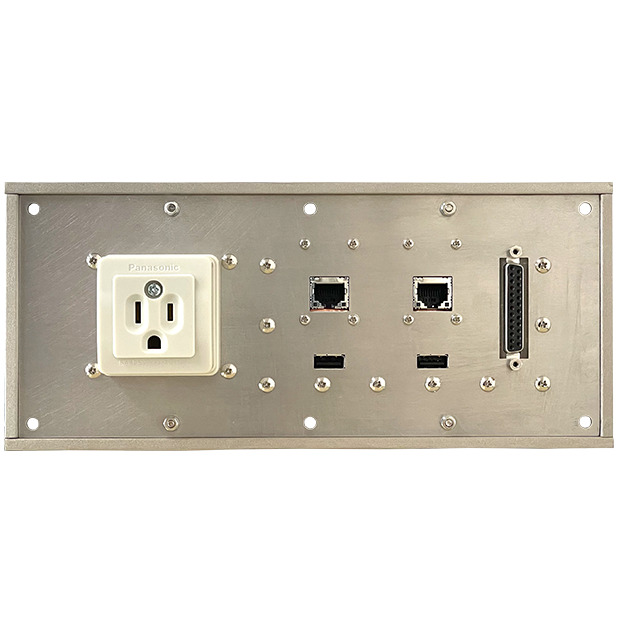

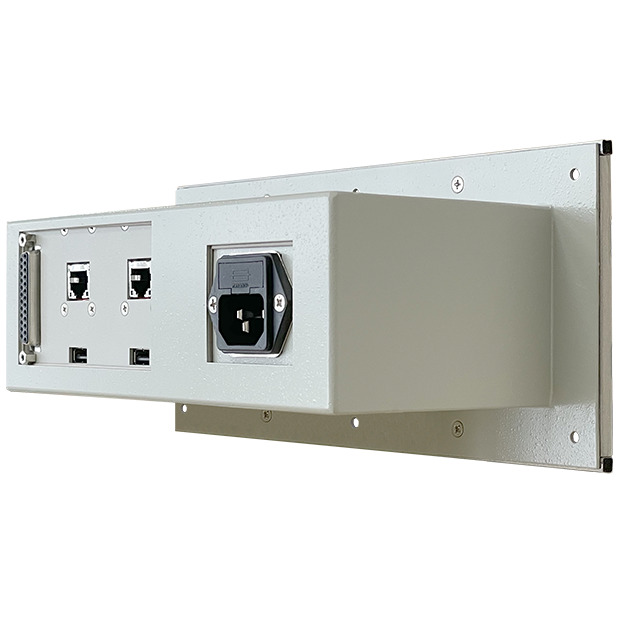

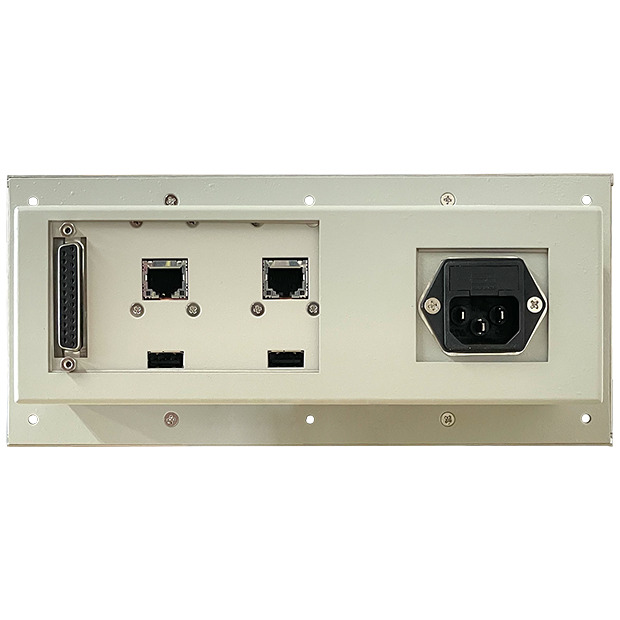

IFM3	AC(1pc)、LAN^※1(2pcs)、USB^※3(2pcs)、D-sub25※6(1pc)

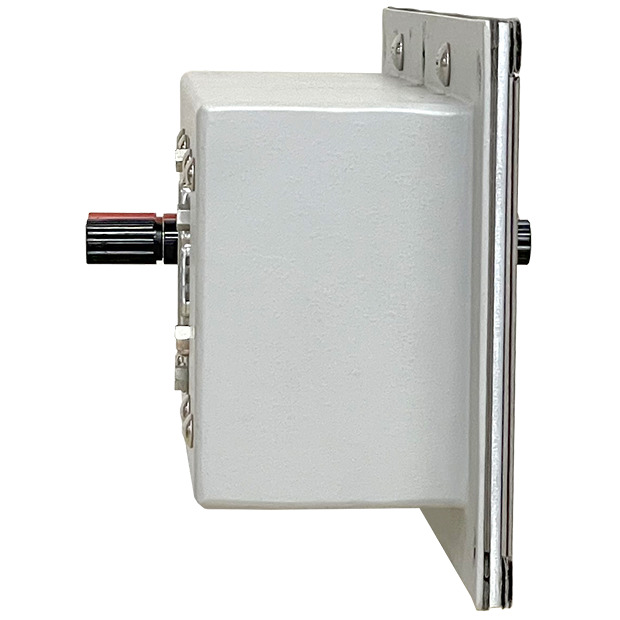

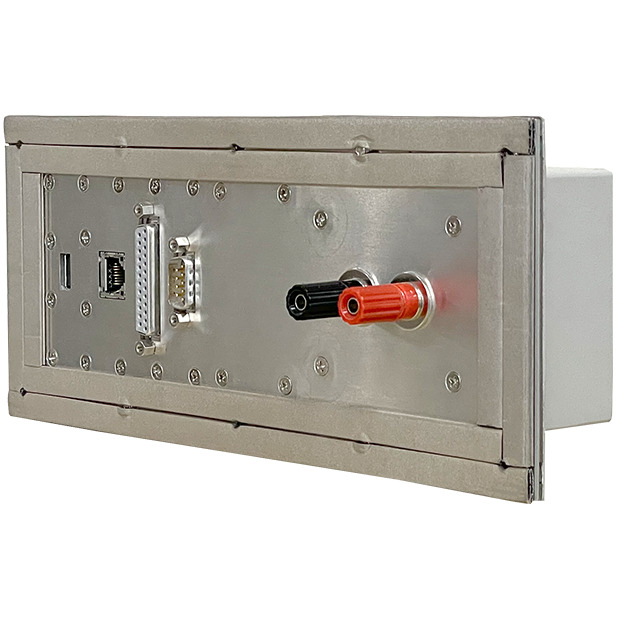

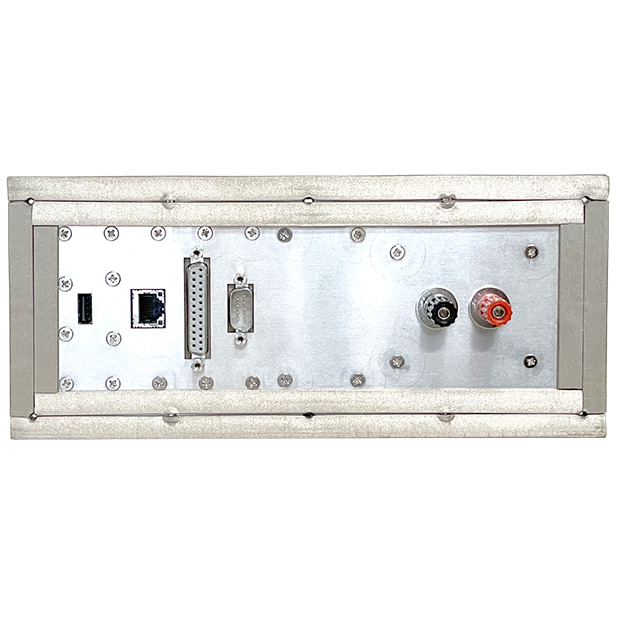

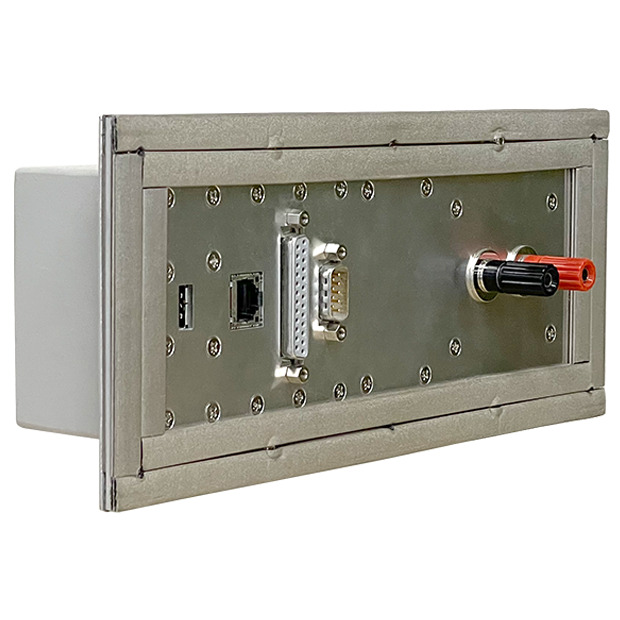

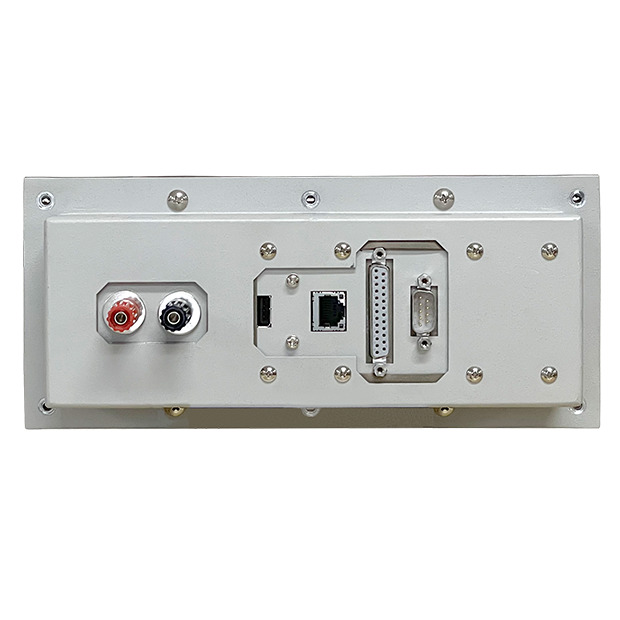

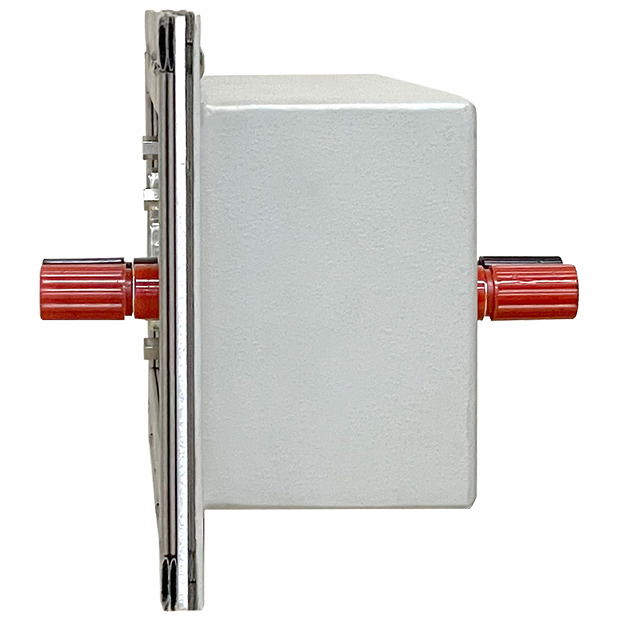

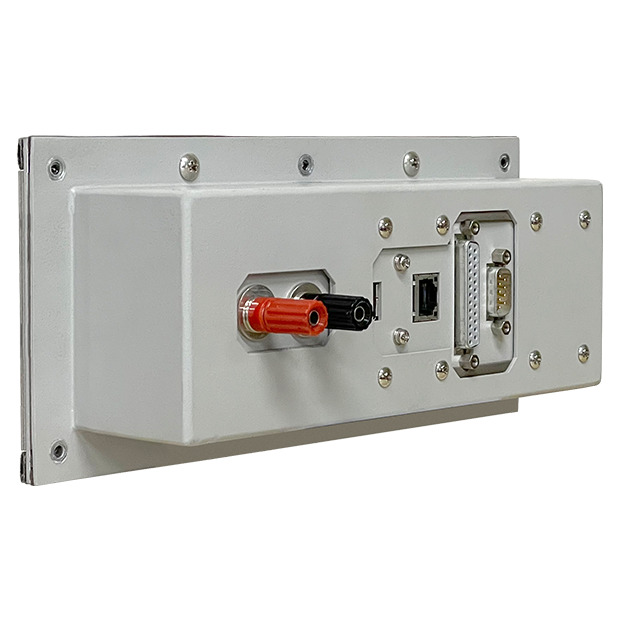

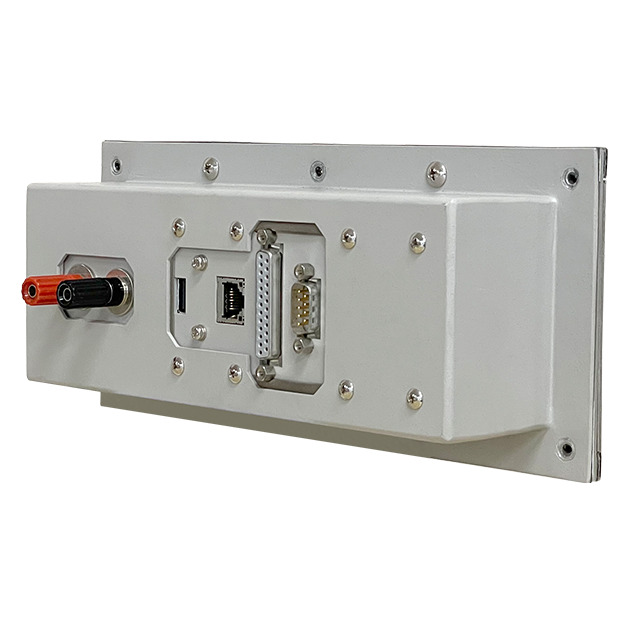

IFM4	DC(1pc)、LAN^※1(1pc)、USB^※3(1pc)、D-sub9^※5(1pc)、D-sub25^※6(1pc)

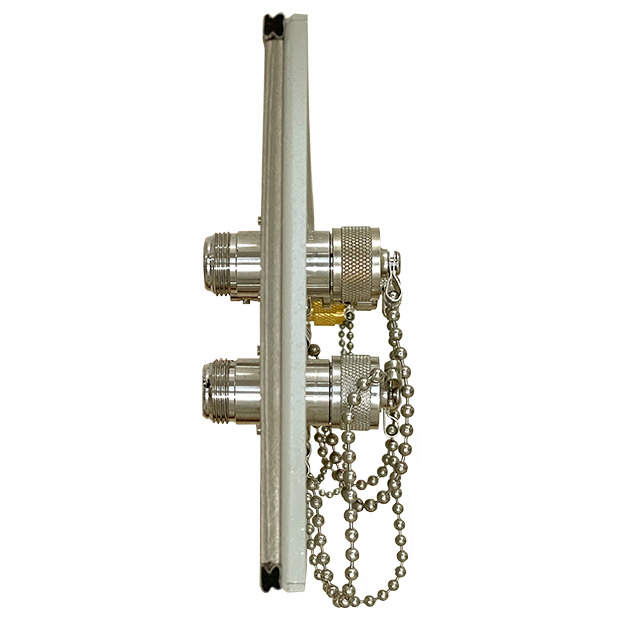

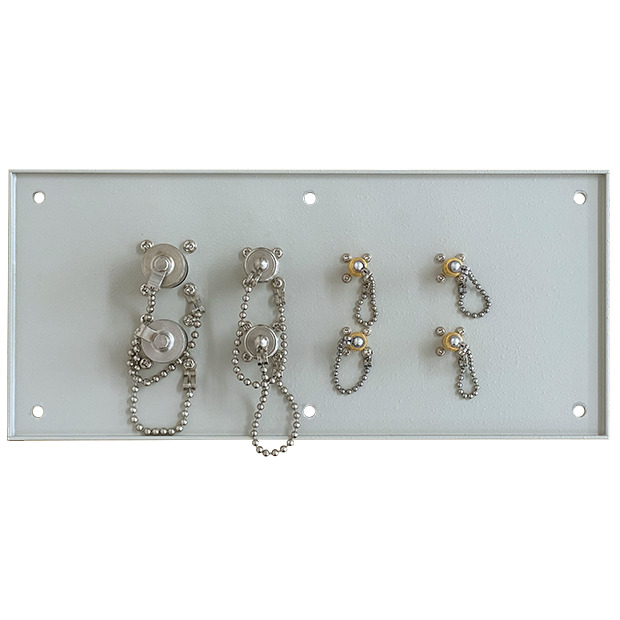

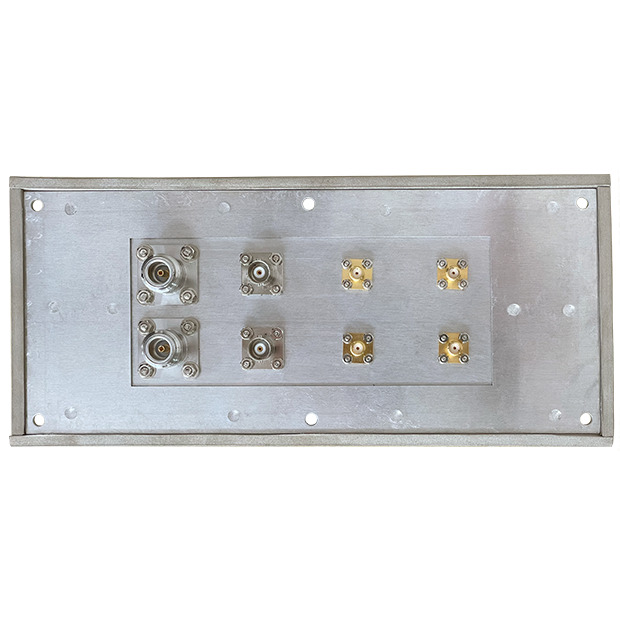

IFM5B	SMA(4pcs)、BNC(2pcs)、N(2pcs)

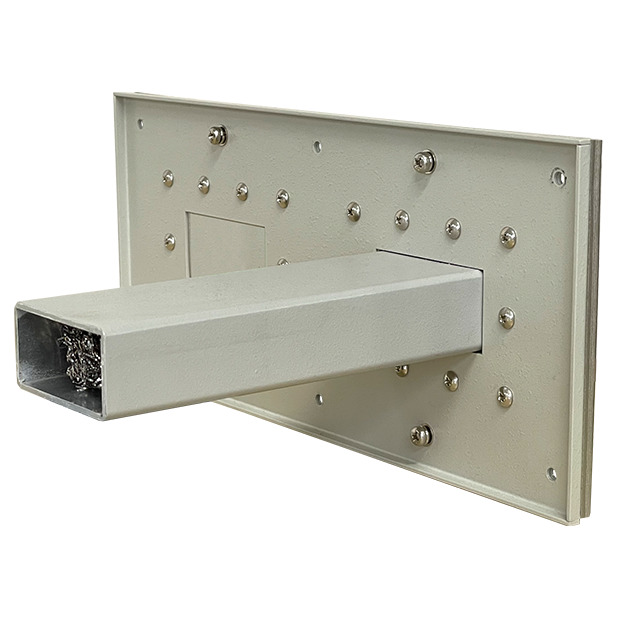

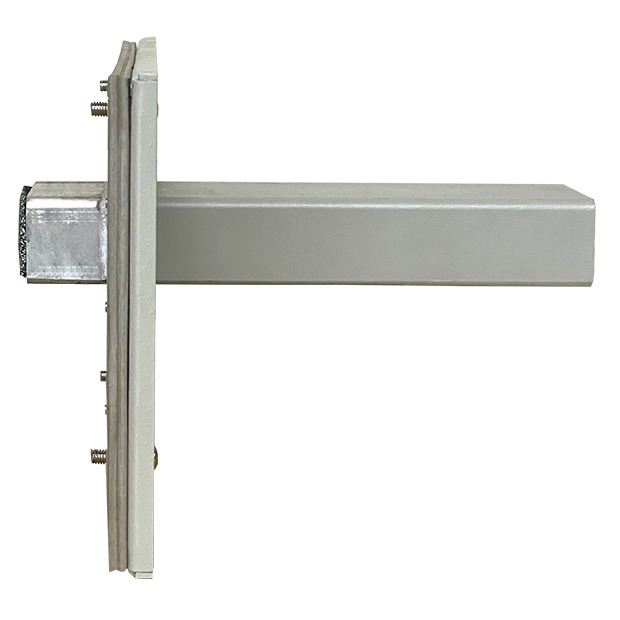

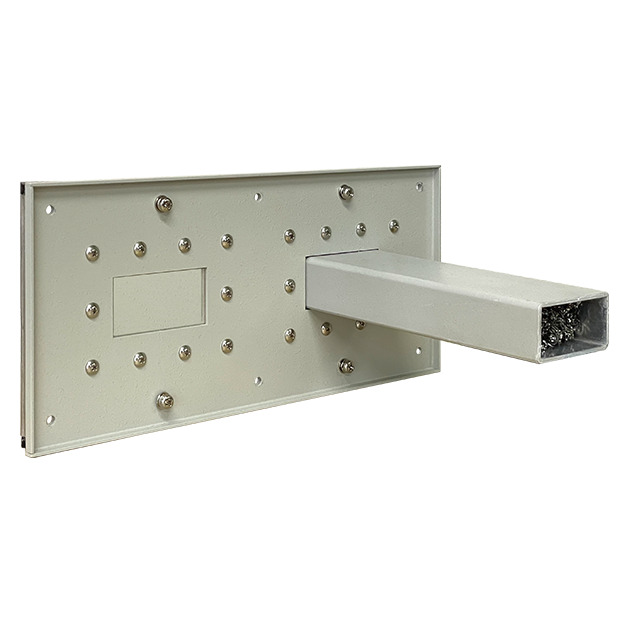

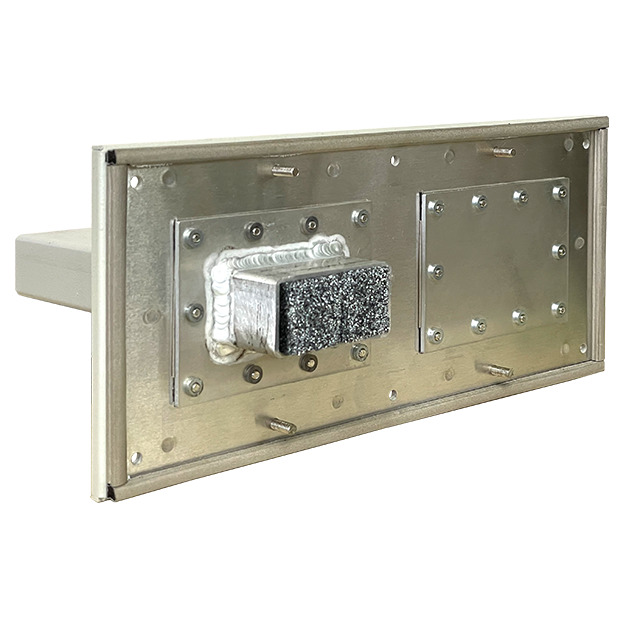

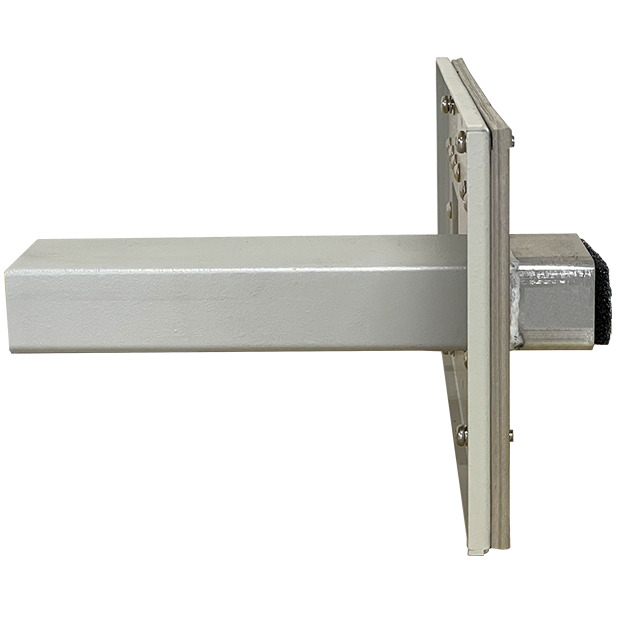

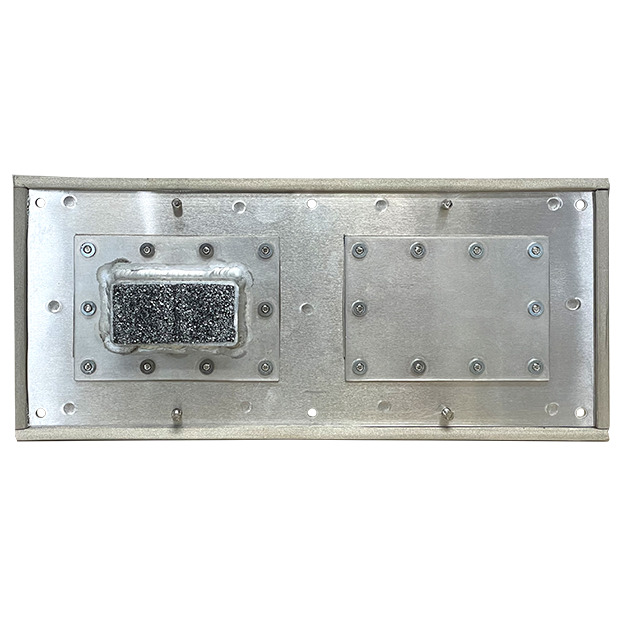

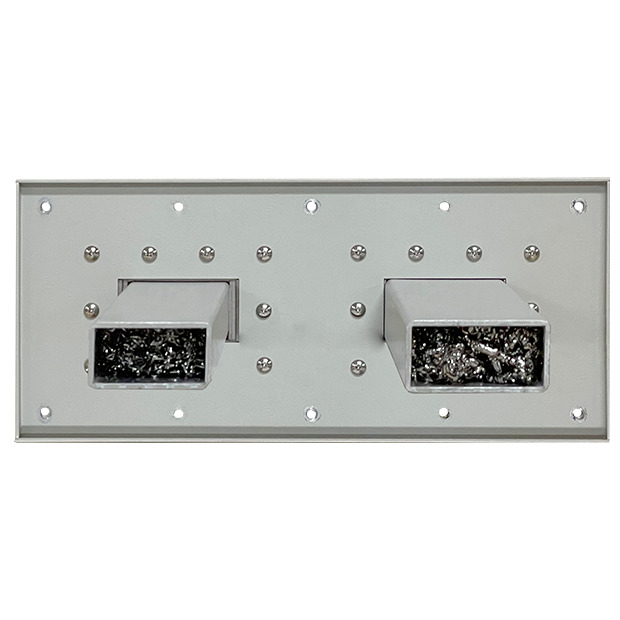

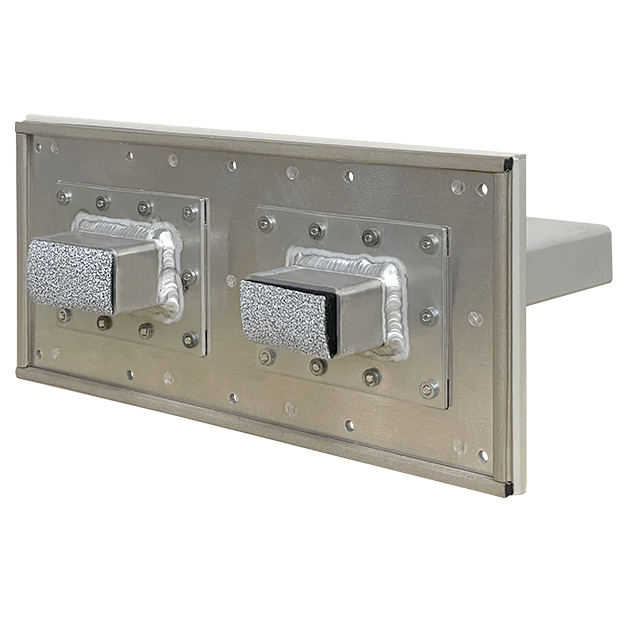

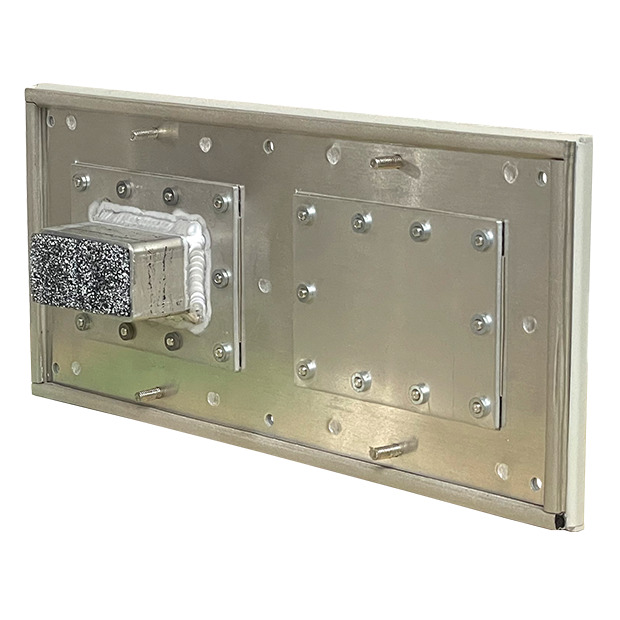

IFM6-1	Through pipe(1pc)

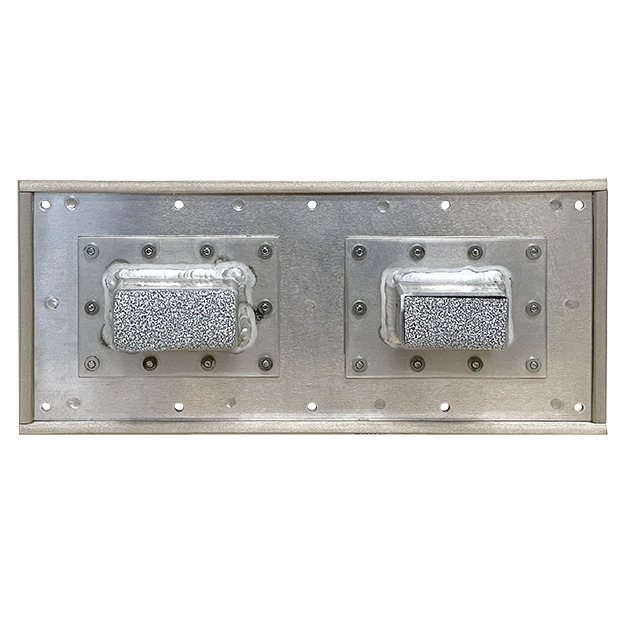

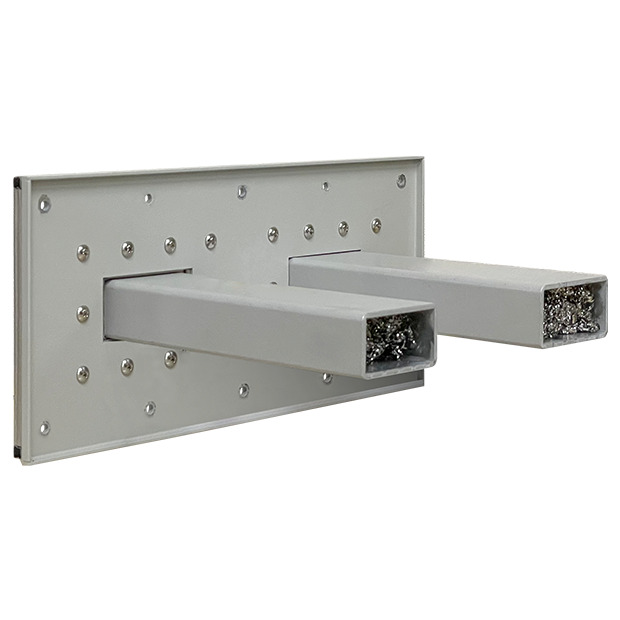

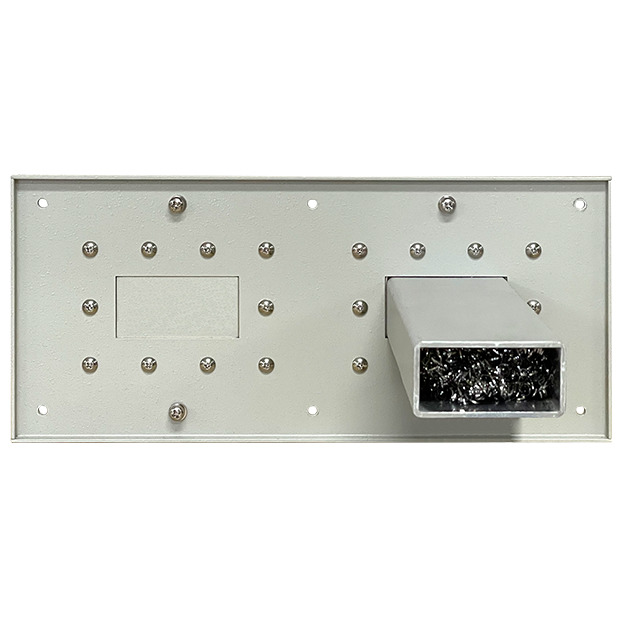

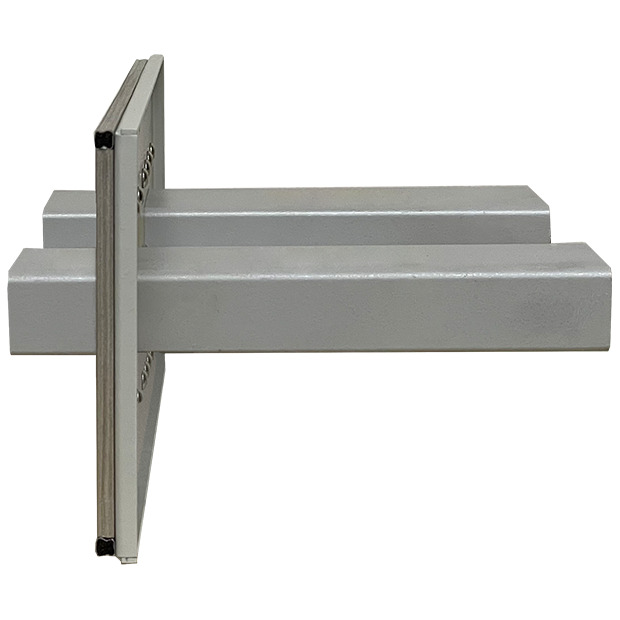

IFM6-2	Through pipe(2pcs)

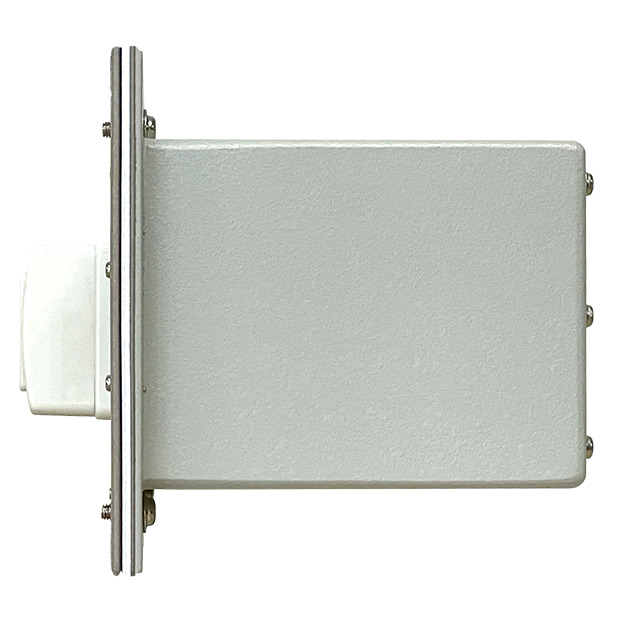

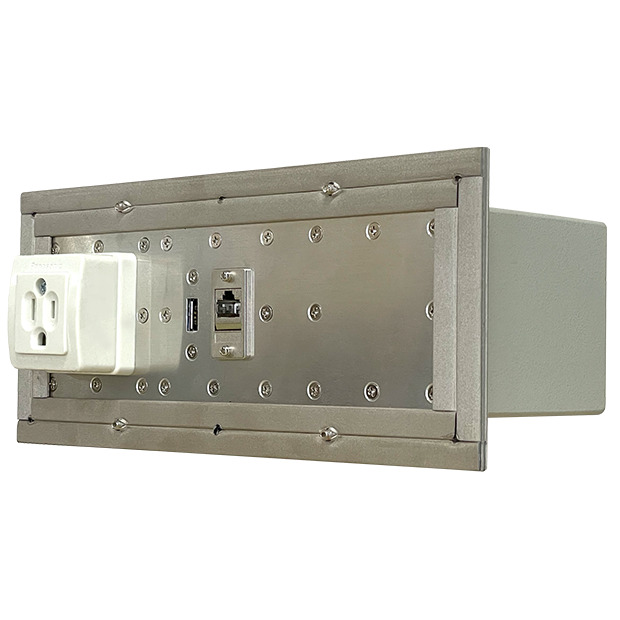

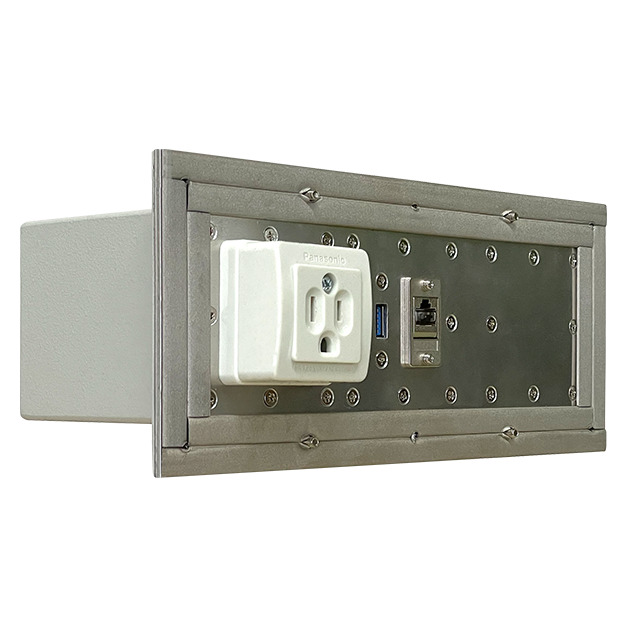

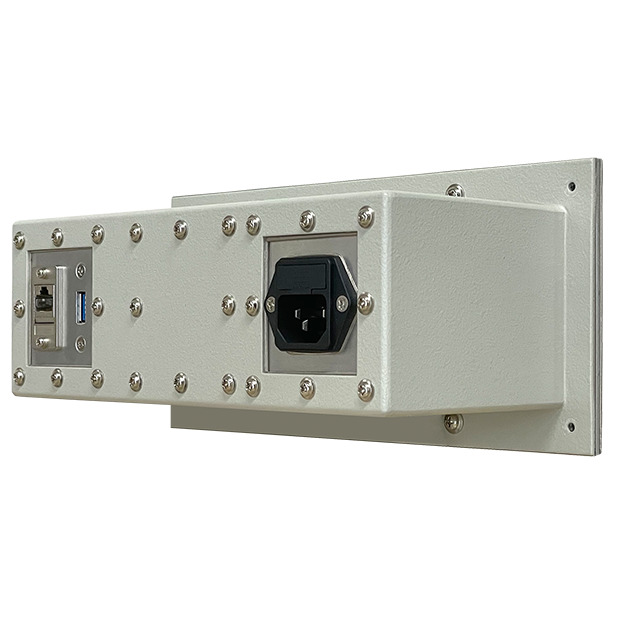

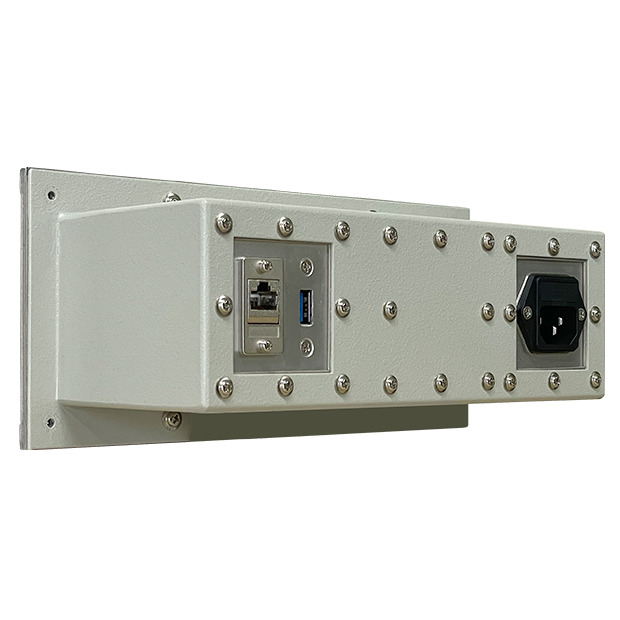

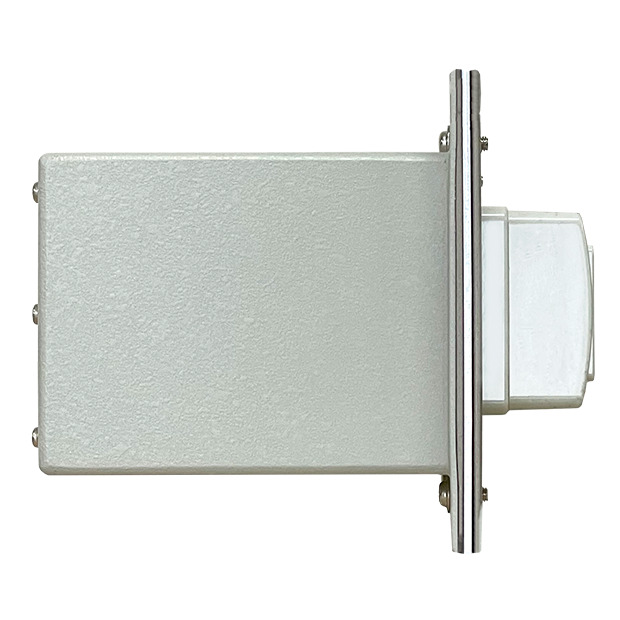

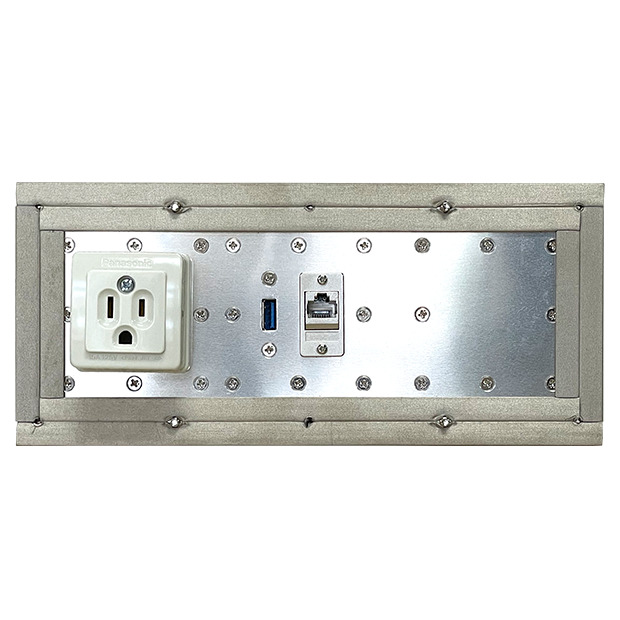

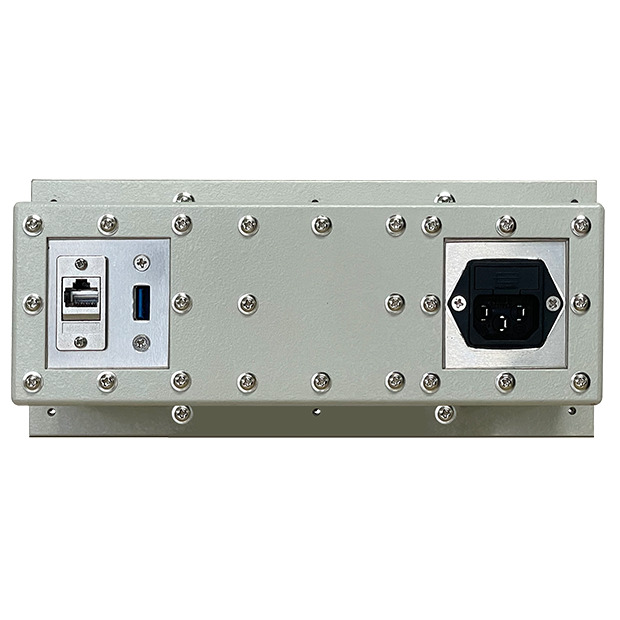

IFM7	AC(1pc)、LAN^※2(1pc)、USB^※4(1pc)

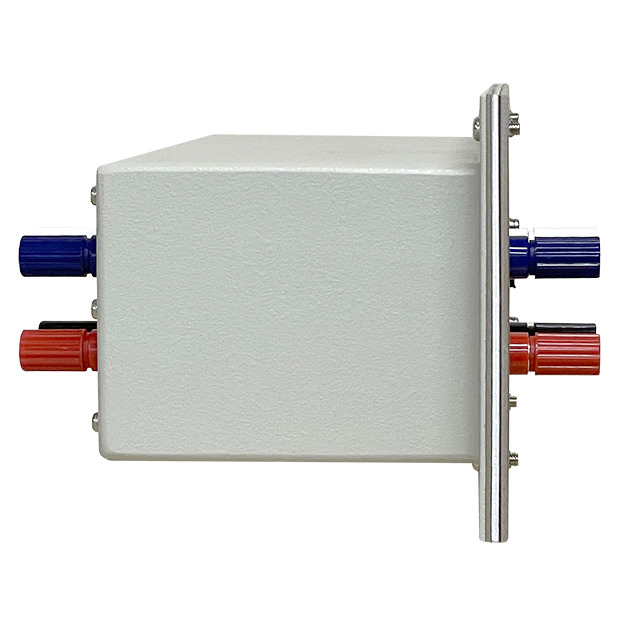

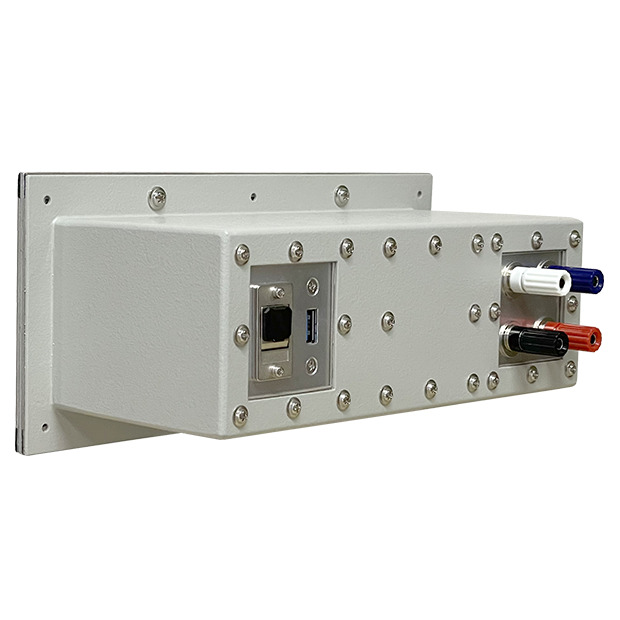

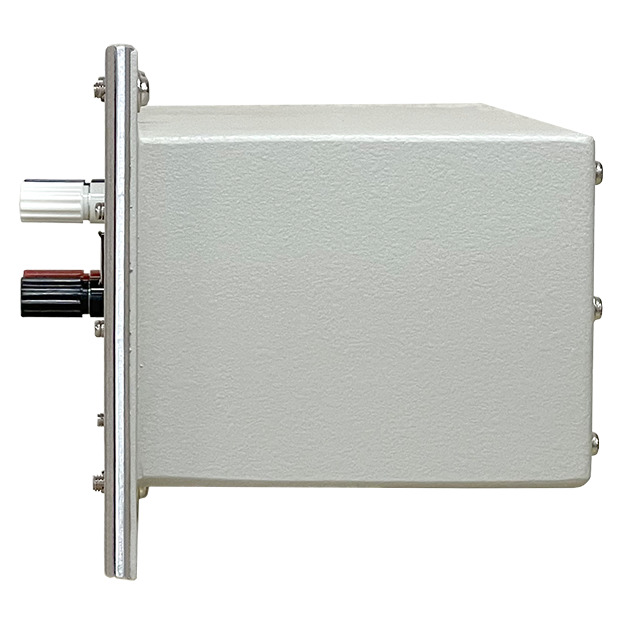

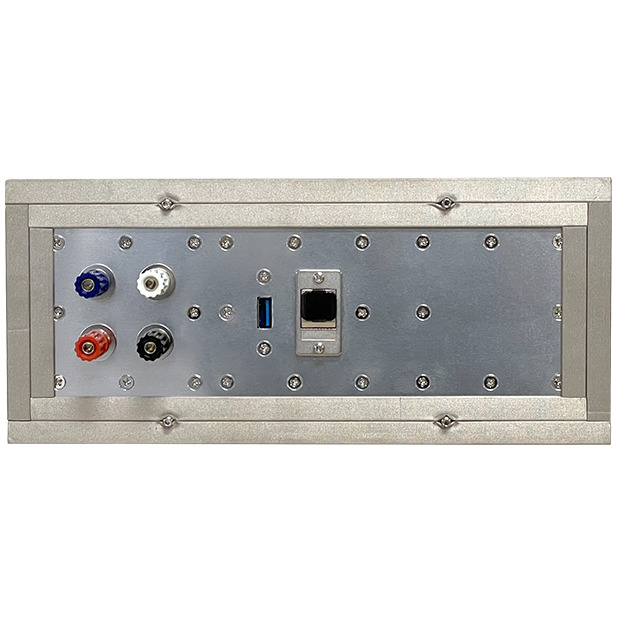

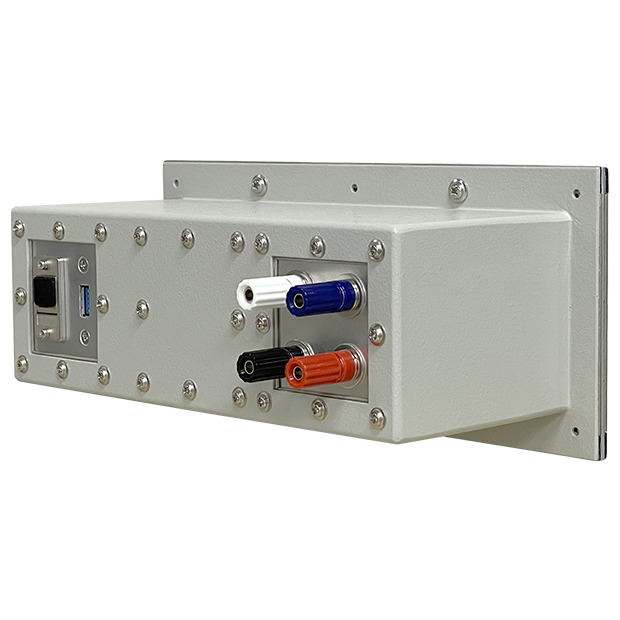

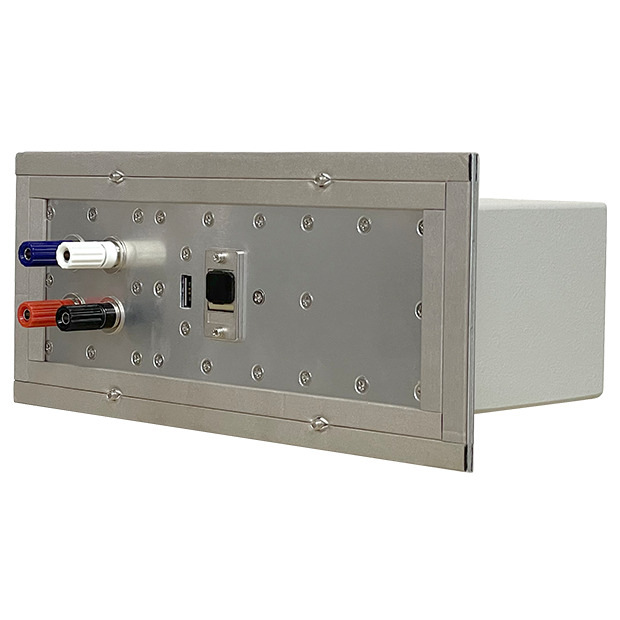

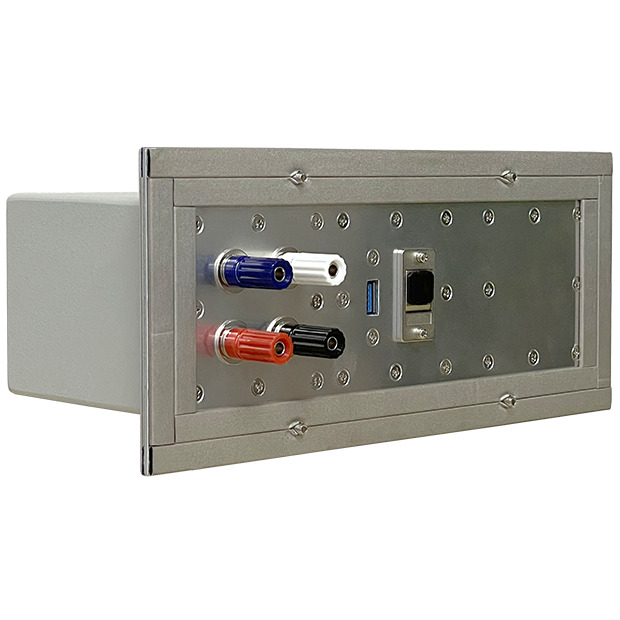

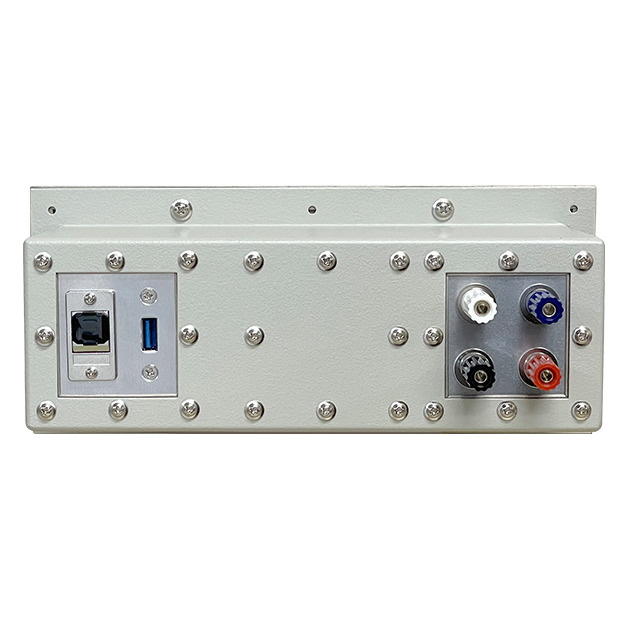

IFM8	DC(2pcs)、LAN^※2(1pc)、USB^※4(1pc)

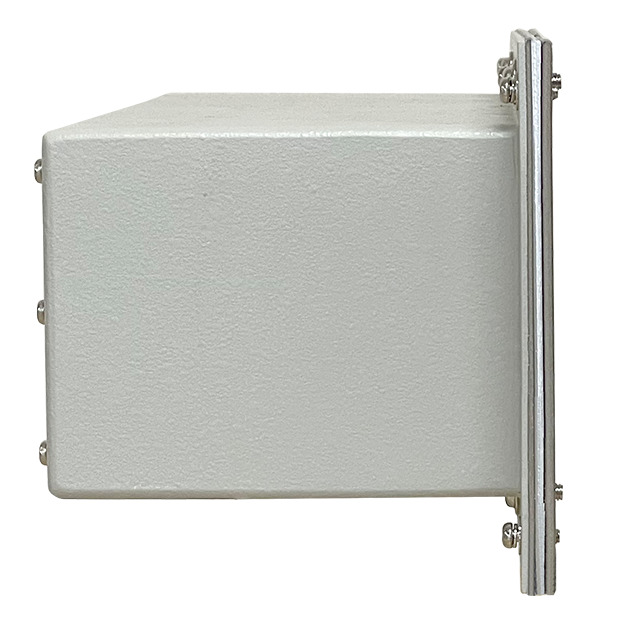

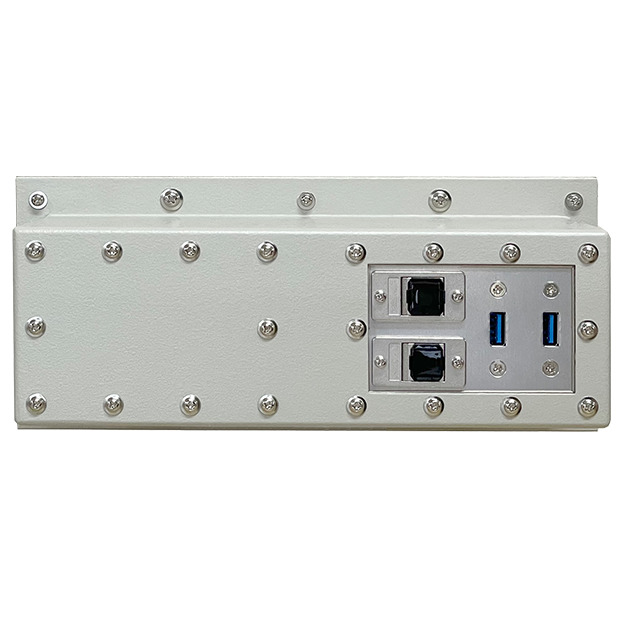

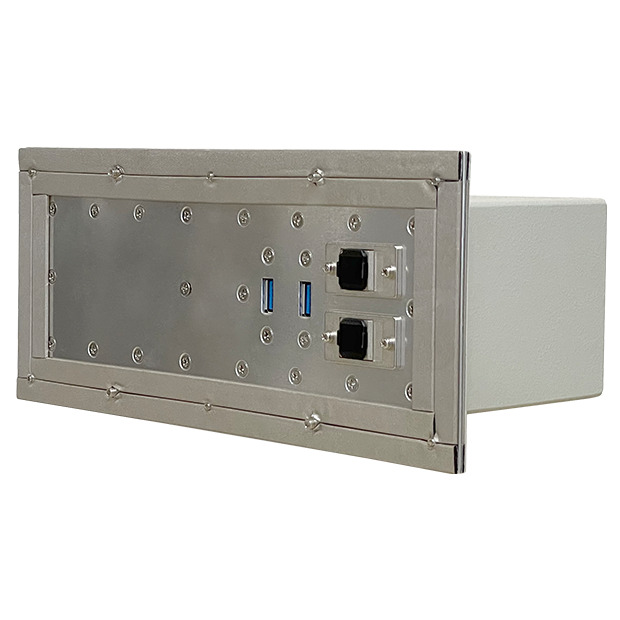

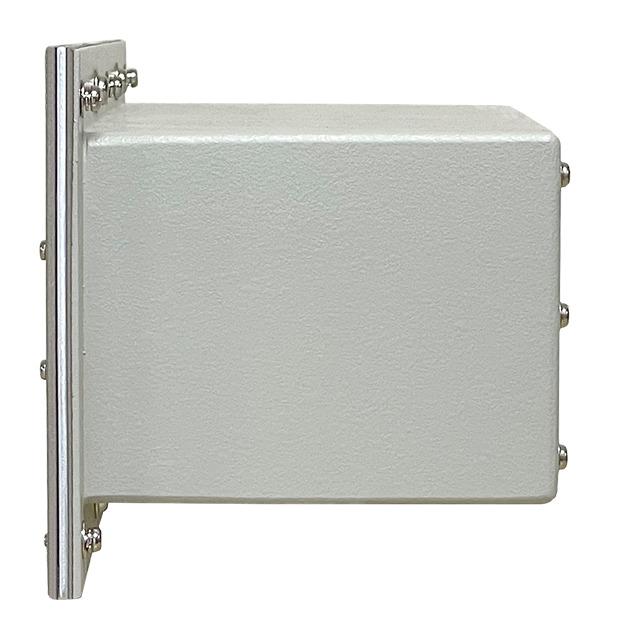

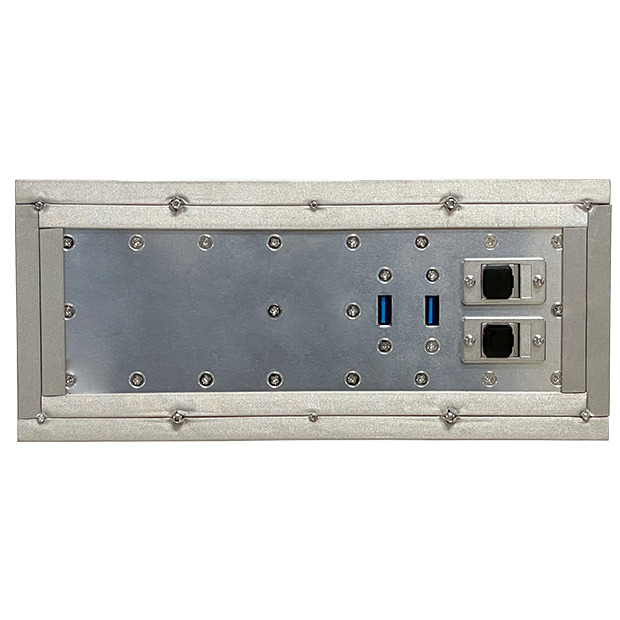

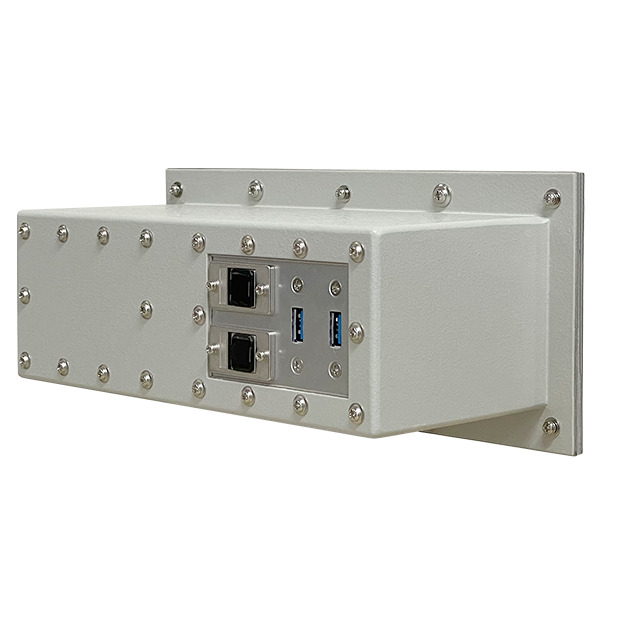

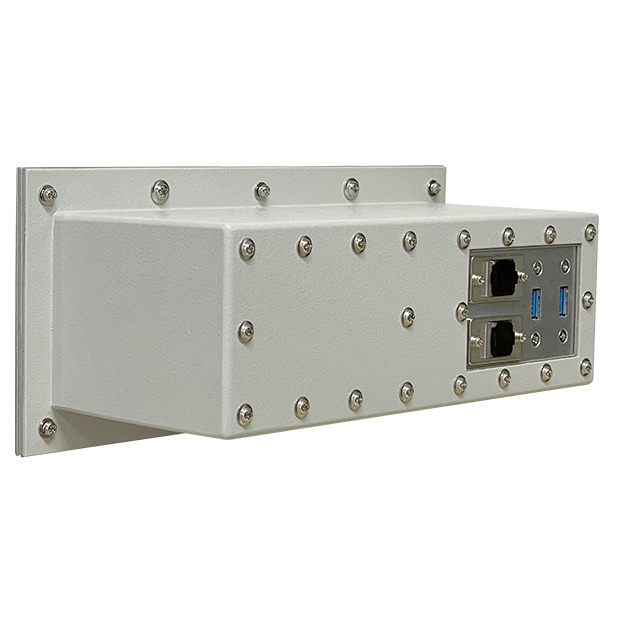

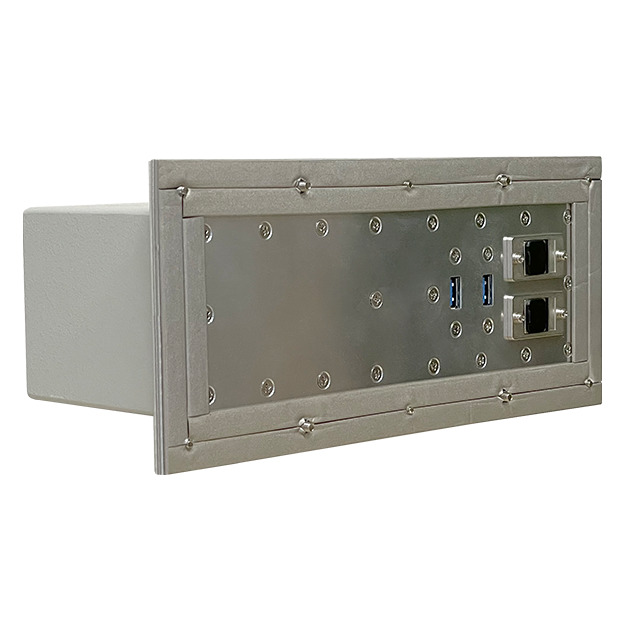

IFM9	LAN^※2(2pcs)、USB^※4(2pcs)

One or two of the following five types of IFM6 feed-through tubes are to be installed.
Inserting materials containing electrical conductors inside the penetration tubes may degrade the shielding performance.

Model	Pipe Inner Dimensions	Pipe length	Applicable frequency	Shielding Characteristics
TP-5	47.6(W)×22.2(H)mm	170mm	～2GHz	60dB
TP-6	40.4(W)×20.2(H) mm	170mm	～3GHz	60dB
TP-7	34.9(W)×15.8(H) mm	150mm	～3.5GHz	60dB
TP-8	28.5(W)×12.6(H) mm	150mm	～4GHz	60dB
TP-10	22.8(W)×10.1(H)mm	150mm	～4.5GHz	60dB

For Taurus Series of Electromagnetic anechoic box Interface module IFM6

14/06/2022

Product structure IFM6 can be installed with one or two of the five types of TP-5, 6, 7, 8 and 10. Size list Model number Internal dimensions of the pipe […]

Available for only MY1525

Option	Mounted Connectors

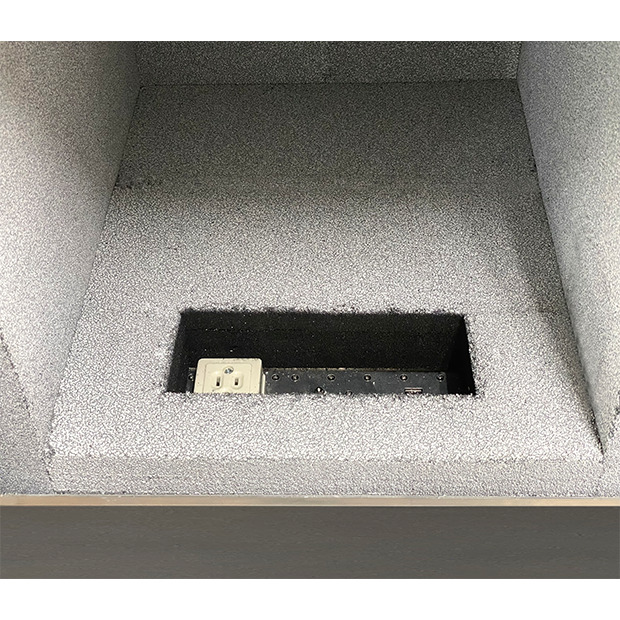

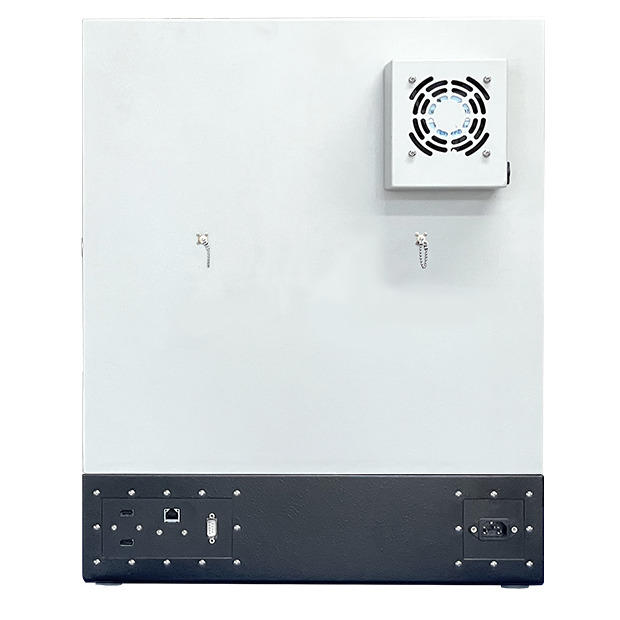

IFM10	AC(pc)、LAN^※1(pc)、USB^※3(2pcs)、D-sub9^※5(pc)

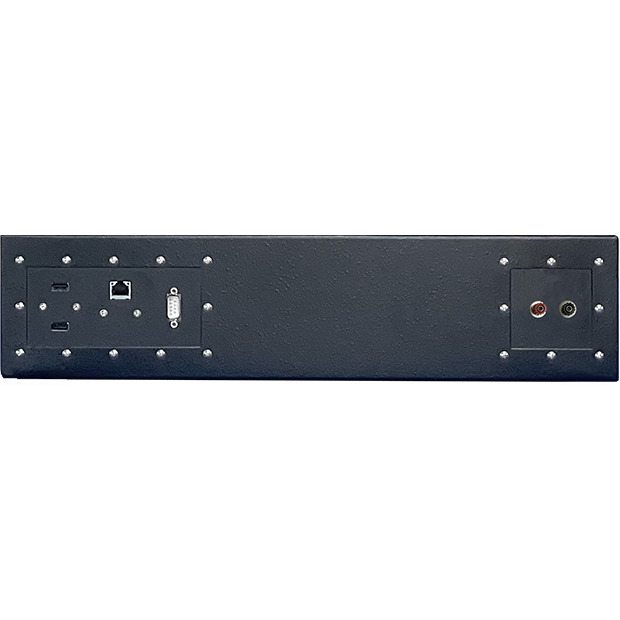

IFM11	DC(1pc)、LAN^※1(pc)、USB^※3(2pcs)、D-sub9^※5(pc)

※1.Cat 5e equivalent,PoE not supported
※2.Cat 6A equivalent,PoE+ supported
※3.USB2.0,Type-A(Inside・Outside),Power Delivery(PD) not supported
※4.USB3.1 Gen1,Type-A(Inside・Outside),Power Delivery(PD) not supported
※5.male(Inside・Outside),fit M2.6(metric screw threads)
※6.female(Inside・Outside),fit M2.6(metric screw threads)
