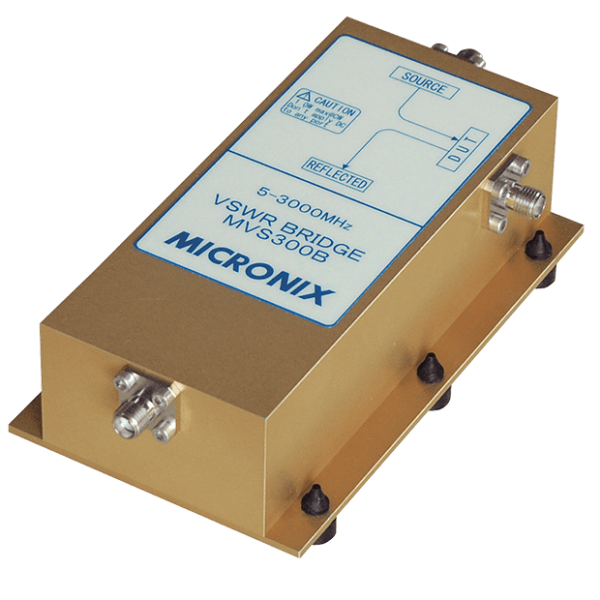

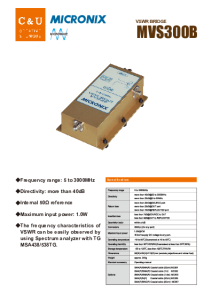

[Discontinued Product]VSWR Bridge MVS300B
Return loss of electronic parts or circuit can be measured.
- Frequency range: 5 to 3000MHz
- Directivity: more than 40dB
- Internal 50Ω reference
- Maximum input power: 1.0W
- The frequency characteristics of VSWR can be easily observed by using Spectrum analyzer with TG MSA438/538TG.
Specification
| Frequency range | 5 to 3000MHz |
|---|---|
| Directivity | more than 40dB@50 to 3000MHz more than 25dB@5 to 50MHz |
| Return loss | more than 20dB@SOURCE port more than 25dB@DUT port more than 10dB@REFLECTED port |
| Insertion loss | less than 7dB@SOURCE to DUT less than 8dB@DUT to REFLECTED |
| Open/short ratio | within ±1dB |
| Connectors | SMA(J) (for any port) |
| Maximm input power | 1.5W@CW ※Don’t supply DC voltage to any port. |
| Operating temperature | -10 to 85℃(Guaranteed at 10 to 50℃) |
| Operating humidity | less than 85℃/80%RH(Guaranteed at less than 50℃/80%) |
| Storage temperature | -55 to 125℃, less than 125℃/70％RH |
| Dimensions | 50(W)×32(H)×113(D)mm (exclude projections and rubber foot) |
| Weight | approx. 240g |
| Standard accessory | Operating manual |
| Options | SMA(P)/SMA(P) Coaxial cable (50cm) MC301 SMA(P)/SMA(P) Coaxial cable (1m) MC302 SMA(P)/SMA(P) Coaxial cable (1.5m) MC303 SMA(P)/N(P) Coaxial cable (20cm) MC305 SMA(P)/BNC(P) Coaxial cable (20cm) MC307 |
