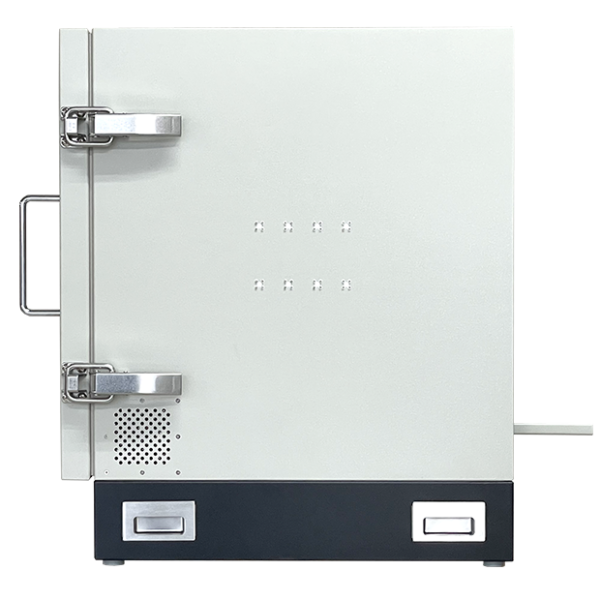

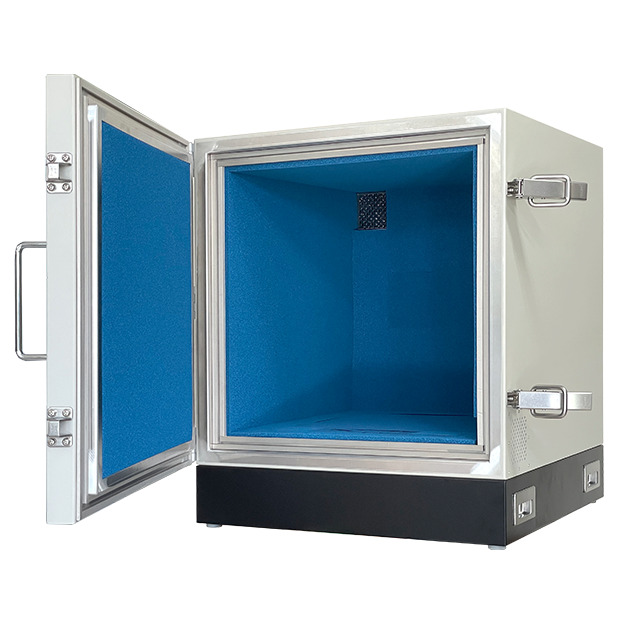

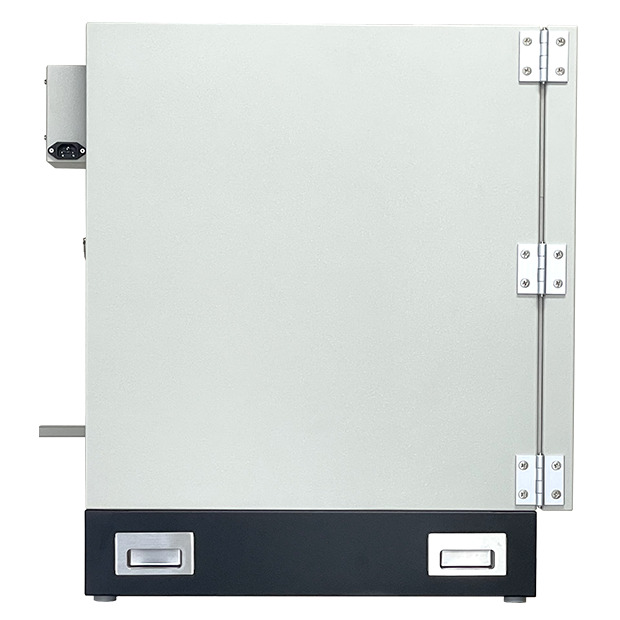

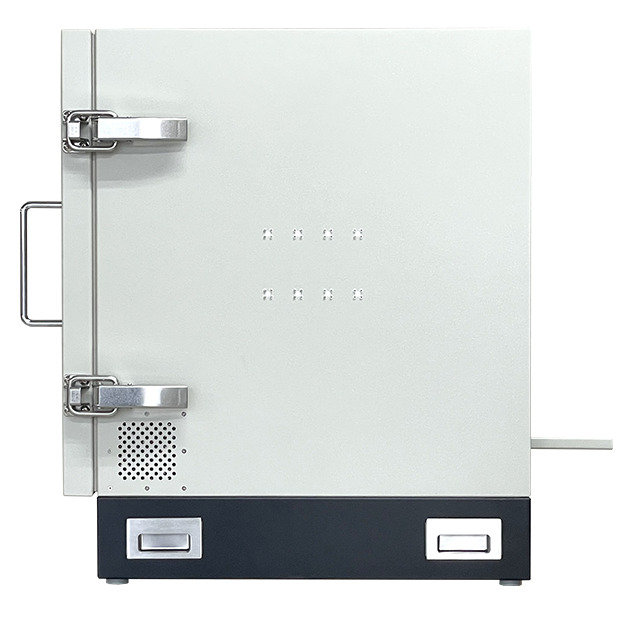

Electromagnetic Anechoic Box /Shield Box Taurus Series MY1527
With ventilation and supports 90dB Shielding.
Ideal for evaluation of information communication devices such as low receiving sensitivity test, high-capacity optical communication, and multi-connection system test.
Specifications
| Outside dimensions | 620(W)×740(H)×626(D)mm |
|---|---|
| Inside dimensions | 500(W)×500(H)×500(D)mm |
| Weight | 26kg |
| Shielding effectiveness | 90dB typ＠2.4GHz |
| Reflection loss | more than 20dB（MYA-77:≧ 1.2GHz） |
| AC Fan | 0.56m³/min (the maximum force of the wind) |
| Connectors | SMA×4（back） |
| I/F Module | 1 module（floor surface） |
| Option (Factory installed) |
|
※Dimensions and weight are approximate and do not include IF modules.

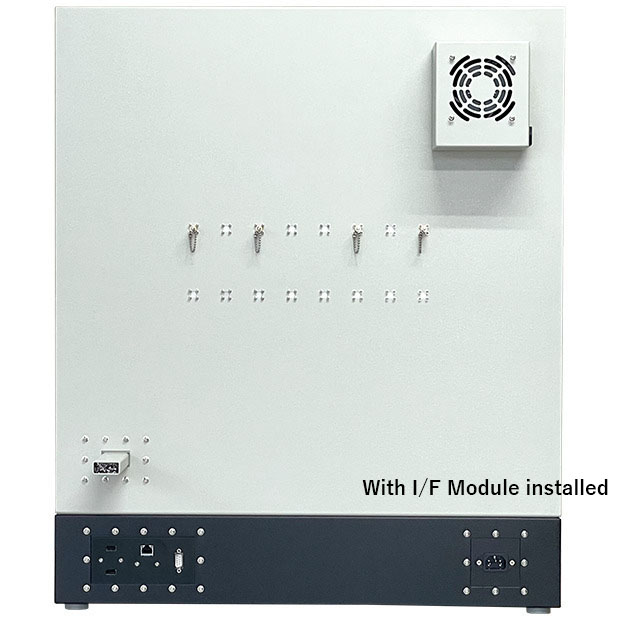

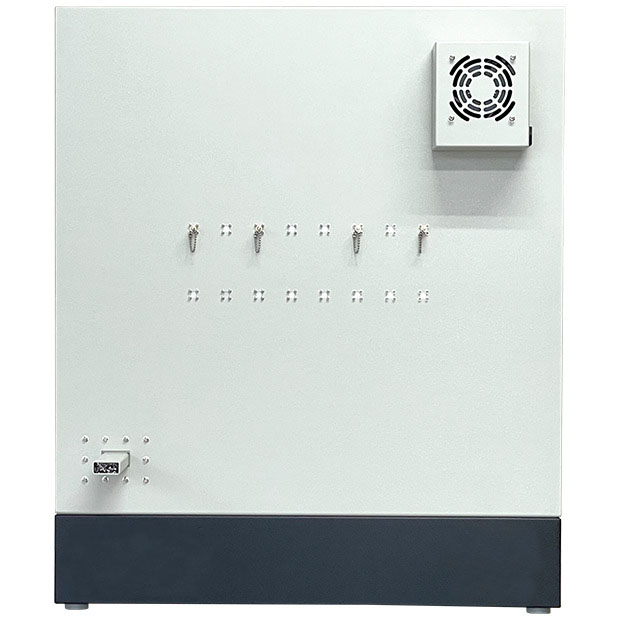

Back side layout
I/F Module
Modules with AC, DC, LAN, USB, and D-sub connectors attached. I/F modules can be selected according to the intended use.
| Model | Mounting connectors |
|---|---|
| IFM10 | AC(1pc)、LAN(1pc)、USB(2pcs)、D-sub9(1pc) |
| IFM11 | DC(1pc)、LAN(1pc)、USB(2pcs)、D-sub9(1pc) |
- LAN・・・Cat 5e equivalent ,PoE not supported
- USB・・・USB2.0,Type-A(Inside/Outside) ,Power Delivery(PD) not supported
- D-sub9・・・male(Inside/Outside), fit M2.6(metric screw threads)
Through pipe
Through pipe for fiber optic cable.
One of the following two types of through pipe for MY1527 can be installed.
Insertion of materials containing electrical conductors inside the through pipe may degrade shielding performance.
| Model | Pipe Inner dimensions(mm) | Pipe Length | Applicable frequency |
|---|---|---|---|
| TP-8 | 28.5(W)×12.6(H) | 150mm | to 4GHz |
| TP-10 | 22.8(W)×10.1(H) | 150mm | to 4.5GHz |
Additional SMA connector
A maximum of 16 SMA connectors can be installed with 4 standard and 12 optional connectors.
2.92mm (K) connectors can also be installed upon request.
- MY1527-SMA
- MY1527-K
