Pre-compliance EMS test system MR2350
Pre-compliance EMS test system for the radiation immunity test (IEC / EN 61000-4-3).
Electric field strength of 1, 3, 10V/m. The malfunction of the EU by the electromagnetic radiation can be observed by a camera put in the anechoic box.
Overview

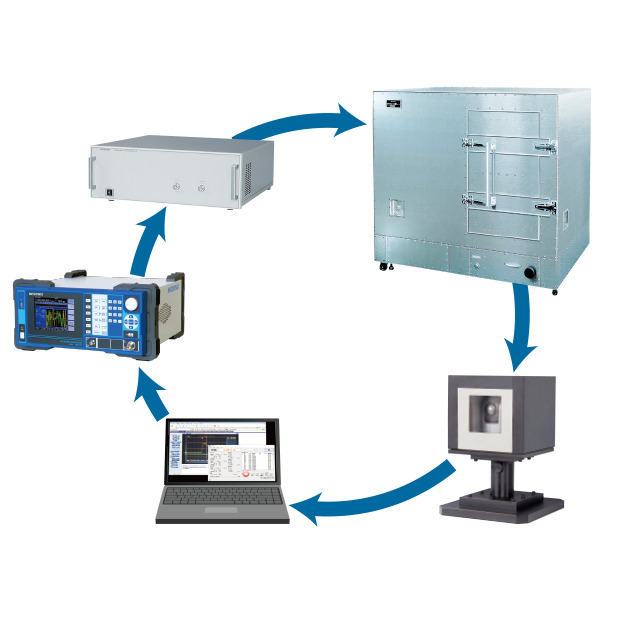

※The EUT camera monitor MEC235 is floor mounted.
※PC is not included in the system price.
Features
- Electric field strength of 1, 3, 10V/m
The electric field strength of 1, 3, 10V/m and moreover optionally 1 to 10V/m can be generated. - Mulfunction detection by EUT camera monitor
The malfunction of the EUT by the electromagnetic radiation can be observed by a camera put in the anechoic box. The image is displayed on the PC screen. - Mulfunction detection by EUT camera monitor
The antenna, whose dimensions are as small as 578(W)×401(H)× 250(D)mm and whose bandwidth is as broad as 30MHz to 1GHz, was developed by MICRONIX itself. - EMI+EMS test by MR2400
MR2400 combining the EMI test system MR2300 and the EMS test system MR2350 makes the EMC (EMI+EMS) test possible. - Whole system controlled with one PC
One PC controls all of applications such as the EMI test, the EMS test, the EUT camera monitor and the electric turntable (option). - Electric Turn table (Factory option)
This option is an electric turntable of 220mm in diameter and 15kg in load. And this is controlled by the PC.
※This can be applied to the EMI test system MR2300 as well. MAS20T and MAS430T/530T are lined up as PC software.
Related products
EMC test system
Pre-compliance EMI+EMS test system MR2400
This system combining the EMI test system MR 2300 and the EMS test system MR 2350. It is possible to conduct EMC (EMI + EMS) test.

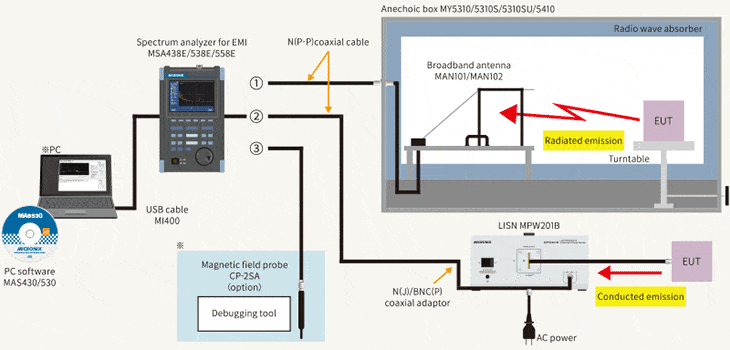

Pre-compliance EMI test system MR2300
Ideal for "Pre-compliance" preliminary conformance test of EMI official test.
Total test system including not only antenna, spectrum analyzer for EMI, LISN and PC software for EMI but also anechoic box.
Electromagnetic anechoic box / Shield box
Electromagnetic Anechoic Box /Shield Box Large Size MY5310
The most suitable anechoic box for EMI test. For small EUT and equipped with a turntable of 220mm in diameter / 10kg in load.
Electromagnetic Anechoic Box /Shield Box Large Size MY5310S
It is easy to carry with a small elevator and to install in the narrow space because divided into two.
Electromagnetic Anechoic Box /Shield Box Large Size MY5310SU
Separate and assembled type that can be carried in by personnel elevators and installed in small spaces.
Ferrite radio wave absorber is used, making it ideal for EMI testing. A turntable with a diameter of 500mm and a load capacity of 50kg is standard equipment for large EUTs.
Electromagnetic Anechoic Box /Shield Box Large Size MY5410
The most suitable anechoic box for EMI test. For large EUT and equipped with a turntable of 756mm in diameter / 100kg in load.
Others
[Discontinued roduct]RF SIGNAL GENERATOR MSG703
IQ vector generation function, Sufficient modulation and sweep functions.
EUT camera monitor MEC235
he malfunction of the EUT by the electromagnetic radiation can be observed by a camera put in the anechoic box. The image is displayed on the PC screen.
Power Amplifier MAP202
Power amplifier MAP202 Gain approx.45dB, Frequency range 80 to 1000MHz. 20W Power amplifier.
Electric Turn table (Factory option) MT106
Electric turntable for for MY5310, 5310S, 5310SU, 5410
