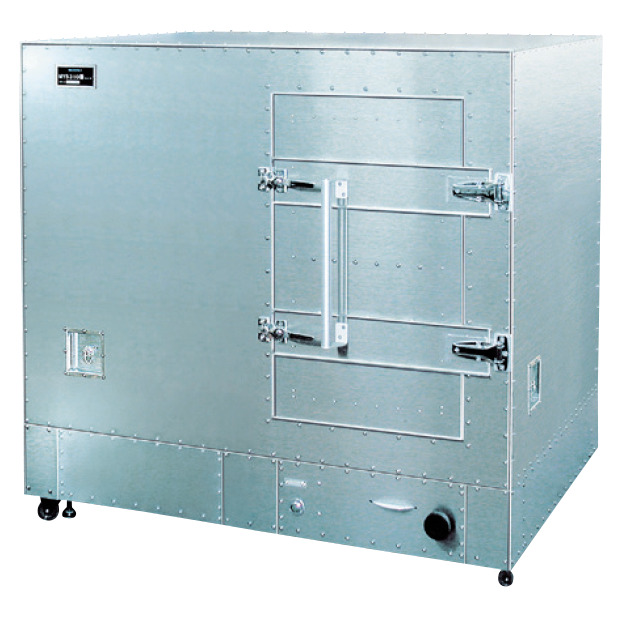

Electromagnetic Anechoic Box /Shield Box Large Size MY5310
The most suitable anechoic box for EMI test. For small EUT and equipped with a turntable of 220mm in diameter / 10kg in load.
Specification
| Outside Dimensions (approx.) | 1340(W)×1210(H)×1030(D)mm |
|---|---|
| Inside Dimensions (approx.) | 1280(W)×960(H)×960(D)mm |
| Door opening dimensions (approx.) | 410(W)×710(H)mm |
| Weight (approx.) | 400kg |
| Turntable dimensions | 220mm in diameter |
| Turntable load capacity | 10kg in load |
| Connectors | N(J)×1(Front left bottom for antenna) N(J)×1(Right side bottom) |
| I/F | D-sub25pins×1(female) LAN×1 AC×1(250Vmax/10A) ＊When electric-powered turntable is attached, AC100V |
| Shielding Characteristics (typ) | 70dB typ@2.2GHz |
| Radio wave absorber | single-layer ferrite tile |
| Reflection Loss |
|
Structure
Radio wave absorber Ferrite
| Measuring frequency range | 30MHz to 1GHz |
|---|---|
| Structure | single-layer ferrite tile |
| Reflection loss | more than 20dB＠30MHz to 400MHz more than 12dB＠400MHz to 1GHz |
| Thickness | 5.2mm |
Broadband antenna
| MAN101 | MAN102 | |
|---|---|---|
| Frequency range | 30MHz to 1GHz | 30MHz to 1GHz |
| Polarization | Linear | Linear |
| Impedance | 50ohm (nominal) | 50ohm (nominal) |
| Antenna type | Transformational Y character monopole antenna | Transformational Y character monopole antenna |
| Element dimensions | 578(W)×332(H)×500(D)mm | 628(W)×332(H)×500(D)mm |
| Ground plate dimensions | 700(W)×900(D)mm | 800(W)×950(D)mm |
| Weight (approx.) | 5.3kg | 6kg |
