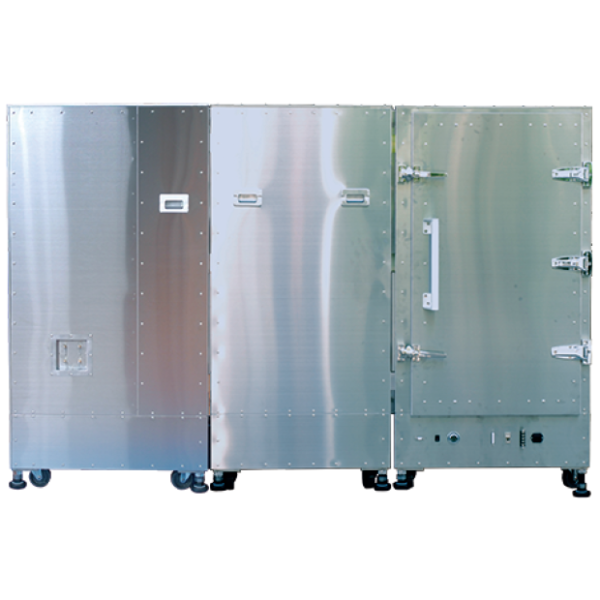

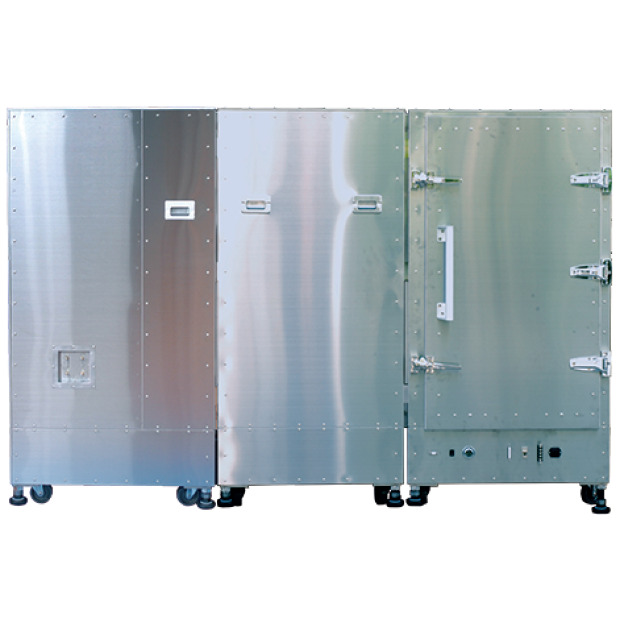

Electromagnetic Anechoic Box /Shield Box Large Size MY5310SU

Separate and assembled type that can be carried in by personnel elevators and installed in small spaces.
Ferrite radio wave absorber is used, making it ideal for EMI testing. A turntable with a diameter of 500mm and a load capacity of 50kg is standard equipment for large EUTs.


Outside Dimensionsapprox. 1960(W)×1320(H)×1140(D) mm
Inside Dimensionsapprox. 1840(W)×920(H)×914(D) mm
Door opening dimensionsapprox. 510(W)×920(H) mm
Weightapprox. 650kg
Turntableφ500mm / 50kg in load / Manual operation
Coaxial connectorN(J) x 2(Right side x 1, Front left x 1)
I/FAC x 1(250V 10Amax)
*AC100V when electric turntable is installed LAN x 1
D-sub25 pins x 1
Shielding Characteristics(typ)70dB typ@2.2GHz
Radio wave absorberFerrite tile structured double
Absorption efficiencymore than 20dB@35MHz to 2.2GHz
  • Add door to B unit
  • Biconical Antenna MAN101
  • Electric Turn table MT106

Maximum dimensions when split : 680(W)x1320(H)x1140(D)mm
[Reference] Dimensions of 11-seater elevator : 800(W)x2300(H)x1350(D)mm


  1. Can be carried in separately
  2. Can be carried in by elevator
  3. Easy to install without special tools or knowledge.
