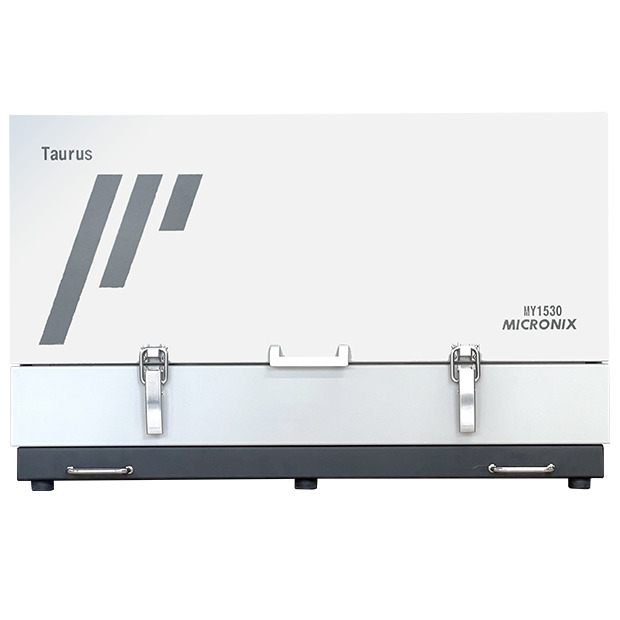

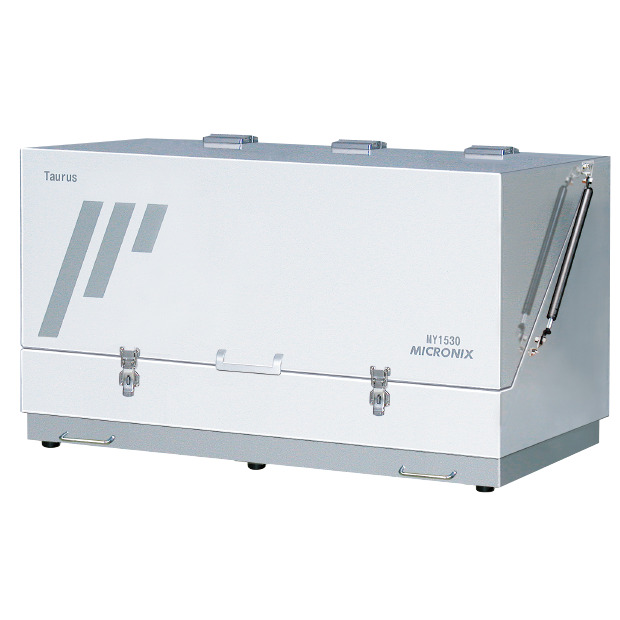

Electromagnetic Anechoic Box /Shield Box Taurus Series MY1530

Large size : Type corresponding to even big EUT . Turntable can be mounted as an option.

Specification

ModelMY1530
Outside Dimensions1120(W)×705(H)×620(D)mm

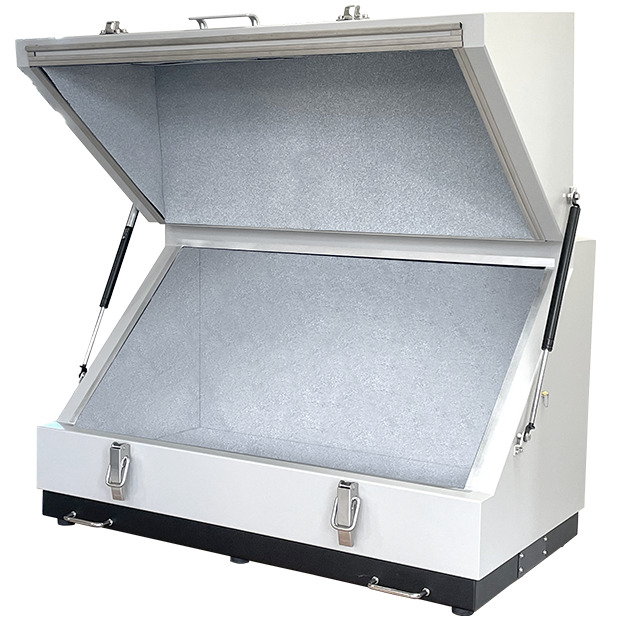

Inside Dimensions1000(W)×500(H)×500(D)mm
Weight56kg
Shielding Characteristics(typ)70dB typ@2.4GHz
Reflection Lossmore than 20dB(MYA-77:≧1.2GHz)

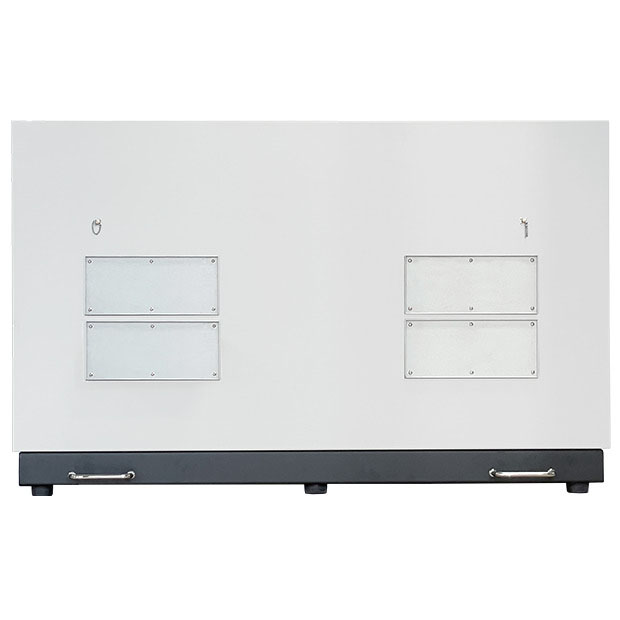

Connectors4 pcs of SMA(2 on the back, 1 on each side)

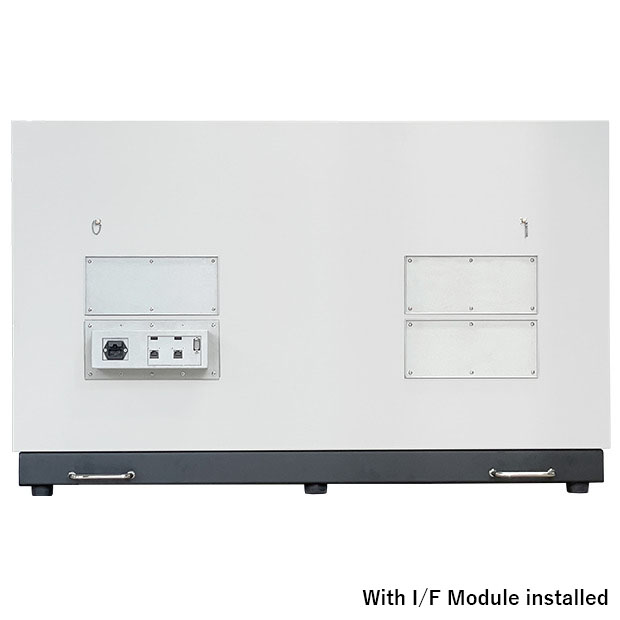

I/F Module installation capacity4 modules(back)
Option
  • I/F Module
  • Wooden Table MT105
  • Turn Table Unit MT103
  • Radio wave absorber(MYA-75)
  • Radio wave absorber(MYA-79)

※Dimensions exclude protrusions, etc. Weights do not include IF modules. Dimensions and weight are approximate.
