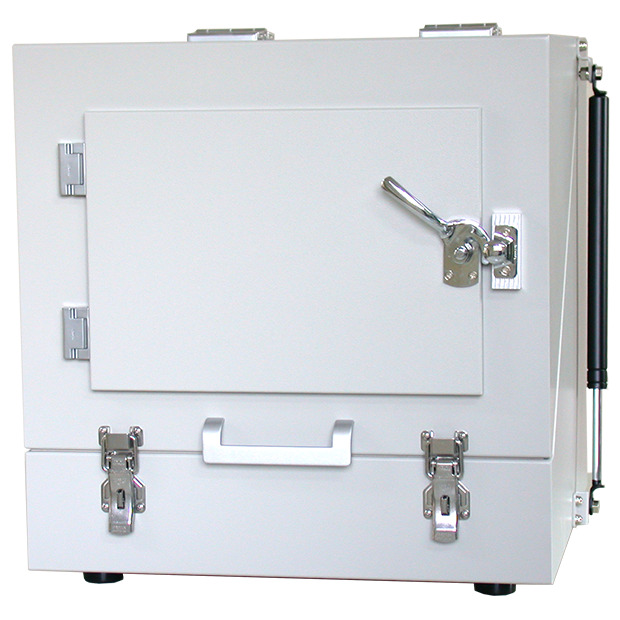

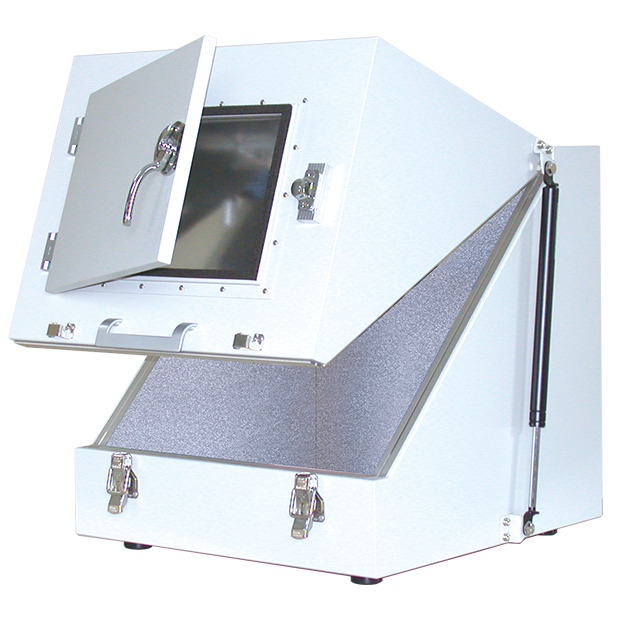

Electromagnetic Anechoic Box /Shield Box Taurus Series MY1520SW
Specification
| Model | MY1520SW |
|---|---|
| Outside Dimensions | 520(W)×520(H)×520(D)mm |
| Inside Dimensions | 455(W)×455(H)×455(D)mm |
| Weight | 15kg |
| Shielding Characteristics(typ) | more than 70dB@2 .4GHz |
| Reflection Loss | more than 20dB（MYA-75:≧2.4GHz） |

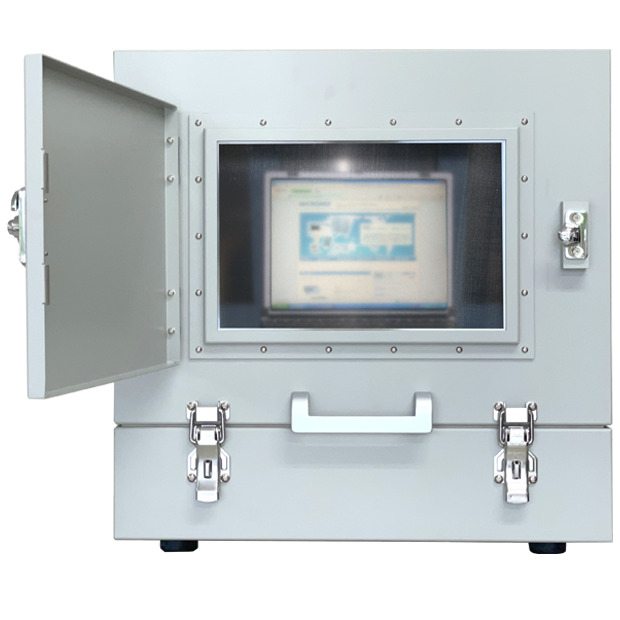

| Shield window | 300(W)×200(H)mm |
| Connectors | 2 pcs of SMA（back） |
| I/F Module installation capacity | 2 modules（back） |
| Option |
|
※Dimensions exclude protrusions, etc. Weights do not include IF modules. Dimensions and weight are approximate.
