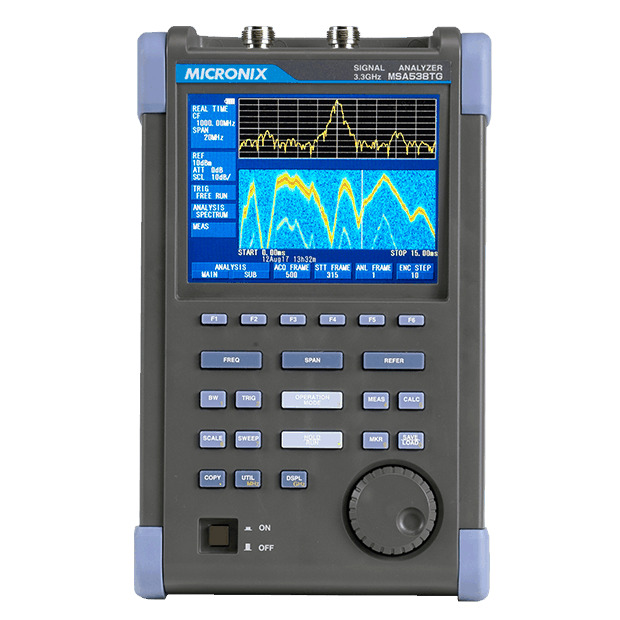

Handheld Signal Analyzer MSA538TG

Built-in TG from 5MHz to 3.3GHz
Measurement frequency : 20kHz to 3.3GHz
Catalog Contact Us
目次

Features

Real time modeIn real time system, the spectrum which occurs in an instant won’t be missed. It is optimum for analyzing a noise and a transitional phenomenon.

  • 8 kinds of analyses
    Spectrum, Spectrogram, OverWrite, Time domain analyses(5 kinds)
  • 20MHz SPAN maximum
  • Fast OverWrite analysis of 720 frames/sec
  • Large memory of 16K frames and high speed USB communication of 19ms/sec.
Measurement Frequency20kHz to 3.3GHz
Sweep Mode300Hz RBW minimum
Average Noise Level
  • Average Noise Level:-162dBm/Hz
  • Real Time Mode:-140dBm＠cf1GHz，span 20kHz
  • Sweep Mode:-129dBm＠cf 1GHz，RBW 300Hz
Built-in TG from 5MHz to 3.3GHz

Tracking Generator added to MSA538 enables the measurement and evaluation of amplitude frequency characteristics of filter, amplifier, electronic parts or circuit.

  • Specifications
    • Frequency range : 5MHz to 3.3GHz
    • Output level : -10dBm±1dB@1GHz
    • Output level flatness : ±1.5dB
    • Normalizing function : Compensates input frequency response flat on screen.

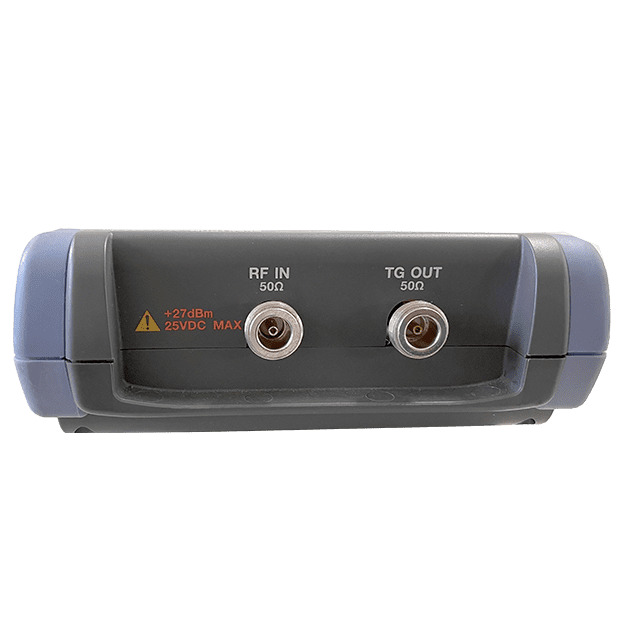

    • Output impedance : 50Ω
    • Output VSWR : less than 2.0
    • Output Connector : N(J) connector
  • Options
    • DTF Adapter MA430 The distance to discontinuity point of a cable and the length of a normal cable can be measured.
    • VSWR Bridge MVS300B Return loss of electronic parts or circuit can be measured.
