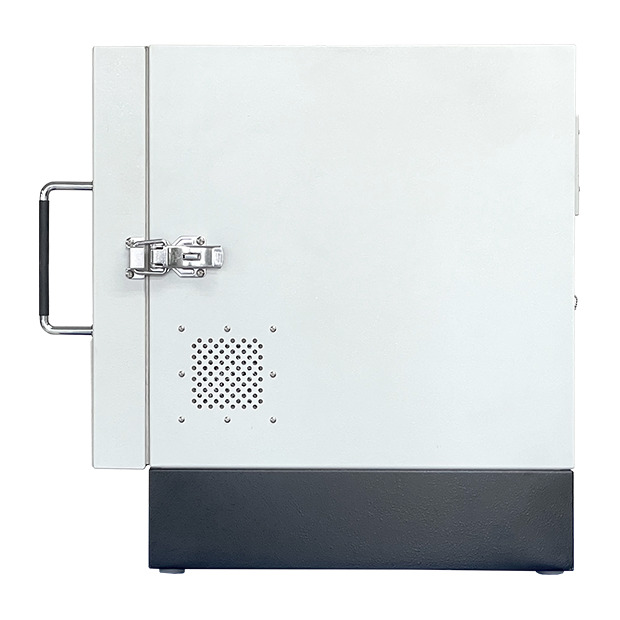

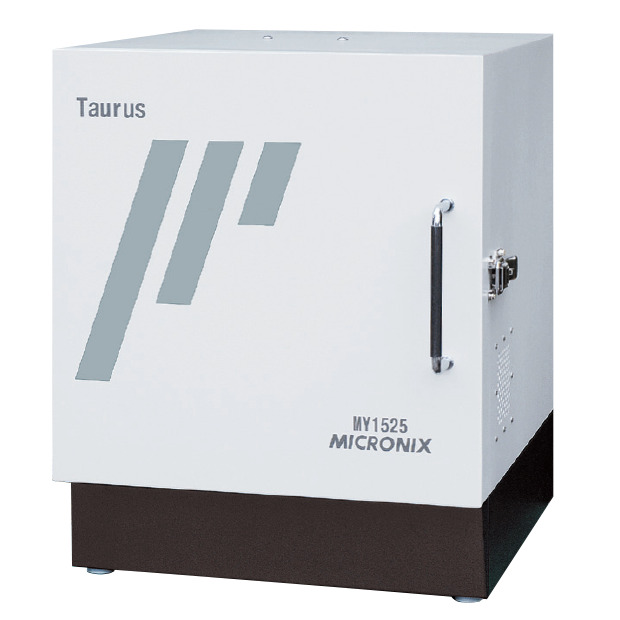

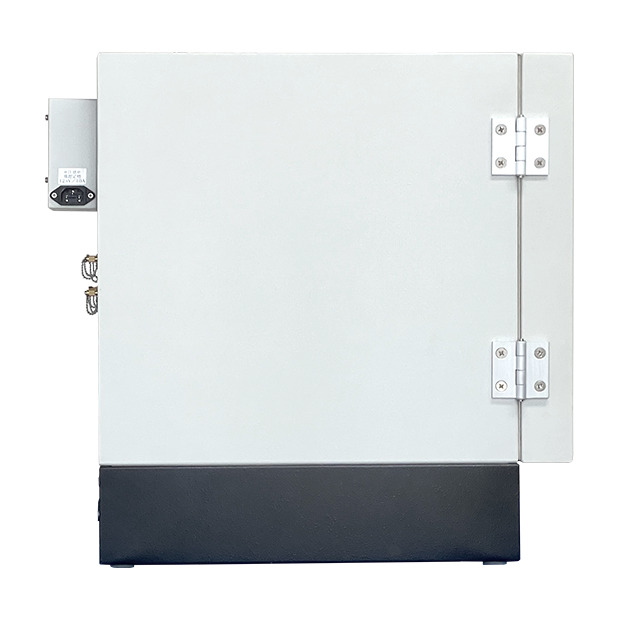

Electromagnetic Anechoic Box /Shield Box Taurus Series MY1525
With ventilation fan & 90dB shielding.
Specification
| Model | MY1525 |
|---|---|
| Outside Dimensions | 460(W)×570(H)×582(D)mm |

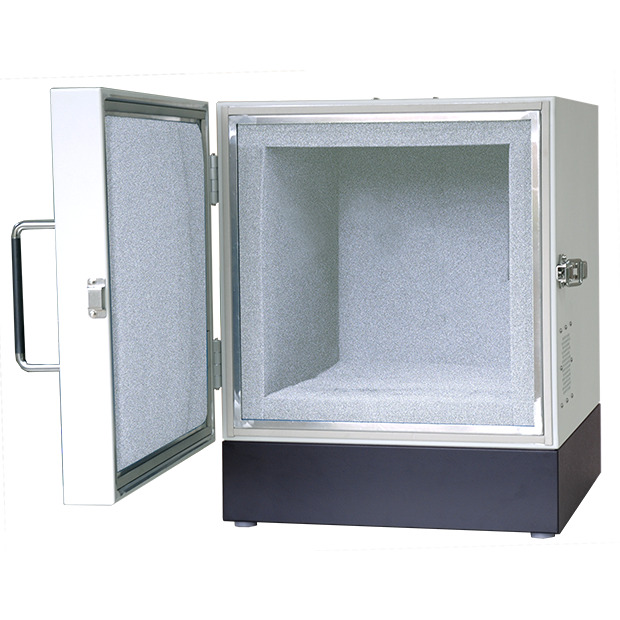

| Inside Dimensions | 340(W)×340(H)×400(D)mm |
| Weight | 17kg |
| Shielding Characteristics(typ) | more than 90dB typ＠2.4GHz |
| Reflection Loss | more than 20dB（MYA-77:≧1.2GHz） |

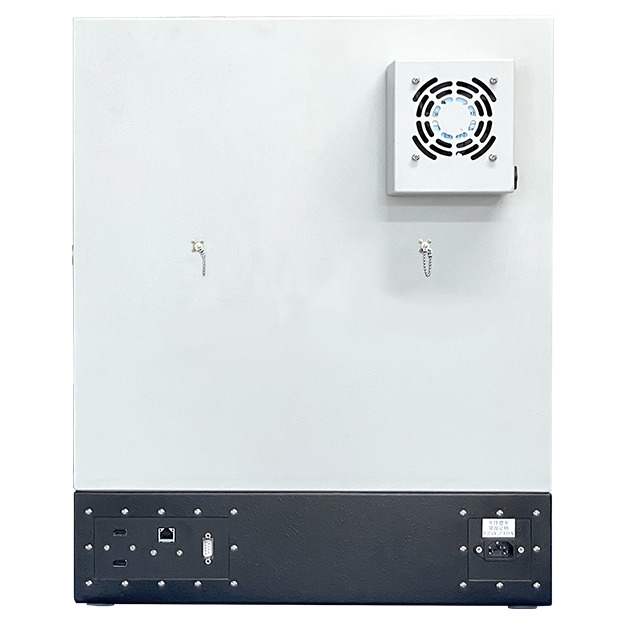

| AC Fan | 0.56m³/min (the maximum force of the wind) |
| Connectors | 2 pcs of SMA（back） |
| I/F Module installation capacity | 1 module（floor surface） |
| Option | I/F Module |
※Dimensions exclude protrusions, etc. Weights do not include IF modules. Dimensions and weight are approximate.
