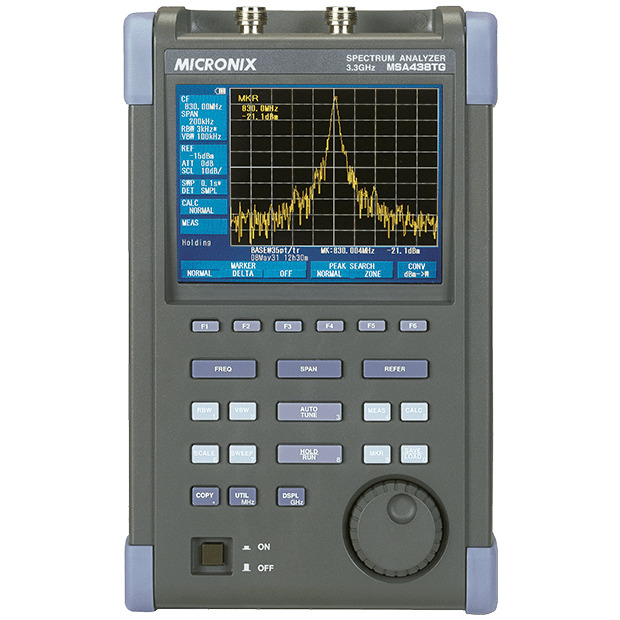

[Discontinued] Handheld Spectrum Analyzer MSA438TG

28/05/2008 22/06/2026

micronix_j

Discontinued

[Discontinued] Handheld Spectrum Analyzer MSA438TG

Discontinued

Built-in TG from 5MHz to 3.3GHz.
Measurement frequency : 50kHz to 3.3GHz

Catalog Contact Us

successor model

Handheld Signal Analyzer MSA538TG

Built-in TG from 5MHz to 3.3GHz
Measurement frequency : 20kHz to 3.3GHz

OPEN

1. Features
2. Recommended Products
3. Library

Features

Measurement Frequency	50kHz to 3.3GHz
Applications	Cellular phone, 2.4GHz wireless LAN, 2.5GHz WiMAX, RF-ID, Broadcasting
Average Noise Level	Average Noise Level:-127dBm＠1GHz Sweep Mode:-117dBm＠cf 1GHz，RBW 3kHz

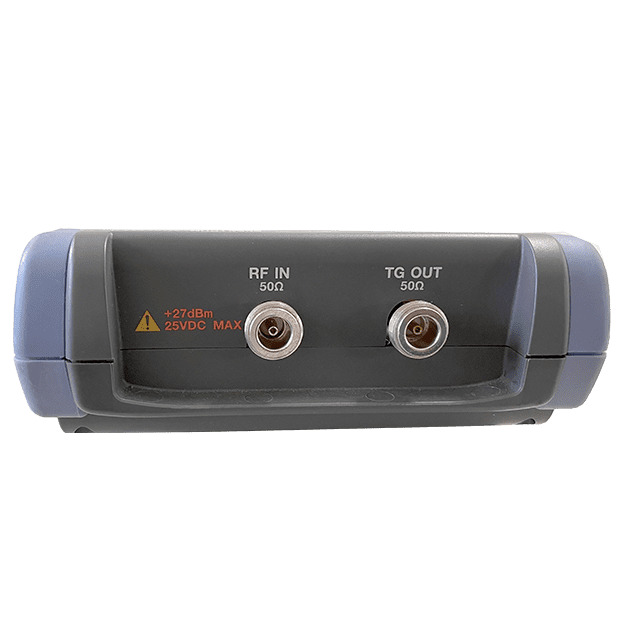

Built-in TG from 5MHz to 3.3GHz	Tracking Generator added to MSA438 enables the measurement and evaluation of amplitude frequency characteristics of filter, amplifier, electronic parts or circuit. Specifications Frequency range : 5MHz to 3.3GHz Output level : -10dBm±1dB@1GHz Output level flatness : ±1.5dB Normalizing function : Compensates input frequency response flat on screen. Output impedance : 50Ω Output VSWR : less than 2.0 Output Connector : N(J) connector Options DTF Adapter MA430 The distance to discontinuity point of a cable and the length of a normal cable can be measured. VSWR Bridge MVS300B Return loss of electronic parts or circuit can be measured.
