ETC / ITS Spot Electric Field Strength Measurement System ME9200C

This system measures the electric field strength distribution of ETC / ITS spots with operating waves or CW in a short time and create electric field strength graphs and map diagrams.This is an upgraded version of the conventional ME9200.※Only for Japanese domestic specifications.

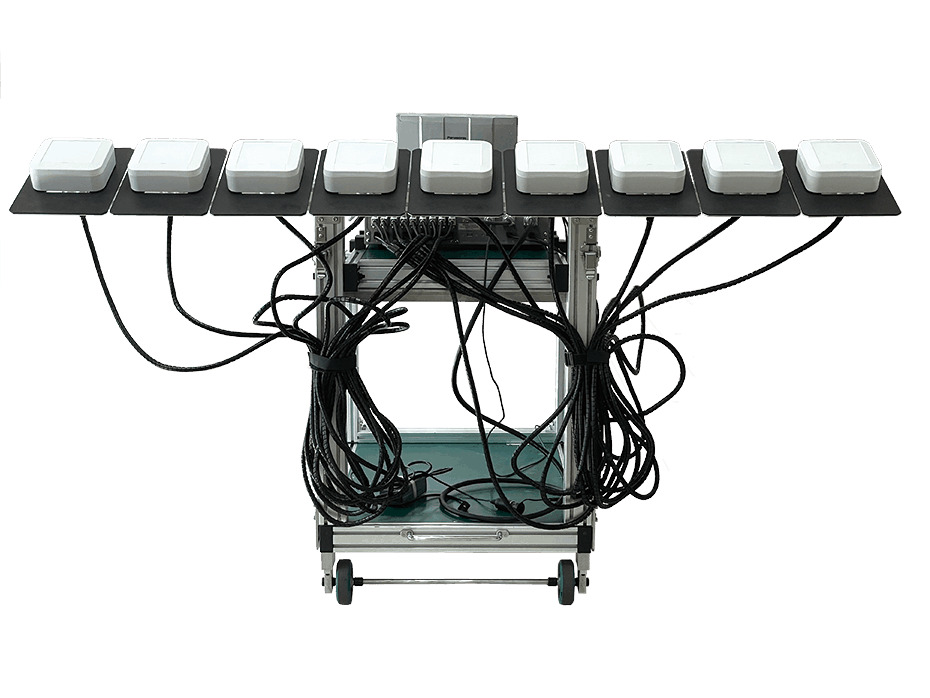

  • Measurement with a cart is possible, and the price of the ETC measurement system (9 antennas) is inexpensive.
  • The electric field strength distribution of the roadside machine installed at the ETC gate of the highway is measured accurately in a short time by CW and operation wave.
  • As an option, the electric field strength measurement function of the ITS spot can be added.
SKU: ME9200C Category:

System overview

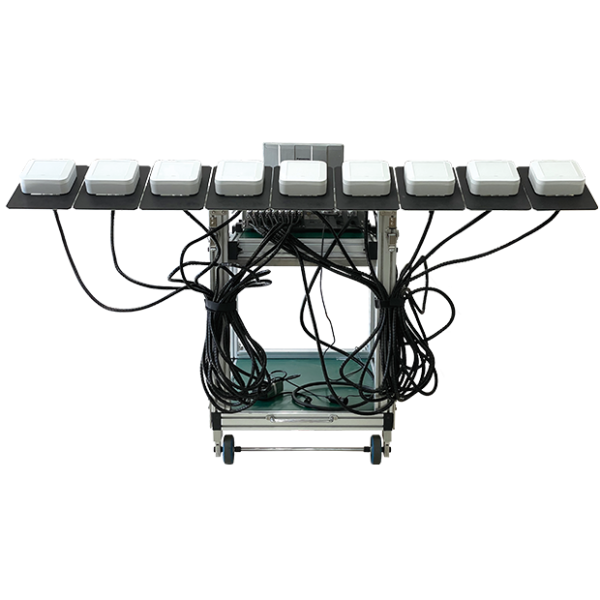

When 9 antennas are attached to the cart type, the 3.2m wide lane can be measured twice.

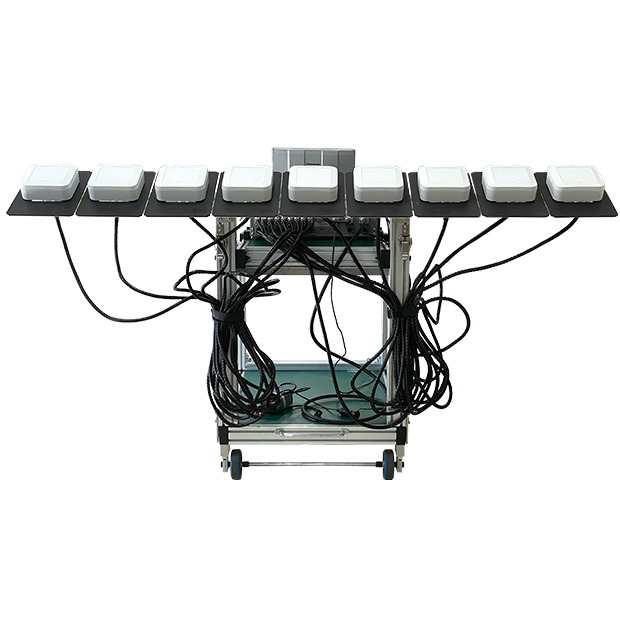

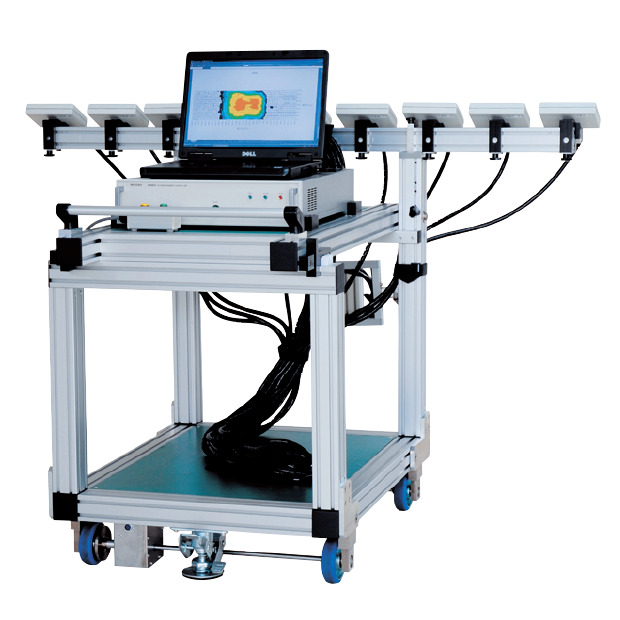

ME9200C overview

Comparison with the conventional ME9200

  • ME9200
    Conventional type:ME9200

  • ME9200C
  • Comparison with the conventional ME9200

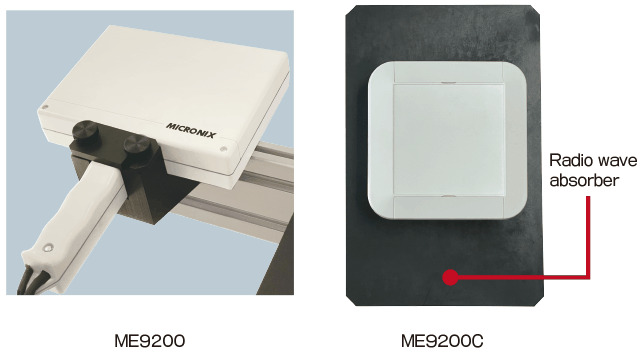

  • The integrated rear radio wave absorber reduces variations in electric field strength due to reflection.
  • Comparison with the conventional ME9200

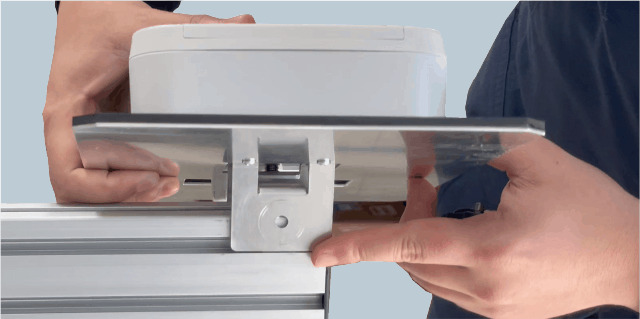

  • Since the antenna unit can be directly attached to the antenna fixing bar, the measurement preparation man-hours are reduced.

ME9200 and ME9200C installation comparison.

※The control unit and software are the same.

System composition

システム構成

System

  ETC ITS Vehicle-mounted Cart Antenna
S11     9
S12   9

○ mark is included in the system

Standard specifications

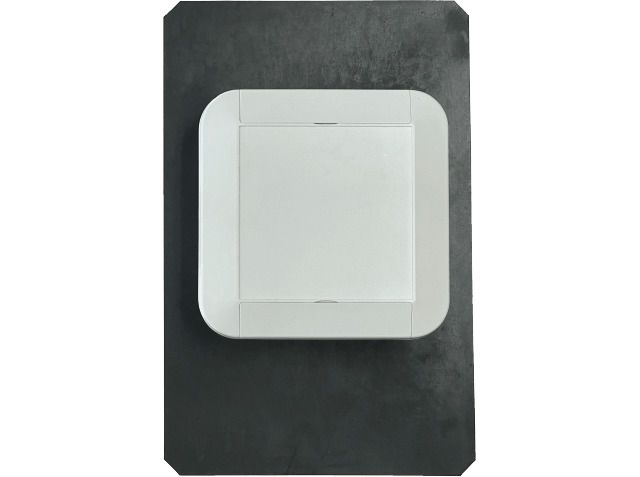

  • ME9200C_Antenna
  • Antenna

    The standard is 9 pieces, and 3.2m wide lanes can be measured twice.≪Antenna spacing 20 cm≫.

    • External dimensions:195(W)×105(D)×300(H)mm(excluding protrusions)

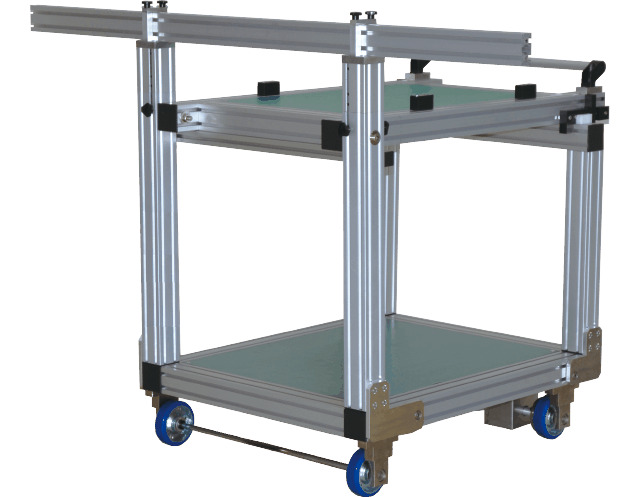

  • ME9200C_Cart
  • Cart

    Equipped with a speed sensor, the measured distance is calculated automatically.
    With 9 antennas installed, 3.2m wide lanes can be measured twice.

    • External dimensions:700(W)×1000(D)×350(H)mm(when folded)
    • External dimensions:700(W)×1000(D)×900(H)mm(when assembled)

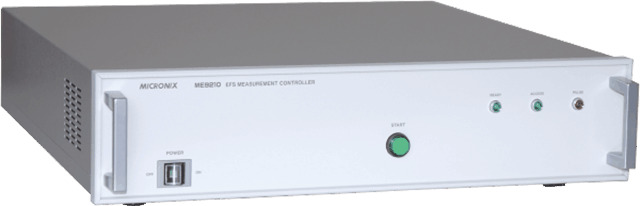

  • ME9200C_Control Unit
  • Control Unit

    It has a start SW and a SW that adjusts the zero point at the roadside machine position.
    Requires DC12V or AC100V power supply. An AC/DC converter is included as standard.

    • External dimensions:430(W)×450(D)×101(H)mm(excluding protrusions)
  • ME9200C_PC Software
  • PC Software

    It controls the control unit and immediately displays the measured electric field strength value in a graph or map diagram.

Electric field strength measurement example

The ME9200 software running on a PC controls the control unit to perform measurements, and automatically collects, analyzes, and displays data.

車線方向グラフ

分布図

※Customization such as vihicle- mounted will be discussed separately.
※CW:Continuous Wave

Option

Product name Description
Trunk for antenna unit A trunk for storing 9 antenna units and a switch box. Useful for storage and transportation.
Trunk for control unit A trunk for storing the control unit and cables. Useful for storage and transportation.
Laptop for control Includes software installation work for 15.6-inch LCD, Windows10 Home, Excel2019, ME9200.
Two-wave simultaneous measurement function It is a function that measures the specified two frequencies at the same time in one run.
