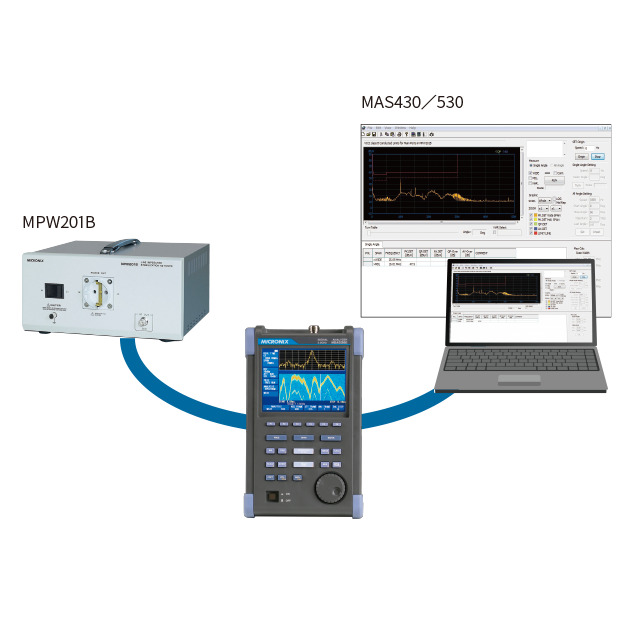

Conducted EMI Test System MR2150
Pre-compliance test system for conducted EMI.
The development cost can be significantly reduced by debugging and evaluating EUT using this system before testing in the formal EMC site.
- 1. Features
- 1.1. Pre-compliance test system with superior cost performance
- 1.2. Spectrum/signal analyzer
- 1.3. High efficiency EMI test by rich software functions
- 1.4. The most inexpensive LISN with good portability
- 2. Test example
- 2.1. EMI test example of a sample EUT(switching power supply)
- 3. Test scene(image)
- 4. Related products
- 5. Library
- 5.1. Products Catalog
Features

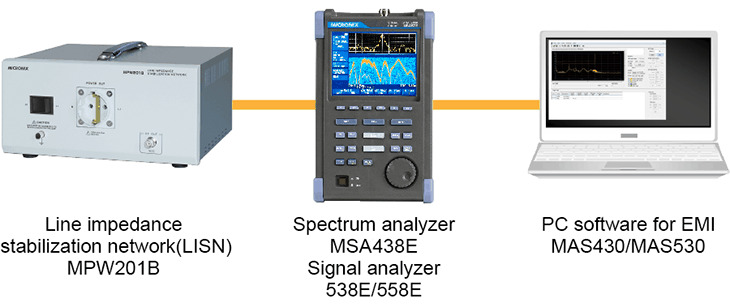

Pre-compliance test system with superior cost performance
Operating stability and usability of this system are fully confirmed because all of components consisting of spectrum/signal analyzer, LISN and PC software have been developed by ourselves. Additionally, each price of those pieces is very reasonable. EMI test environment with superior cost performance is offered.
Spectrum/signal analyzer
Spectrum/signal analyzer can be selected according on budgets and performance / function.
Handheld Signal Analyzer MSA538E
This is a model in which EMI measurement function is added to MSA538.
Measurement frequency : 20kHz to 3.3GHz
Handheld Signal Analyzer MSA558E
This is a model in which EMI measurement function is added to MSA558.
Measurement frequency : 20kHz to 8.5GHz
Handheld Spectrum Analyzer MSA438E
This is a model in which EMI measurement function is added to MSA438.
Measurement frequency : 50kHz to 3.3GHz
High efficiency EMI test by rich software functions
PC software for EMI can correct insertion loss of LISN and cable.
Also, in the auto-sequence mode, PK(peak) over specified level is picked up in wide band and then QP(quasi peak) and AV(average) of chosen spectra are precisely measured in narrow band.
Therefore, the mesuring time is greatly shortened.
The most inexpensive LISN with good portability
Our LISN is the most inexpensive although it is equipped with a built-in transient limiter and is more portable, compact and lightweight than others.
Good portability of the LISN and MSA series provides better EMI test environment in a limited space.
Line Impedance Stabilization Network(LISN) MPW201B
A test environment can be easily constructed in a limited space.
LISN is necessary to perform stably and reproducible disturbance noise measurement.
The impedance of the power source observed from EUT side is made constant by inserting LISN in the power supply line.
Test example
EMI test example of a sample EUT(switching power supply)

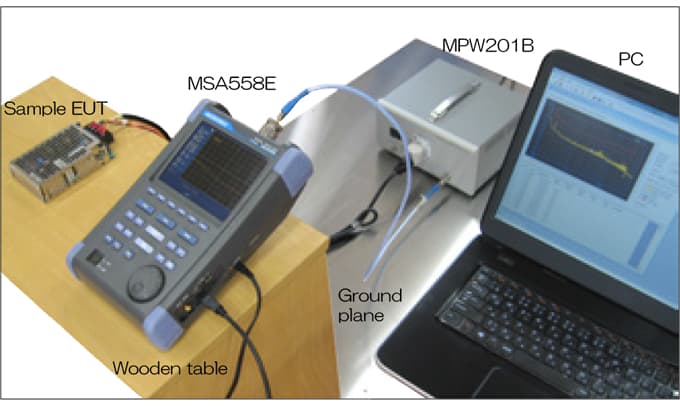

The test results of MR2150(MSA558E, MPW201B) in a non-shielded laboratory and a compliance system at a formal EMC site are shown below.
The differences of QP and AV at the noise peak between the two systems are only within ±3 dB or ±4 dB as shown in figures.
Therefore, finding the source of noise and solving the problems using MR2150 before formal test will reduce the total EMI test cost.
Test scene(image)
Related products
Magnetic Field Probe MMP500
Conducted disturbance noise measurement up to 9kHz low frequency.
This conducted disturbance noise can be easily measured with MMP500 and signal analyzer MSA538E/MSA558E.
