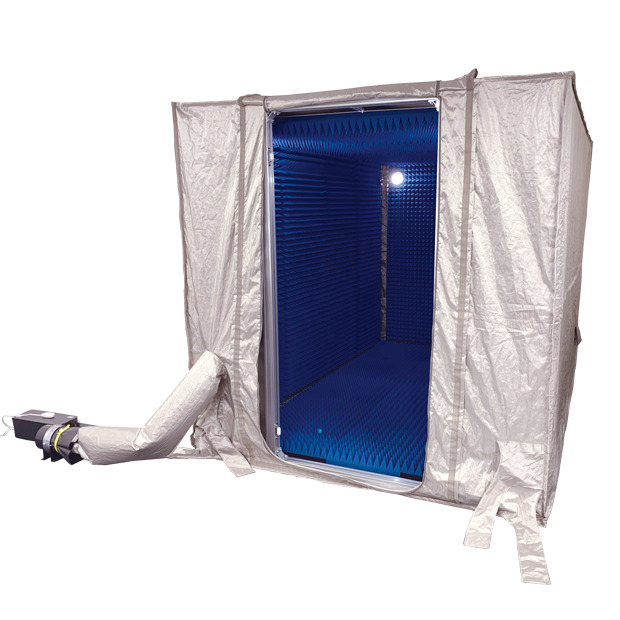

Simple anechoic chamber MY5700
Easy construction of an anechoic chamber.
A simple electromagnetic anechoic chamber that can be widely used for 5G OTA, radio law measures, EMC tests, etc.
We have eight selections of sizes.
Summary
This electromagnetic wave shield tent type simple anechoic box can easily and inexpensively construct an anechoic chamber like a small electromagnetic anechoic box.
Especially for radio law countermeasures, simple EMC test, OTA test (protocol, function, interoperability test, etc.), it is suitable for cases where ultra-high accuracy RF characteristic test and antenna evaluation are not performed. It is the best product for the needs such as not needing a full-scale electromagnetic anechoic chamber but wanting a simple electromagnetic anechoic chamber.
Feature

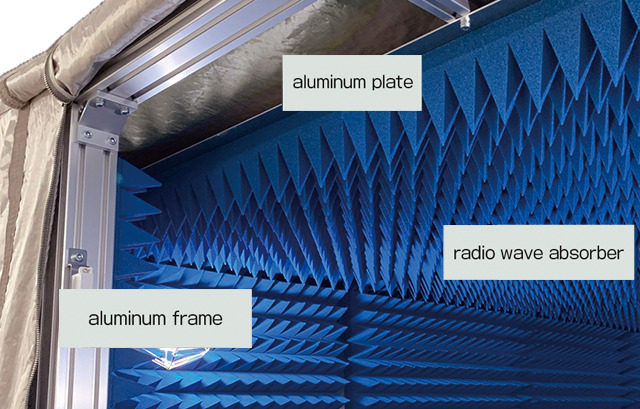

- The radio wave absorber is fixed to the aluminum plate. Since it is different from corrugated plastic bonding, even if the tent shakes due to wind pressure, it will not be affected by reflection.
- Since the radio wave absorber panel is fixed to the aluminum frame, it is possible to secure a large internal effective dimension.

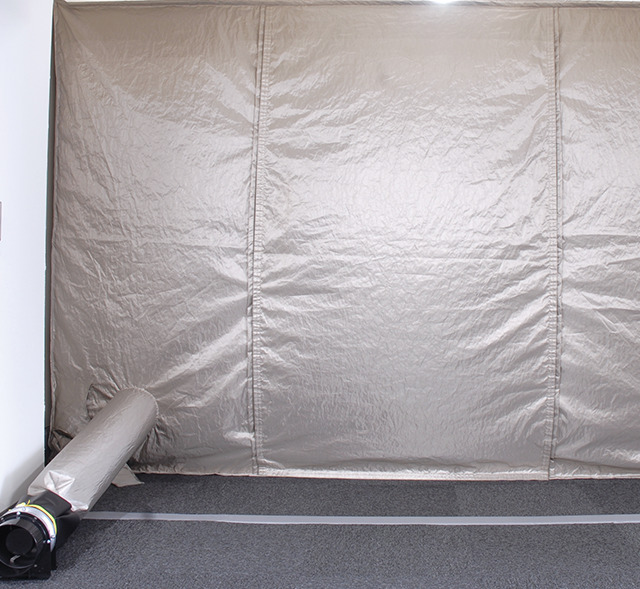

- The shield tent material is a double layer of high-density fabric and has high shielding performance.
- If you purchase only the shield tent first, it will be possible to upgrade to an electromagnetic anechoic chamber in the future.

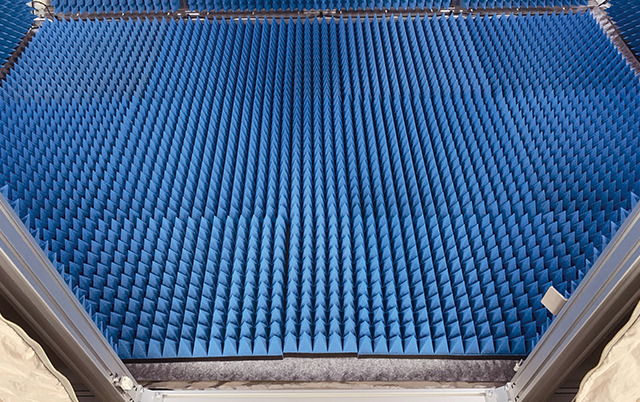

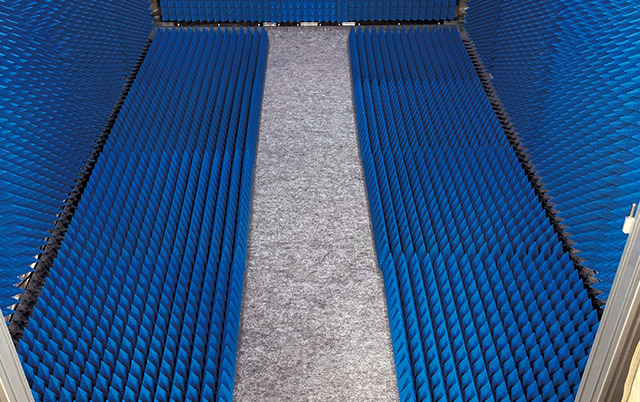

※The radio wave absorber on the floor should be laid where and in as much quantity as needed.
Specifications
| Electromagnetic shield tent | double-woven fabric |
|---|---|

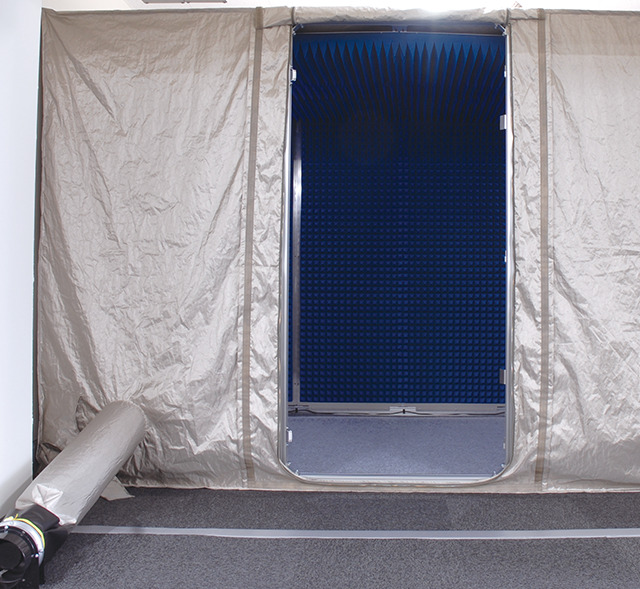

| Exit and entrance | Door dimensions：0.9m(W)×1.6m(H) One front location、Double-layered curtain type structure |

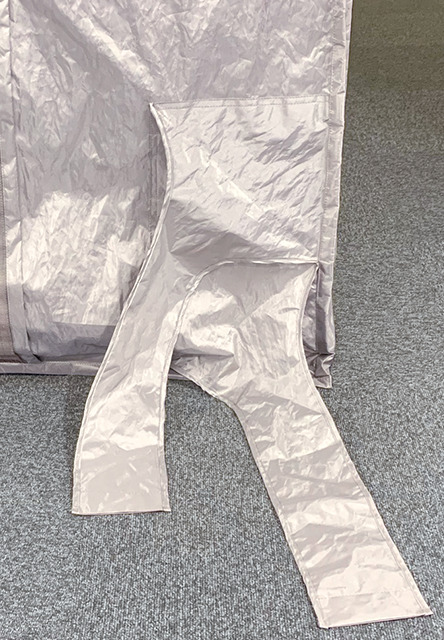

| Cable feed port | φ50mm×4（optional） |
| Shielding effectiveness | 1-6GHz＠60dB 28GHz＠70dB |
| Radio wave absorber |
|
| Reflection loss | 1.4GHz＠20dB 1.9GHz＠30dB >3.5GHz＠40dB |

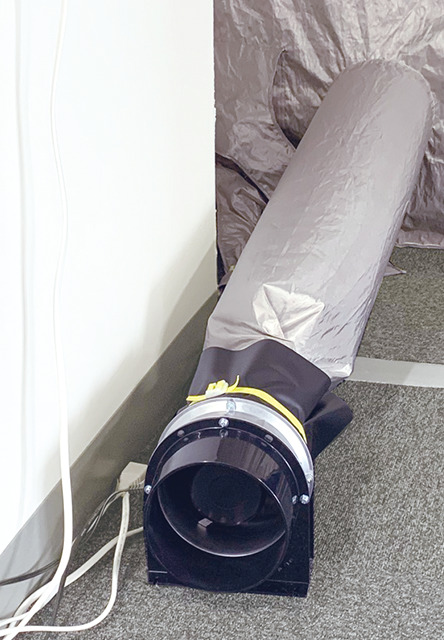

| Air intake and exhaust | Available (with blower) |
| Interior floor treatment | Punch carpet |
| Lighting | LED clip lamps×4 |
※AC100V power supply is required to operate the blower and LED clip light.

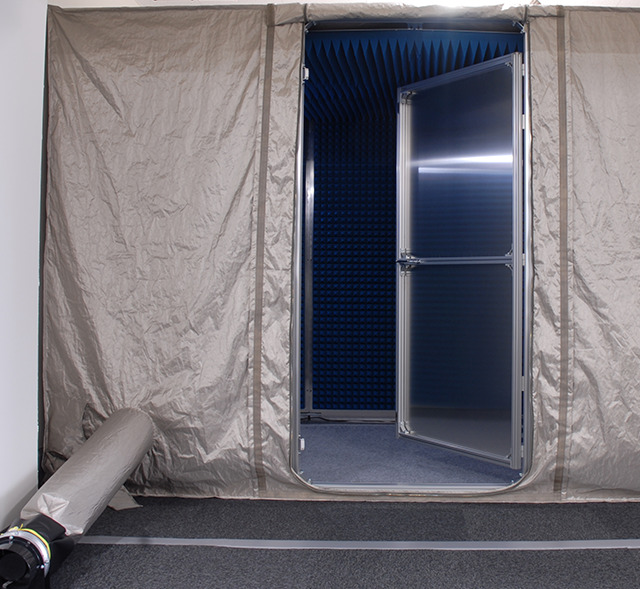

The front door is removable, allowing large equipment to be carried in.
Size lineup (8 types)
| Model | External Dimensions（W×H×D） | Internal dimensions（W×H×D） | Weight |
|---|---|---|---|
| MY5722 | 2m×2m×2m | 1.67m×1.73m×1.67m | 170kg |
| MY5723 | 2m×2m×3m | 1.67m×1.73m×2.67m | 280kg |
| MY5724 | 2m×2m×4m | 1.67m×1.73m×3.67m | 335kg |
| MY5725 | 2m×2m×5m | 1.67m×1.73m×4.67m | 420kg |
| MY5732 | 3m×2m×2m | 2.67m×1.73m×1.67m | 255kg |
| MY5733 | 3m×2m×3m | 2.67m×1.73m×2.67m | 355kg |
| MY5734 | 3m×2m×4m | 2.67m×1.73m×3.67m | 425kg |
| MY5735 | 3m×2m×5m | 2.67m×1.73m×4.67m | 525kg |
- The standard price includes 6 radio wave absorbers.
- The radio wave absorber on the floor is not fixed.
- The internal height when the absorber is removed is about 1.83m.
- In addition to the standard price, there will be costs for material delivery and worker transportation expenses.
- These prices do not include tax. Tax will be added to these prices.
※Dimensions exclude protrusions, etc. Weights do not include IF modules. Dimensions and weight are approximate.
Steps to Installation
- Consultation (Customer ⇒ MICRONIX)
- On-site survey and meeting (MICRONIX ⇒ Customer)
- Determination of specifications and presentation of quotation（MICRONIX ⇒ Customer）
- Order（Customer ⇒ MICRONIX）
- Issuing an order（MICRONIX）
- Installation work, shield performance inspection（MICRONIX）
