Electromagnetic Anechoic Box /Shield Box Production line type MY4620
Auto-open/close type shield box (anechoic box) equipped with an electric automatic carrier.Contributes to automation of production lines, Reduction of the burden of opening and closing for workers, Reduction of tact time
Specification
Outside Dimensions (main body)) | 480(W)×480(H)×486(D)mm *excluding projections |
---|---|
Inside Dimensions | approx. 400(W)×400(H)×410(D)mm *excluding projections |
Maximum Outside dimensions (including base) | 480(W)×570(H)×972(D)mm |
Transport section opening dimensions | 220(W)×200(H)mm |
EUT allowable dimensions | ≤200(W)×140(H)×140(D)mm |
EUT allowable weight | ≤2kg |
Main Material (main body) | Stainless |
Main material (EUT transfer table) | POM |
Structure | Double structure of stainless steel plate and radio wave absorber |
Weight | approx. 47kg |
Shielding Characteristics | ≥60dB@2.4GHz |
Radio wave absorber | MYA-75 (thickness approx. 3cm) |
Shielding Characteristics(typ) | ≥20dB@2.4GHz |
Connectors |
|
IF(For EUT) |
|
Conveyance section |
|
Features

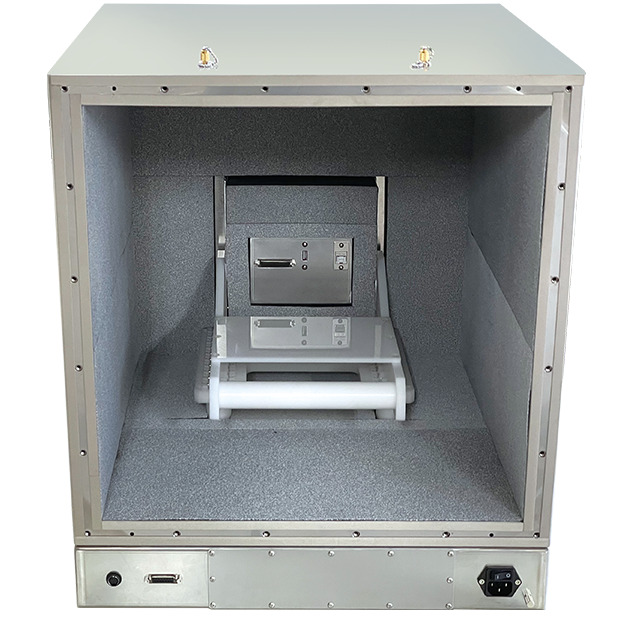

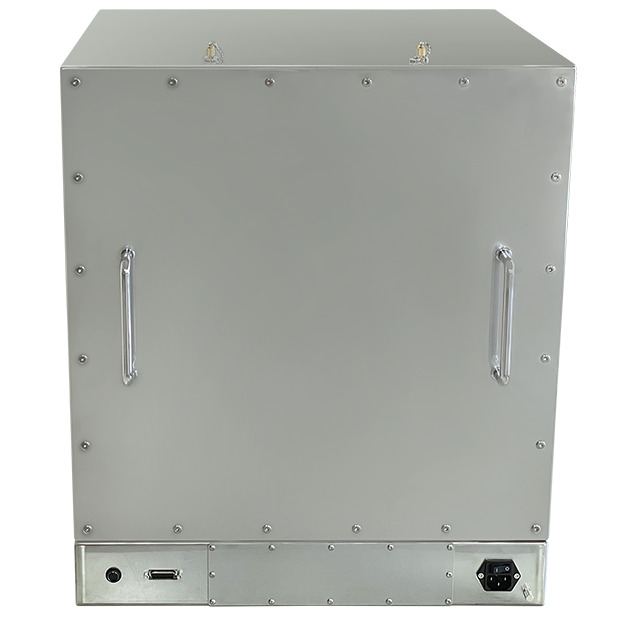

Back side

- The shield box can be opened and closed automatically by a control PC or PLC.
If the optional control box (MY4620-CB) is used, it can be opened and closed using push buttons. - Compared with the air cylinder type, the positioning accuracy is higher and the parameter setting is easier. (For parameter setting, use the TB-02 teaching box manufactured by IAI.)
- The rear side is a full maintenance panel for easy adjustment and removal of jigs and other equipment.

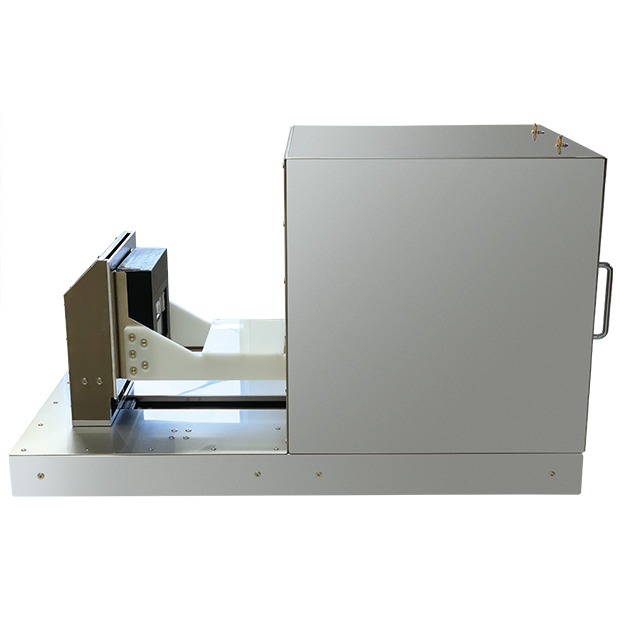

Each part

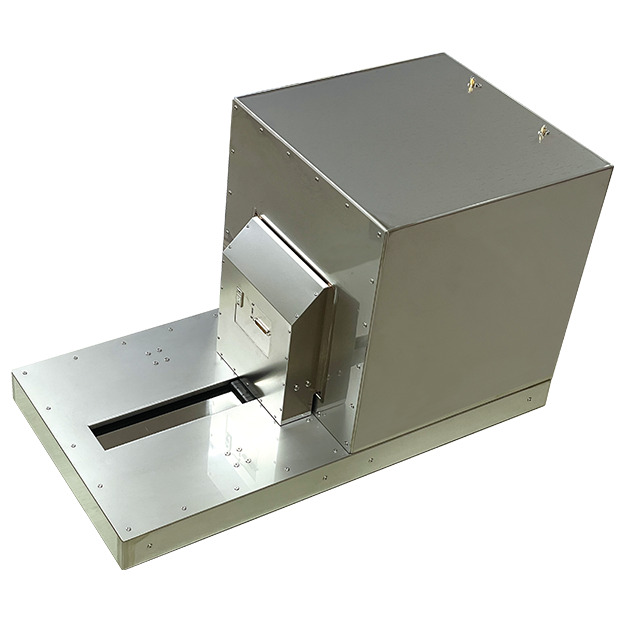

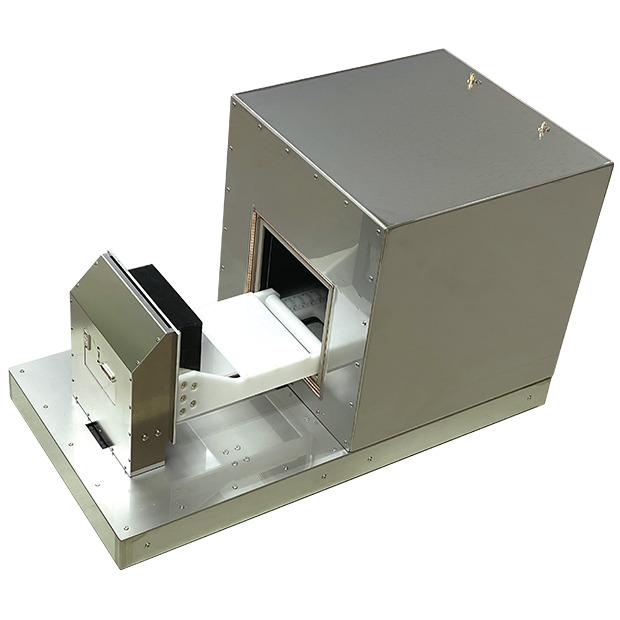

Demonstration
Option
Radio wave absorber surface treatment (blue jersey) MY4620-BJ
Prevents rags and carbon powder from sticking to the EUT.

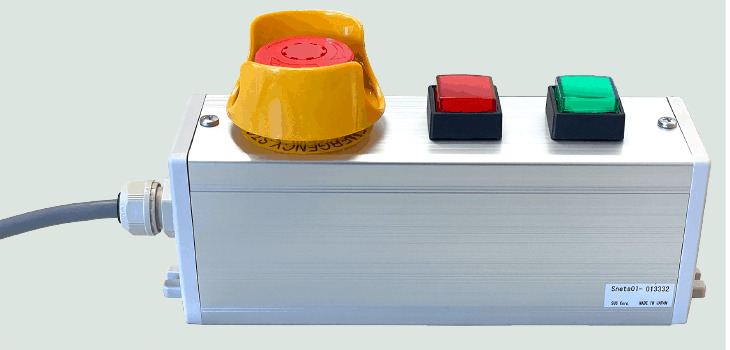

Control Box MY4620-CB
This is a controller for automatic opening and closing by push button station.

Customize
- Antenna fixing jig (internal top surface)
- EUT fixing jig
- Addition of connectors and interfaces
Reference
Teaching Box TB-02 (manufactured by IAI)
This controller is used to adjust the electric slider.
