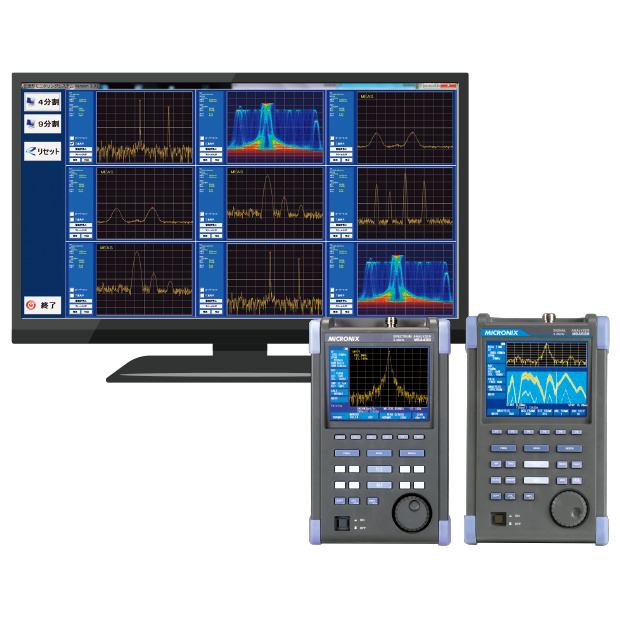

Multiwindow waveform monitor MW4500
Suitable for signal monitoring in broadcasting station and radio relay station.
Split-screen display of max 9 channels of signals captured with spectrum analyzer.
- 1. Features
- 1.1. Split one large display into maximum nine channels.
- 1.2. It is possible to specify the input channel to be displayed.
- 1.3. Monitoring work becomes more efficient.
- 1.4. Signal quality can be observed at a glance.
- 1.5. Handheld Spectrum Analyzer

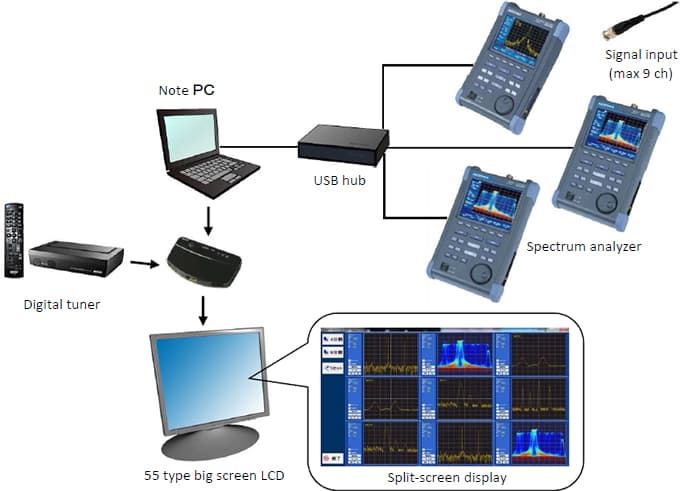

- 2. System image
- 3. Specifications of spectrum analyzer
- 3.1. Lineup
- 4. Library
- 4.1. Products Catalog
Features
Split one large display into maximum nine channels.
Since the signal quality needs to be monitored watching many displays in the existing monitoring system, system price is more expensive.
By using the multiwindow waveform monitor, maximum nine channels of spectrum waveforms can be simultaneously displayed on one screen.
It is possible to specify the input channel to be displayed.
The number of split screen is 1, 4 and 9 screens and the input channel to be displayed can be specified.
Monitoring work becomes more efficient.
Since multiple waveforms can be displayed on one display, the monitoring work becomes more efficient.
Signal quality can be observed at a glance.
By displaying in piles the reference waveform measured before, the degradation of signal quality can be observed at a glance.
Handheld Spectrum Analyzer
Since spectrum analyzer enables battery operation, the system can be constructed in isolation from other power supply.
System image
Specifications of spectrum analyzer
| Items | MSA438 | MSA458 | MSA538 | MSA558 |
|---|---|---|---|---|
| Frequency range | 50kHz to 3.3GHz | 50kHz to 8.5GHz | 20kHz to 3.3GHz | 20kHz to 8.5GHz |
| Frequency span | 0, 100kHz to 2GHz, Full | 0, 100kHz to 5GHz, Full | 0, 20kHz to 2GHz, Full | 0, 20kHz to 5GHz, Full |
| RBW | 3kHz to 3MHz | 300Hz to 3MHz | ||
| VBW | 100Hz to 1MHz | |||
| SSB phase noise | -90dBc/Hz@100kHz offset | -95dBc/Hz@100kHz offset | ||
| Average noise level | -127dBm＠1GHz | -140dBm@1GHz | -135dBm@1GHz | |
| Input damage level | +27dBm, 25VDC | |||
| Iinput connectors | N(J) | |||
| Battery operation | Available(Option) | |||
| Operating temperature | 0 to 50℃ | |||
| Power consumption | approx.15W | approx.13W | ||
| Weight | approx.1.8kg | |||
Lineup
Handheld Spectrum Analyzer MSA438
The most popular model in MSA 400 series.
Measurement frequency : 50kHz to 3.3GHz
Handheld Spectrum Analyzer MSA458
Almost all of the applications of wireless communication systems are covered.
Measurement frequency : 50kHz to 8.5GHz
Handheld Signal Analyzer MSA538
The most popular model of the MSA500 series.
Measurement frequency : 20kHz to 3.3GHz
Handheld Signal Analyzer MSA558
Almost all of the applications of wireless communication systems are covered.
Measurement frequency : 20kHz to 8.5GHz
Library
Products Catalog
Please feel free to contact us.
If you want to verify 5G, customize a radio wave shield box, or need product repair, please do not hesitate to contact us about any small matter.
