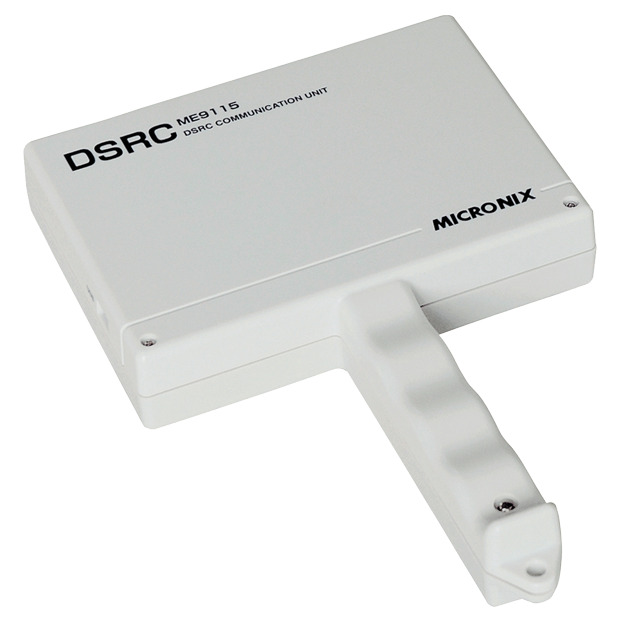

DSRC Communication Unit ME9115

Making it possible to read WCN of OBE and to measure electric field strength of OBE and RSU.

  • SUPPORTING ETC AND ITS SPOT
  • Save each 100 data of WCN and electric field strength and load on screen.
  • Transfer the save data to PC via USB communication.
  • There is no troublesome operation because of only one multidirectional switch.
SKU: me9115 Category: Tag:

Table of Contents

Features

Instrument description

The DSRC communication unit has four models as shown in the table below. Roughly, it can be classified into reading of WCN and electric field strength measurement. It also has the functions of save/load of data and USB communication.

Model Function
ME9115A Read WCN of On-board equipment (OBE) and display 12 digit ID number.
ME9115C Measure the electric field strength of roadside unit (RSU) and OBE.
ME9115A+C Compound instrument of ME9115A and ME9115C.
ME9115CN Measure the electric field strength of RSU with the traveling vehicle. That of OBE can also be measured.

Reading of WCN

ME9115A and ME9115A+C have reading of WCN function. The following is a screen in which WCN is displayed. It can be applied to the parking lot management system and the visitor management system of automobile dealer.

Reading of WCN

Electric field strength measurement

ME9115C, ME911 A+C and ME9115CN have the electric field strength measurement function. It is possible to measure the electric field strength of RSU and OBE.
The following is a screen in which the electric field strength is displayed.

Electric field strength measurement screen

DSRC communication unit ME9115 illustration
