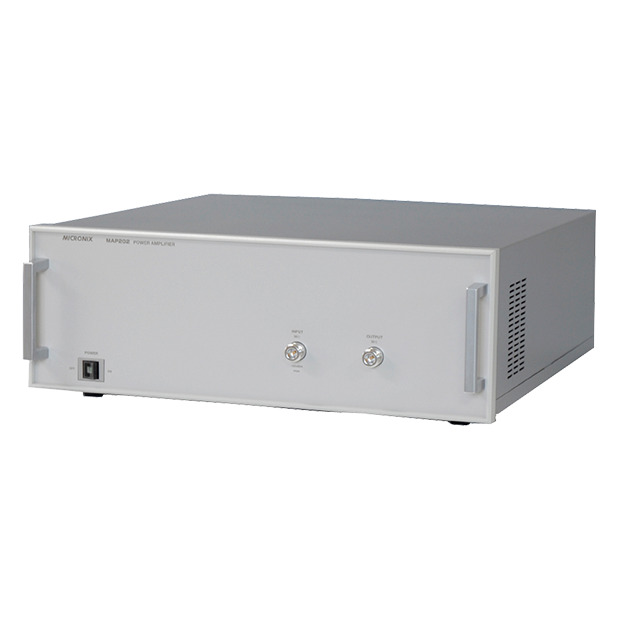

Power Amplifier MAP202
Power amplifier MAP202 Gain approx.45dB, Frequency range 80 to 1000MHz. 20W Power amplifier.
Product Description
| Frequency range | 80 to 1000MHz |
|---|---|
| Gain | 46dB typ ＠ 80 to 600MHz 44.5dB typ ＠ 600 to 1000MHz |
| 1dB compression level | 42.5dBm typ ＠ 80 to 600MHz 41dBm typ ＠ 600 to 1000MHz |
| Input VSWR | less than 2.0 |
| Output VSWR | less than 5.5 |
| Maximum input level | +20dBm |
| Modulation output | 50Ω |
| Input/Output connectors | N (J) @ INPUT, OUTPUT |
| Power supply voltage | 100 to 240VAC, 50 to 60Hz |
| Power consumption | approx. 80VA @ maximum output |
| Dimensions | 430(W)×150(H)×440(D)mm (excluding projections） |
| Weight | approx. 10kg |
